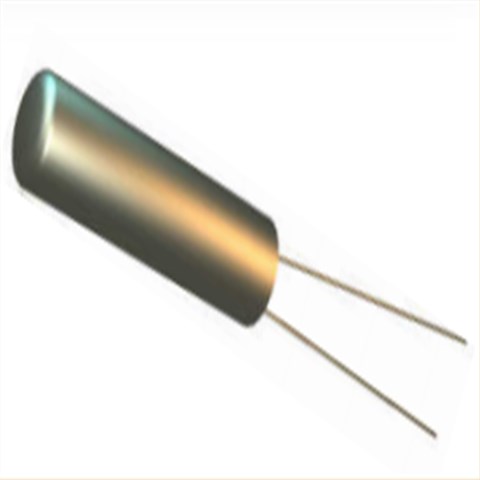

32.768KHz,WC38F-32.768KHZ,WC38,3x8mm,Mmdcomp插件晶振,美国进口晶振,MMD晶振,Mmdcomp麦迪康晶振,型号:WC38,编码为:WC38F-32.768KHZ,精度:±20ppm,频率为:32.768KHz,负载:12.5pF,工作温度范围广:-20℃至+70℃,小体积晶振尺寸:3.0x8.0mm,音叉晶振,插件晶体,圆柱晶振,石英晶振,无源晶振,直脚插件晶振,石英晶体谐振器,无铅环保晶振。具有小型紧凑型,高品质晶振,高质量等特点,符合RoHS标准。应用于:通讯设备晶振,无线蓝牙模块,时钟晶振,钟表电子晶振,电脑主板,数字电子设备,智能家居等应用。
32.768KHz,WC38F-32.768KHZ,WC38,3x8mm,Mmdcomp插件晶振,产品特点:
标准圆柱形支架
频率:32.768KHz石英晶振
符合RoHS标准

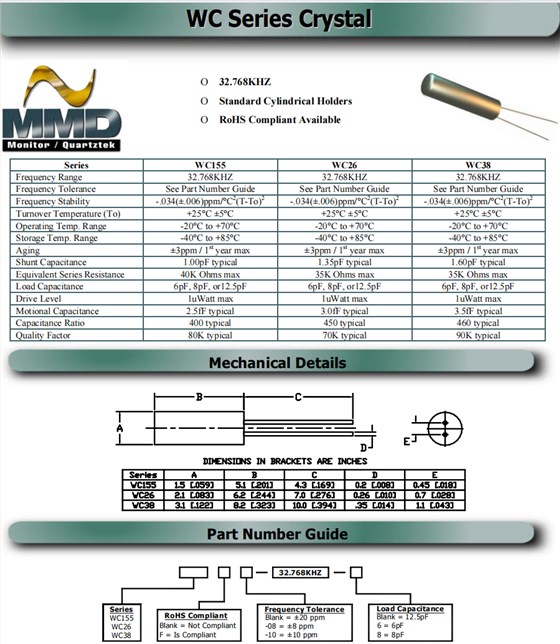

32.768KHz,WC38F-32.768KHZ,WC38,3x8mm,Mmdcomp插件晶振,参数表
Series
WC155
WC26
WC38
Frequency Range
32.768KHZ
32.768KHZ
32.768KHZ
Frequency Tolerance
See Part Number Guide
See Part Number Guide
See Part Number Guide
Frequency Stability
-.034(±.006)ppm/°C2(T-To)2
-.034(±.006)ppm/°C2(T-To)2
-.034(±.006)ppm/°C2(T-To)2
Turnover Temperature (To)
+25°C ±5°C
+25°C ±5°C
+25°C ±5°C
Operating Temp. Range
-20°C to +70°C
-20°C to +70°C
-20°C to +70°C
Storage Temp. Range
-40°C to +85°C
-40°C to +85°C
-40°C to +85°C
Aging
±3ppm / 1styear max
±3ppm / 1styear max
±3ppm / 1styear max
Shunt Capacitance
1.00pF typical
1.35pF typical
1.60pF typical
Equivalent Series Resistance
40K Ohms max
35K Ohms max
35K Ohms max
Load Capacitance
6pF, 8pF, or12.5pF
6pF, 8pF, or12.5pF
6pF, 8pF, or12.5pF
Drive Level
1uWatt max
1uWatt max
1uWatt max
Motional Capacitance
2.5fF typical
3.0fF typical
3.5fF typical
Capacitance Ratio
400 typical
450 typical
460 typical
Quality Factor
80K typical
70K typical
90K typical

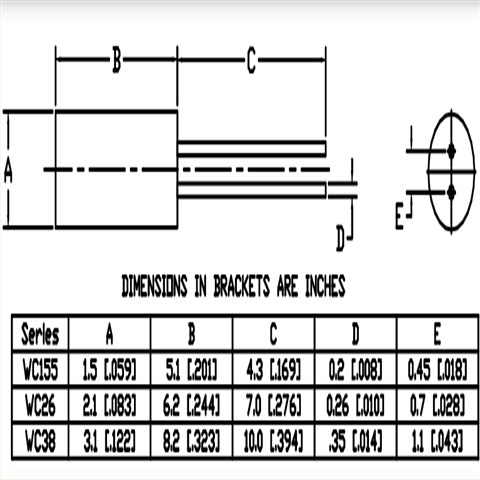

32.768KHz,WC38F-32.768KHZ,WC38,3x8mm,Mmdcomp插件晶振,尺寸图
