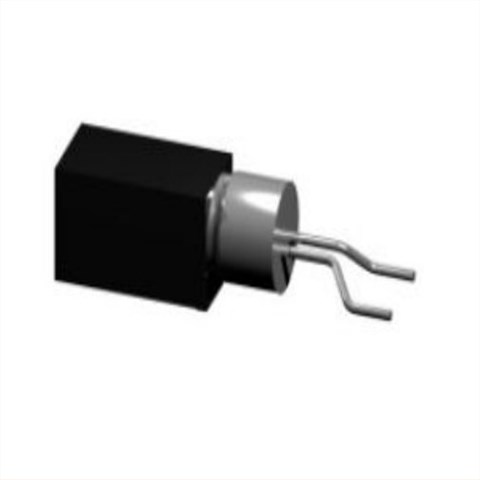

WC26SMFC-32.768KHZ-T,2x6mm,WC26SM,Mmdcomp陶瓷晶振

LH-1

CTS-1

WC26SMFC-32.768KHZ-T,2x6mm,WC26SM,Mmdcomp陶瓷晶振，美国进口晶振，MMD晶振，Mmdcomp晶振，麦迪康晶振，产品编码为：WC26SMFC-32.768KHZ-T，型号：WC26SM，精度：±10ppm，频率为：32.768KHz，负载：12.5pF，工作温度范围广：-40℃至+85℃，小体积晶振尺寸：2.0x6.0mm，插件晶体，石英晶振，无源晶振，石英晶体，弯脚插件晶振，石英晶体谐振器，无铅环保晶振。具有小型紧凑型，高性能晶振，耐热及耐环境特点，符合RoHS。应用于：通讯设备晶振，蓝牙模块，时钟晶振，仪器仪表设备，电脑主板，数字显示设备，智能家居等应用。

WC26SMFC-32.768KHZ-T,2x6mm,WC26SM,Mmdcomp陶瓷晶振，产品特点：

表面安装式时钟晶体
频率：32.768KHz，小型紧凑型
符合RoHS

LH-2

CTS-2

WC26SMFC-32.768KHZ-T,2x6mm,WC26SM,Mmdcomp陶瓷晶振,参数表

Frequency		32.768 kHz
Tolerance at +25°C		See Part Number Guide for Options
Stability		-0.034 ppm (±0.006)/C°2
Aging		±5 ppm/ yr
Shunt Capacitance		1.5 pF
Load Capacitance		12.5 pF Typ (6pF Option)
Motional Capacitance		0.003 pF TYP
Operating Temperature		-40°C to +85°C
Storage Temperature		-40°C to +85°C
Equivalent Resistance		50k Ohms Max
Drive Level		1 µW Max
Temperature Coefficient		0.04 ppm / ° C
Insulation Resistance		500 Mega ohms Min / DC 100 V
Shock Resistance		±5 ppm Max (Drop test 3 times on a hard board from 75 cm)

LH-3

ECS-1

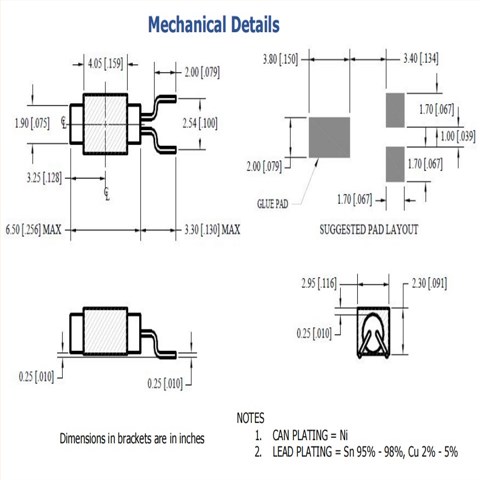

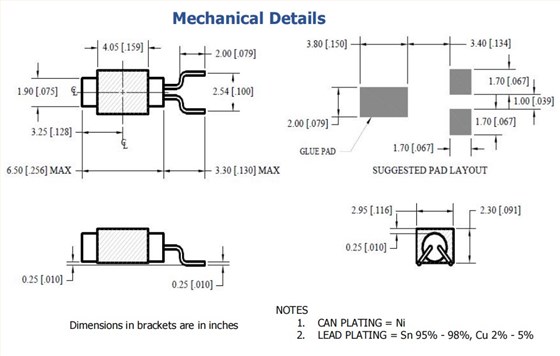

WC26SMFC-32.768KHZ-T,2x6mm,WC26SM,Mmdcomp陶瓷晶振,尺寸图

进口晶振	品牌	描述	频率	系列	负载电容
WC146SMF-32.768KHZ-T	Mmdcomp晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	WC146SM	12.5pF
MMC-463F-32.768KHZ-T	Mmdcomp晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	MMC	12.5pF
WC315-32.768KHZ-T	Mmdcomp晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	WC315	12.5pF
DF18CC1-16.000MHZ-T	Mmdcomp晶振	CRYSTAL 16.0000MHZ 18PF SMD	16 MHz	D	18pF
DF18CC1-10.240MHZ-T	Mmdcomp晶振	CRYSTAL 10.2400MHZ 18PF SMD	10.24 MHz	D	18pF
DF18CC1-13.000MHZ-T	Mmdcomp晶振	CRYSTAL 13.0000MHZ 18PF SMD	13 MHz	D	18pF
T10GC1-20.000MHZ-T	Mmdcomp晶振	CRYSTAL 20.0000MHZ 10PF SMD	20 MHz	T	10pF
X10CB1-40.000MHZ-T	Mmdcomp晶振	CRYSTAL 40.0000MHZ 10PF SMD	40 MHz	X	10pF
X10CB1-24.576MHZ-T	Mmdcomp晶振	CRYSTAL 24.5760MHZ 10PF SMD	24.576 MHz	X	10pF
X10CB1-25.000MHZ-T	Mmdcomp晶振	CRYSTAL 25.0000MHZ 10PF SMD	25 MHz	X	10pF
DF18CC1-20.000MHZ-T	Mmdcomp晶振	CRYSTAL 20.0000MHZ 18PF SMD	20 MHz	D	18pF
DF18CC1-24.576MHZ-T	Mmdcomp晶振	CRYSTAL 24.5760MHZ 18PF SMD	24.576 MHz	D	18pF
DF18CC1-18.000MHZ-T	Mmdcomp晶振	CRYSTAL 18.0000MHZ 18PF SMD	18 MHz	D	18pF
DF18CC1-12.000MHZ-T	Mmdcomp晶振	CRYSTAL 12.0000MHZ 18PF SMD	12 MHz	D	18pF
DF18CC1-13.500MHZ-T	Mmdcomp晶振	CRYSTAL 13.5000MHZ 18PF SMD	13.5 MHz	D	18pF
DF18CC1-24.000MHZ-T	Mmdcomp晶振	CRYSTAL 24.0000MHZ 18PF SMD	24 MHz	D	18pF
DF18CC1-12.288MHZ-T	Mmdcomp晶振	CRYSTAL 12.2880MHZ 18PF SMD	12.288 MHz	D	18pF
T10GC1-24.000MHZ-T	无源晶振	CRYSTAL 24.0000MHZ 10PF SMD	24 MHz	T	10pF
T10GC1-19.200MHZ-T	Mmdcomp晶振	CRYSTAL 19.2000MHZ 10PF SMD	19.2 MHz	T	10pF
T10GC1-24.576MHZ-T	Mmdcomp晶振	CRYSTAL 24.5760MHZ 10PF SMD	24.576 MHz	T	10pF
T10GC1-16.000MHZ-T	Mmdcomp晶振	CRYSTAL 16.0000MHZ 10PF SMD	16 MHz	T	10pF
T10GC1-48.000MHZ-T	Mmdcomp晶振	CRYSTAL 48.0000MHZ 10PF SMD	48 MHz	T	10pF
X10CB1-16.000MHZ-T	Mmdcomp晶振	CRYSTAL 16.0000MHZ 10PF SMD	16 MHz	X	10pF
X10CB1-16.3676MHZ-T	Mmdcomp晶振	CRYSTAL 16.3676MHZ 10PF SMD	16.3676 MHz	X	10pF
X10CB1-24.000MHZ-T	Mmdcomp晶振	CRYSTAL 24.0000MHZ 10PF SMD	24 MHz	X	10pF
WC26SMFD-32.768KHZ-T	Mmdcomp晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	WC26SM	12.5pF
WC38F-32.768KHZ	Mmdcomp晶振	2 PIN THROUGH HOLE METAL PACKAGE	32.768 kHz	WC	12.5pF
WC26F-32.768KHZ	Mmdcomp晶振	2 PIN THROUGH HOLE METAL PACKAGE	32.768 kHz	WC	12.5pF
X10CB1-48.000MHZ-T	Mmdcomp晶振	CRYSTAL 48.0000MHZ 10PF SMD	48 MHz	X	10pF
X10CB1-20.000MHZ-T	Mmdcomp晶振	CRYSTAL 20.0000MHZ 10PF SMD	20 MHz	X	10pF
DF18CC1-25.000MHZ-T	Mmdcomp晶振	CRYSTAL 25.0000MHZ 18PF SMD	25 MHz	D	18pF
X10CB1-19.200MHZ-T	Mmdcomp晶振	CRYSTAL 19.2000MHZ 10PF SMD	19.2 MHz	X	10pF
T10GC1-16.3676MHZ-T	Mmdcomp晶振	CRYSTAL 16.3676MHZ 10PF SMD	16.3676 MHz	T	10pF
T10GC1-25.000MHZ-T	Mmdcomp晶振	CRYSTAL 25.0000MHZ 10PF SMD	25 MHz	T	10pF
T10GC1-40.000MHZ-T	Mmdcomp晶振	CRYSTAL 40.0000MHZ 10PF SMD	40 MHz	T	10pF
