WC146SM,WC146SMF-32.768KHZ-T,7015mm,Mmdcomp晶振,美国进口晶振,MMD晶振,Mmdcomp麦迪康晶振,型号:WC146SM,编码为:WC146SMF-32.768KHZ-T,频率为:32.768KHz,负载:12.5pF,精度:±20ppm,小体积晶振尺寸:7.0x1.5x1.4mm陶瓷SMD封装,四脚贴片晶振,无源晶振,石英晶体,SMD晶振,石英晶体谐振器,工作温度范围:-40℃至+85℃。符合RoHS,具有超小型,轻薄型,高性能,高品质,耐热及耐环境特点。应用于:通讯设备晶振,钟表电子晶振,仪器仪表设备晶振,无线蓝牙晶振,平板电脑晶振,智能家居晶振,数码电子等应用。
WC146SM,WC146SMF-32.768KHZ-T,7015mm,Mmdcomp晶振,产品特点:
超低剖面,最大高度1.4mm
频率:32.768KHz
小型紧凑型,石英晶振
非常适合在空间受限的应用中使用
可提供符合RoHS的产品
胶带和卷筒包装

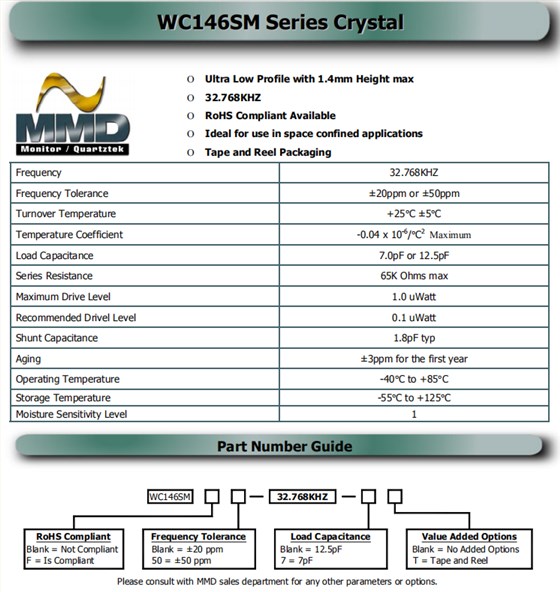

WC146SM,WC146SMF-32.768KHZ-T,7015mm,Mmdcomp晶振,参数表
Frequency
32.768kHz
Frequency Tolerance (at 25°C)
±20ppm Max (See Options)
Turnover Temperature
+25°C ±5°C
Load Capacitance (CL)
12.5pF (See Options)
Equivalent Series Resistance (ESR)
65K Ohms max
Drive Level
1.0 uWatt Max
Operating Temperature
-40°C to +85°C
Storage Temperature
-55°C to +125°C
Shunt Capacitance (Co)
1.8pF typ
Aging
±3ppm/First Year Max
Mode of Operation
Flexural Mode (Tuning Fork)
Frequency Stability
-0.035(±0.01) ppm / (Change in °C)2
Typ, Parabolic Curve
Insulation Resistance
500 Mohms Min (at 100Vdc ±15Vdc)

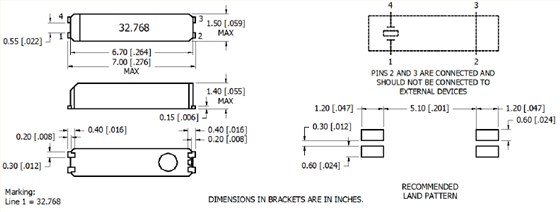

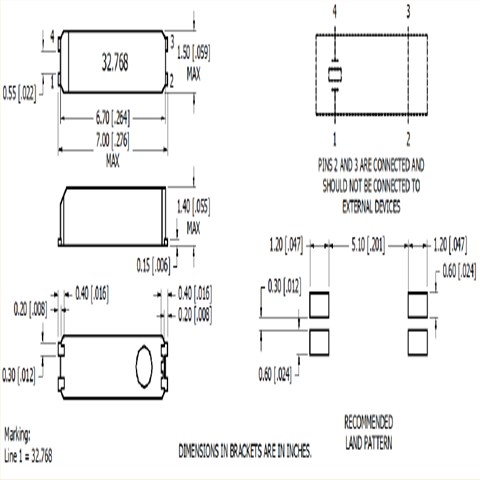

WC146SM,WC146SMF-32.768KHZ-T,7015mm,Mmdcomp晶振,尺寸图
