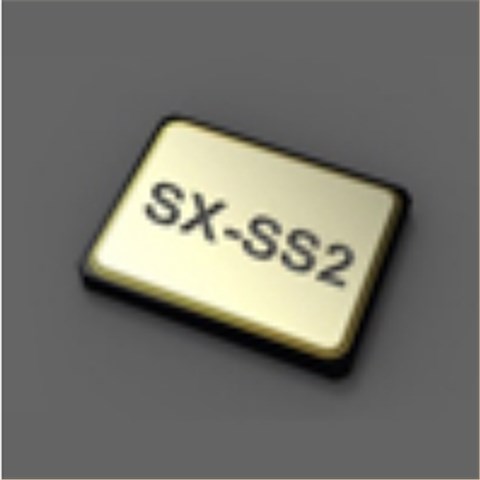

SX-SS2-10-20HZ-32.000MHz-9pF,6G无线通信晶振,新松无源晶振,尺寸为5.0*3.2mm,频率为32MHZ,SHINSUNG Crystal,SHINSUNG贴片晶振,无源贴片晶振,水晶振动子,SMD晶振,无源晶体,小体积晶振,两脚贴片晶振,无源谐振器,微处理器时钟专用晶振,蜂窝无源晶振,以太网晶振,无线通信晶振,数字电视晶振,视频专用晶振,蜂窝电话晶振,高性能晶振,产品具有高性能的特点.
SMD crystal产品很适合用于微处理器时钟,蜂窝,以太网,无线通信,数字电视,视频,蜂窝电话,无线局域网等领域。SX-SS2-10-20HZ-32.000MHz-9pF,6G无线通信晶振,新松无源晶振.

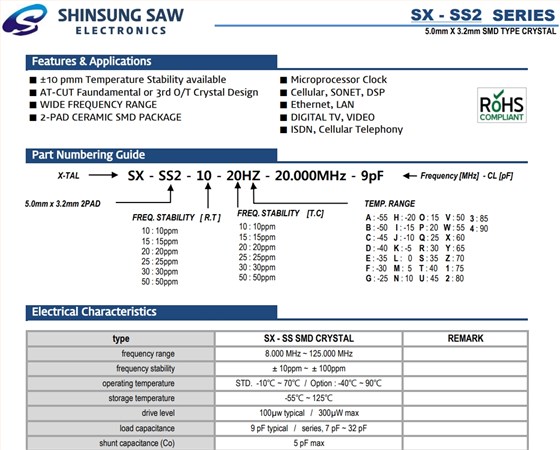

SX-SS2-10-20HZ-32.000MHz-9pF,6G无线通信晶振,新松无源晶振 参数表
type | SX - SS SMD CRYSTAL | REMARK | |||||||||||||||||
frequency range | 32.000 MHz | ||||||||||||||||||
frequency stability | ± 10ppm ~± 100ppm | ||||||||||||||||||
operating temperature | STD.-10℃~ 70℃/Option : -40℃~ 90℃ | ||||||||||||||||||
storage temperature | -55℃~ 125℃ | ||||||||||||||||||
drive level | 100µw typical/300µW max | ||||||||||||||||||
load capacitance | 9 pF typical/series, 7 pF ~ 32 pF | ||||||||||||||||||
shunt capacitance (Co) | 5 pF max | ||||||||||||||||||

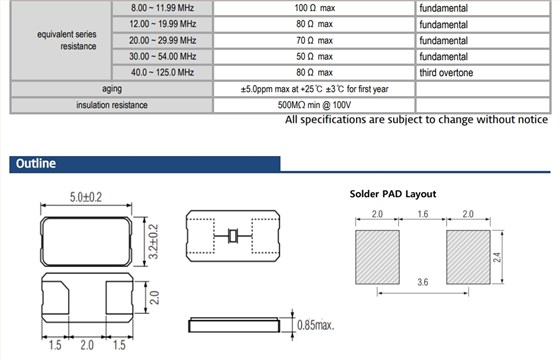

equivalent series resistance |
8.00 ~ 11.99 MHz | 100 Ωmax | fundamental | ||||||||||||||||
12.00 ~ 19.99 MHz | 80 Ωmax | fundamental | |||||||||||||||||
20.00 ~ 29.99 MHz | 70 Ωmax | fundamental | |||||||||||||||||
30.00 ~ 54.00 MHz | 50 Ωmax | fundamental | |||||||||||||||||
40.0 ~ 125.0 MHz | 80 Ωmax | third overtone | |||||||||||||||||
aging | ±5.0ppm max at +25℃±3℃for first year | ||||||||||||||||||
insulation resistance | 500MΩmin @ 100V |

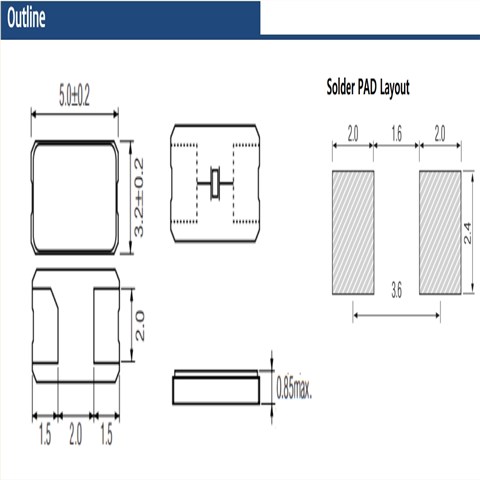

SX-SS2-10-20HZ-32.000MHz-9pF,6G无线通信晶振,新松无源晶振 尺寸图
产品特性:
±10pmm温度稳定性可用
AT-CUT仿制品或第三代O/T水晶设计
宽频率范围
陶瓷SMD封装
高精度
更多相关韩国新松晶振型号,请联系我们!
