NX2016SA-40MHZ-STD-CZS-3,NDK汽车级晶体,NX2016SA无源谐振器，尺寸2.0x1.6mm，频率40MHZ，日本电波晶体，日本进口晶振，无源贴片晶振，石英SMD晶振，无源晶振，石英晶振，2016mm石英晶振，SMD晶振，石英晶体谐振器，水晶振动子，无铅环保晶振，四脚贴片晶振，40MHZ贴片晶振，高精度晶振，高性能晶振，低损耗晶振，低功耗晶振，汽车级晶振，电信设备晶振，视听设备晶振，无线设备晶振，消费电子专用晶振，娱乐设备晶振，小型设备晶振，智能穿戴晶振，具有低损耗高精度的特点。

Quartz crystal产品比较适合用于电信设备，短程无线设备，消费类设备，小型设备，智能穿戴，娱乐设备等领域。NX2016SA-40MHZ-STD-CZS-3,NDK汽车级晶体,NX2016SA无源谐振器.

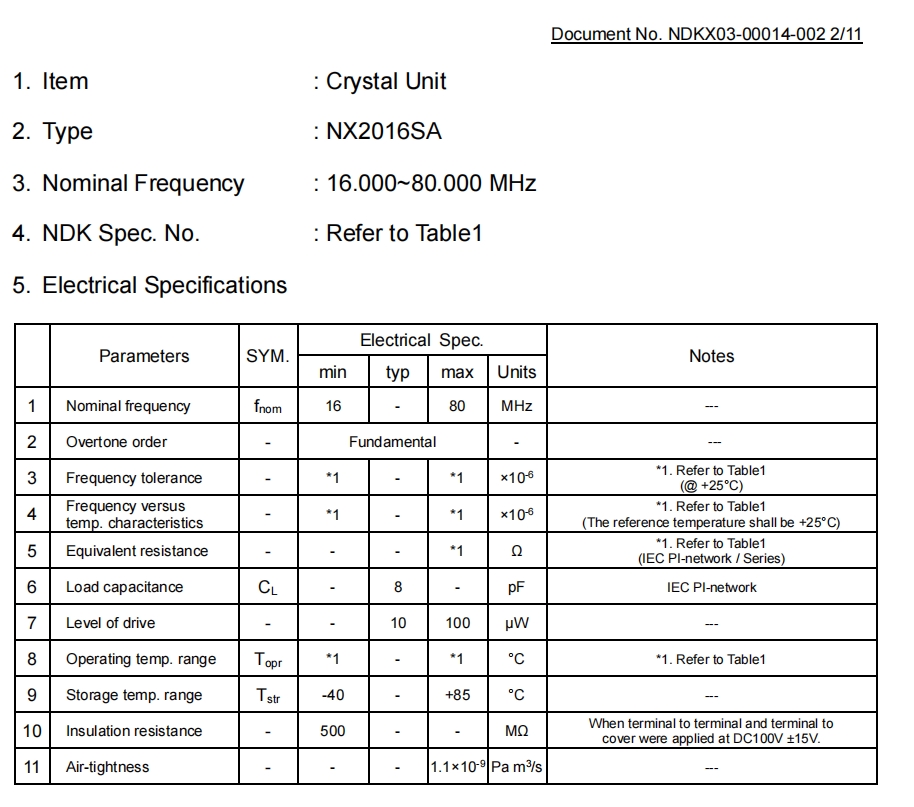

NX2016SA-40MHZ-STD-CZS-3,NDK汽车级晶体,NX2016SA无源谐振器参数表

Parameters		SYM.	ElectricalSpec.								Notes
			min		typ		max		Units
Nominal frequency		fnom			40				MHz		---
Overtone order		-	Fundamental						-		---
Frequency tolerance		-	*1		-		*1		×10-6		*1. Refer to Table1
											(@ +25°C)
Frequency versus		-	*1		-		*1		×10-6		*1. Refer to Table1
temp. characteristics											(The reference temperature shall be +25°C)
Equivalent resistance		-	-		-		*1		?		*1. Refer to Table1
											(IEC PI-network / Series)
Load capacitance		CL	-		8		-		pF		IEC PI-network
Level of drive		-	-		10		100		µW		---
Operating temp. range		Topr	*1		-		*1		°C		*1. Refer to Table1
Storage temp. range		Tstr	-40		-		85		°C		---
Insulation resistance		-	500		-		-		M?		When terminal to terminal and terminal to
											cover were applied at DC100V ±15V.
Air-tightness		-	-		-		1.1×10-9		Pa m3/s		---

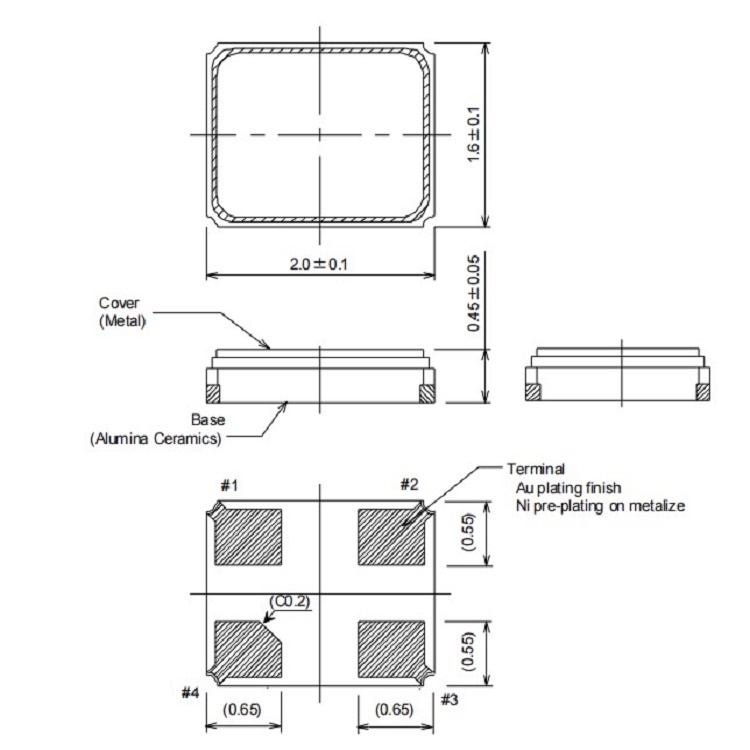

NX2016SA-40MHZ-STD-CZS-3,NDK汽车级晶体,NX2016SA无源谐振器 尺寸图

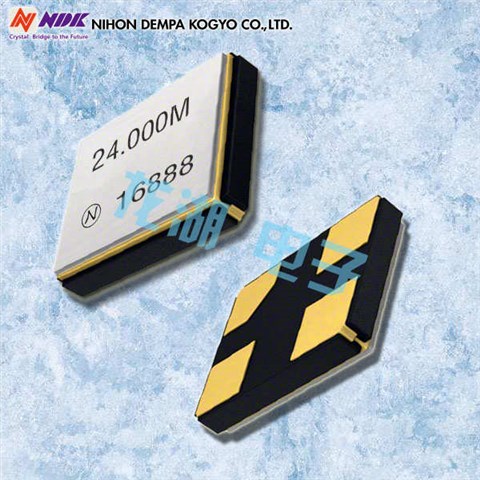

NX2016SA-40MHZ-STD-CZS-3,NDK汽车级晶体,NX2016SA无源谐振器

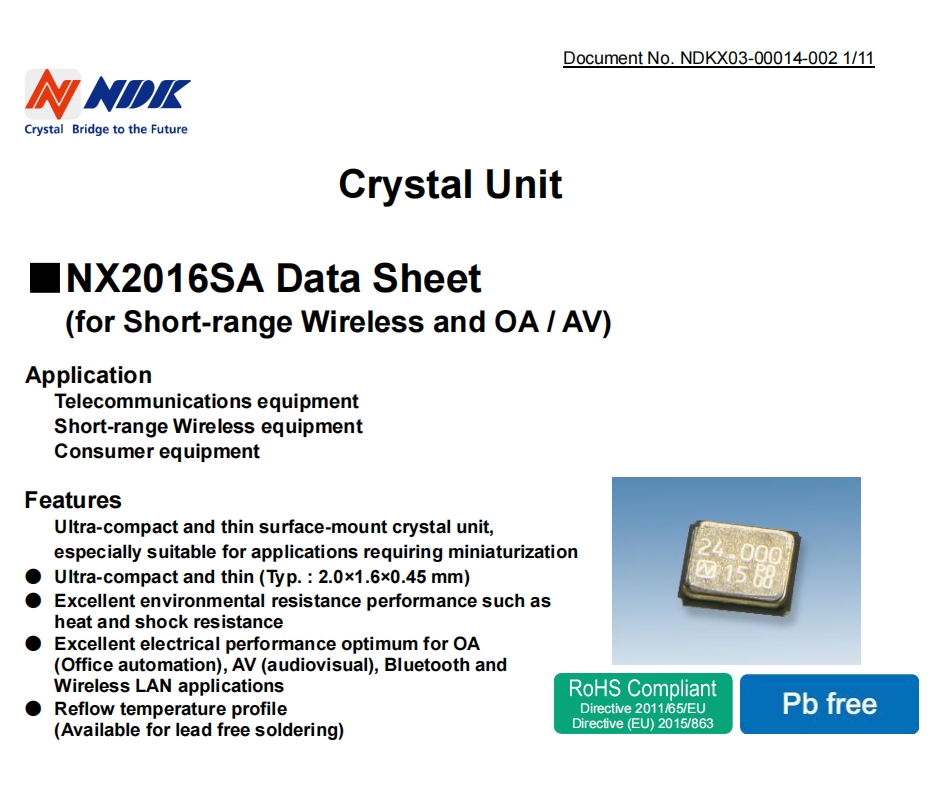

产品特点:

小型的，紧凑的和薄表面安装SMD晶体单元

超紧凑和薄(典型。:2.0×1.6×0.45毫米)

即使在极端恶劣的环境条件下也能保持稳定的启动特性

优异的耐热、耐振动等环境性能和耐震强度

回流温度曲线(适用于无铅焊接)

符合AEC-Q200
