LFXTAL065455REEL,IQXC-25,IQD伊克德电子,两脚贴片,SMD晶振,两脚贴片,石英谐振器,低频晶振,32.768k贴片,欧美高品质晶振,贴片谐振器,耐环境晶振,蓝牙晶振,耐热晶振,抗撞击性在常规的衰落或运输过程中的碰撞都不会影响搭配其的性能,即是是85度的环境依然可以运行,

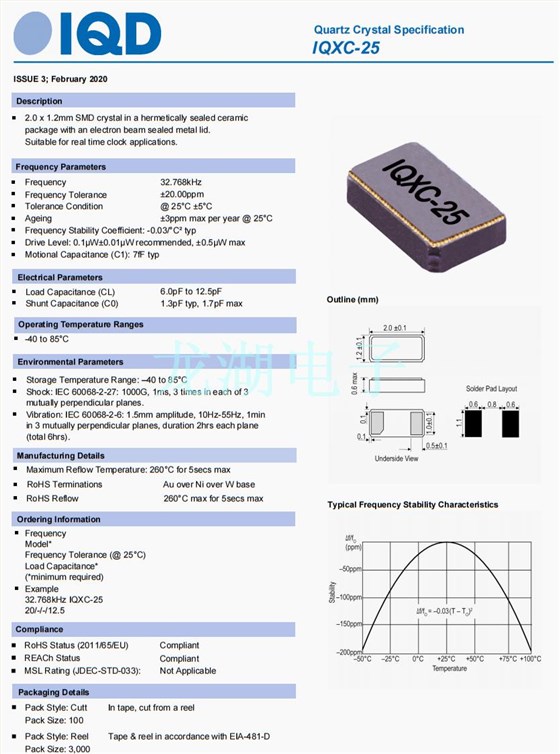

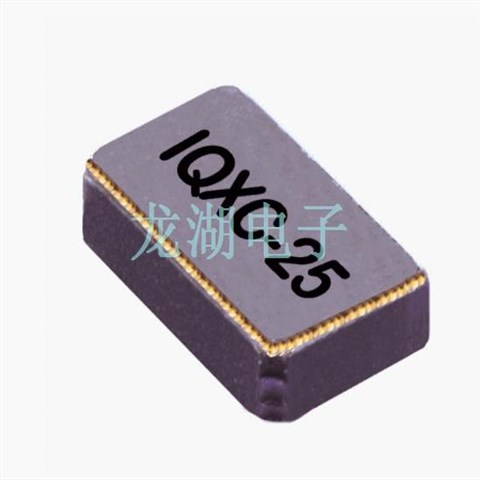

LFXTAL065455REEL,IQXC-25,IQD伊克德电子,两脚贴片
原厂编码 | LFXTAL065455REEL |
频率 | 32.768KHz |
厂家 | IQD晶振 |
型号 | IQXC-25 |
频率偏差 | ±20ppm |
负载电容 | 6pF |
工作温度 | -40°C至85°C |

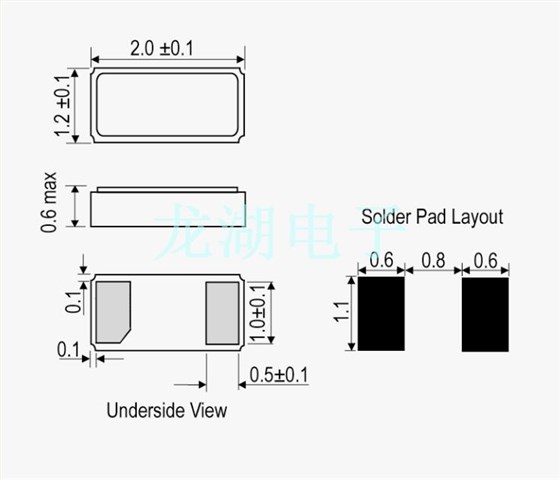

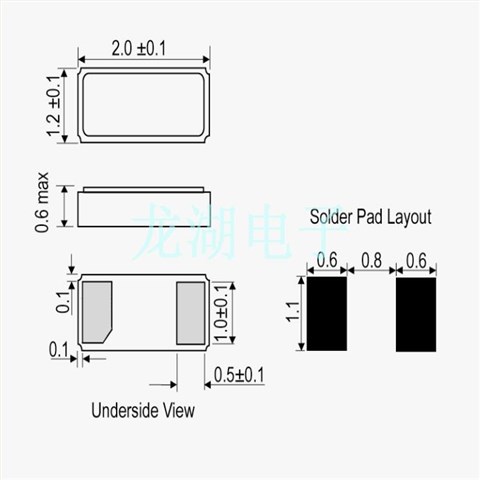

尺寸 | 2.0*1.2mm |
LFXTAL065455REEL,IQXC-25,IQD伊克德电子,两脚贴片
Mfr Part # | Mfr | Series | Frequency | Frequency Tolerance | Load Capacitance |
LFXTAL082135CUTT | IQD 进口晶振 | IQXC-42 | 48 MHz | ±10ppm | 8pF |
LFXTAL063334REEL | IQD 进口晶振 | CFPX-218 | 25 MHz | ±20ppm | 10pF |
LFXTAL055474REEL | IQD 进口晶振 | CFPX-180 | 25 MHz | ±50ppm | 16pF |
LFXTAL072352REEL | IQD 进口晶振 | 12SMX AUTO | 8 MHz | ±50ppm | 18pF |
LFXTAL059461REEL | IQD 进口晶振 | IQXC-25 | 32.768 kHz | ±20ppm | 7pF |
LFXTAL011164BULK | IQD 进口晶振 | HC49 | 3.072 MHz | ±20ppm | 20pF |
LFXTAL036356REEL | IQD 进口晶振 | HC49/4HSMX | 12 MHz | ±20ppm | 18pF |
LFXTAL058149RL3K | IQD 进口晶振 | CFPX-180 | 24 MHz | ±10ppm | 10pF |
LFXTAL083409RL3K | IQD 进口晶振 | CFPX-180 | 26 MHz | ±10ppm | 12pF |
LFXTAL078781RL3K | IQD 进口晶振 | CFPX-180 | 16 MHz | ±30ppm | 12pF |
LFXTAL083407RL3K | IQD 进口晶振 | CFPX-180 | 24 MHz | ±20ppm | 12pF |
LFXTAL036401REEL | IQD 进口晶振 | CFPX-104 | 12 MHz | ±20ppm | 18pF |
LFXTAL071266REEL | IQD 进口晶振 | IQXC-42 AUTO | 48 MHz | ±10ppm | 10pF |
LFXTAL066198REEL | IQD 进口晶振 | IQXC-90 | 32.768 kHz | ±20ppm | 9pF |
LFXTAL085880 | IQD 进口晶振 | CFPX-180 | 25 MHz | ±20ppm | 8pF |
LFXTAL085874 | IQD 进口晶振 | CFPX-180 | 20 MHz | ±20ppm | 12pF |
LFXTAL085878 | IQD 进口晶振 | CFPX-180 | 24 MHz | ±20ppm | 12pF |
LFXTAL085860 | IQD 进口晶振 | CFPX-180 | 12 MHz | ±20ppm | 12pF |
LFXTAL085887 | IQD 进口晶振 | CFPX-180 | 32 MHz | ±10ppm | 8pF |
LFXTAL009709 | IQD 进口晶振 | CFPX-217 | 32.768 kHz | ±20ppm | 7pF |
LFXTAL085881 | IQD 进口晶振 | CFPX-180 | 25 MHz | ±20ppm | 12pF |
LFXTAL085871 | IQD 进口晶振 | CFPX-180 | 16 MHz | ±20ppm | 8pF |
LFXTAL085845 | IQD 进口晶振 | IQXC-42 | 25 MHz | ±10ppm | 8pF |
LFXTAL085842 | IQD 进口晶振 | IQXC-42 | 16 MHz | ±10ppm | 8pF |
LFXTAL085857 | IQD 进口晶振 | IQXC-42 | 40 MHz | ±10ppm | 10pF |
LFXTAL084882 | IQD 进口晶振 | IQXC-217 | 32.768 kHz | ±20ppm | 12.5pF |
LFXTAL084884 | IQD 进口晶振 | IQXC-217 | 32.768 kHz | ±20ppm | 7pF |
LFXTAL084883 | IQD 进口晶振 | IQXC-217 | 32.768 kHz | ±20ppm | 9pF |
LFXTAL034654REEL | IQD 进口晶振 | HC49/4HSMX | 4 MHz | ±20ppm | 18pF |
LFXTAL028392REEL | IQD 进口晶振 | HC49/4HSMX | 4.9152 MHz | ±30ppm | 18pF |
LFXTAL011300REEL | IQD 进口晶振 | HC49/4HSMX | 4 MHz | ±30ppm | 30pF |
LFXTAL017145REEL | IQD 进口晶振 | HC49/4HSMX | 10 MHz | ±30ppm | 30pF |
LFXTAL017146REEL | IQD 进口晶振 | HC49/4HSMX | 20 MHz | ±30ppm | 30pF |
