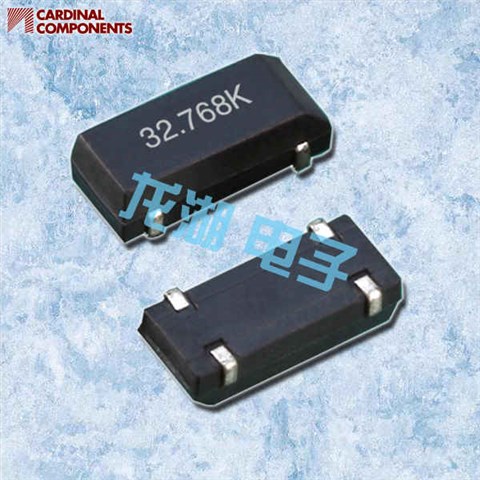

CPFB,CPFBZ-A2C4-32.768KD12.5,8038mm,Cardinal陶瓷晶振，美国进口晶振，Cardinal卡迪纳尔晶振，型号：CPFB，编码为：CPFBZ-A2C4-32.768KD12.5，频率为：32.768KHz，工作温度范围：-40℃至+85℃，负载：12.5pF，小体积晶振尺寸：8.7x3.7x2.4mm陶瓷SMD封装，四脚贴片晶振，无源晶振，石英晶振，SMD晶振，音叉晶体，石英晶体谐振器。具有超小型，轻薄型，高性能，高品质，高质量，耐热及耐环境等特点。被广泛应用于：通讯设备晶振，无线蓝牙模块，RTC应用，时钟晶振，汽车电子晶振，仪器仪表设备，数字显示等应用。
CPFB,CPFBZ-A2C4-32.768KD12.5,8038mm,Cardinal陶瓷晶振，产品特点：
•封装是自动化表面安装组装和回流实践的理想选择
•超小型，石英晶体谐振器
•行业标准足迹
•频率：32.768 kHz

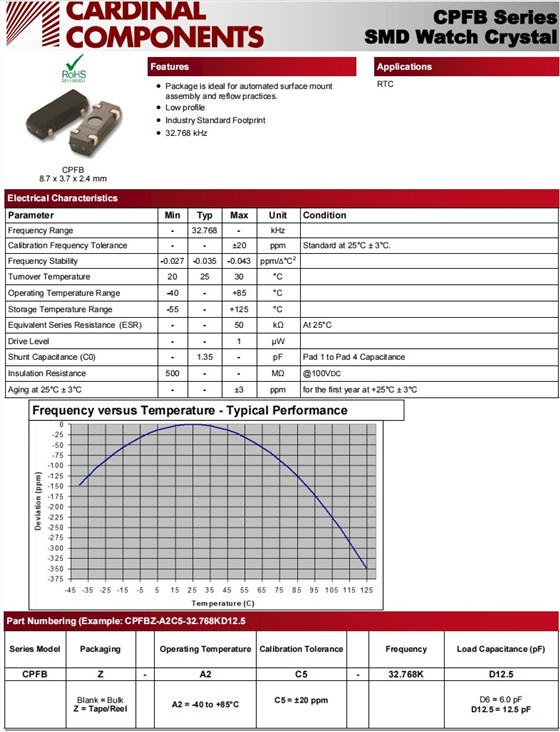

CPFB,CPFBZ-A2C4-32.768KD12.5,8038mm,Cardinal陶瓷晶振,参数表
Parameter
Min
Typ
Max
Unit
Condition
Frequency Range
-
32.768
-
kHz
Calibration Frequency Tolerance
-
-
±20
ppm
Standard at 25°C ± 3°C.
Frequency Stability
-0.027
-0.035
-0.043
ppm/△°C2
Turnover Temperature
20
25
30
°C
Operating Temperature Range
-40
-
+85
°C
Storage Temperature Range
-55
-
+125
°C
Equivalent Series Resistance(ESR)
-
-
50
kΩ
At 25°C
Drive Level
-
-
1
µW
Shunt Capacitance (C0)
-
1.35
-
pF
Pad 1 to Pad 4 Capacitance
Insulation Resistance
500
-
-
MΩ
@100VDC
Aging at 25°C ± 3°C
-
-
±3
ppm
for the first year at +25°C ± 3°C

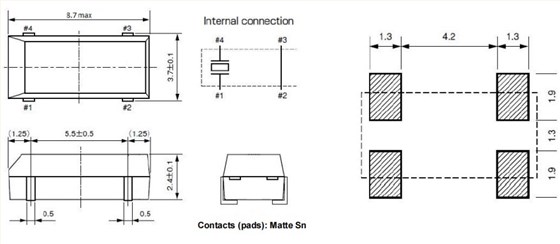

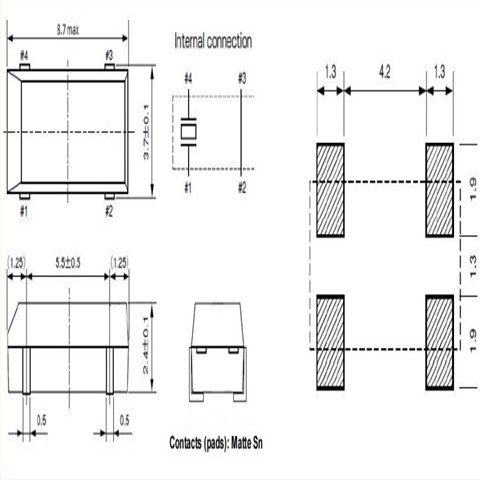

CPFB,CPFBZ-A2C4-32.768KD12.5,8038mm,Cardinal陶瓷晶振,尺寸图
