21M440-10\21SMX小体积晶体\6GWIFI晶振\SMICrystal,尺寸2.00x1.60mm,频率44MHZ,SMI Crystal,日本进口晶振,日本SMI晶体,水晶振动子,石英晶体谐振器,SMD晶振,轻薄型晶体,绿色环保晶振,2016mm贴片晶体,石英贴片晶振,贴片无源晶体,石英晶振,可穿戴设备晶振,可视化智能家居晶振,便携式设备专用晶振,仪器设备晶振,网络应用晶振,6GWIFI晶振,测试测量晶振,高性能石英晶振,低功耗晶振,具有轻薄小低功耗高性能的特点。
石英晶振产品非常适合用于可穿戴设备,可视化智能家居,便携式设备,仪器设备,网络应用,6GWIFI,测试测量,以及通信产品等领域.21M440-10\21SMX小体积晶体\6GWIFI晶振\SMICrystal.

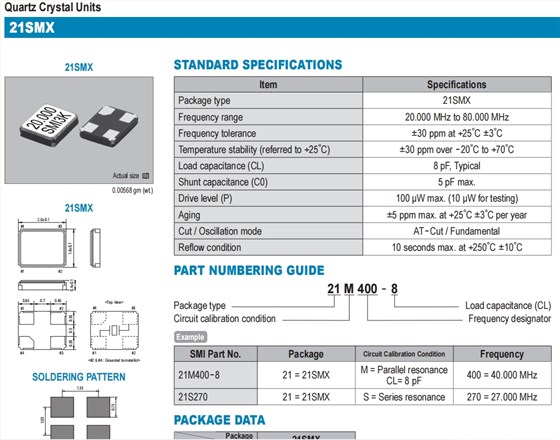

21M440-10\21SMX小体积晶体\6GWIFI晶振\SMICrystal 参数表
Item | Specifications | ||||||
Package type | 21SMX | ||||||
Frequency range | 44.000 MHz | ||||||
Frequency tolerance | ±30 ppm at +25°C ±3°C | ||||||
Temperature stability (referred to +25°C) | ±30 ppm over -20°C to +70°C | ||||||
Load capacitance (CL) | 8 pF, Typical | ||||||
Shunt capacitance (C0) | 5 pF max. | ||||||
Drive level (P) | 100 μW max. (10 μWfor testing) | ||||||
Aging | ±5 ppm max. at +25°C ±3°C per year | ||||||
Cut / Oscillation mode | AT-Cut / Fundamental | ||||||
Reflow condition | 10 seconds max. at +250°C ±10°C |

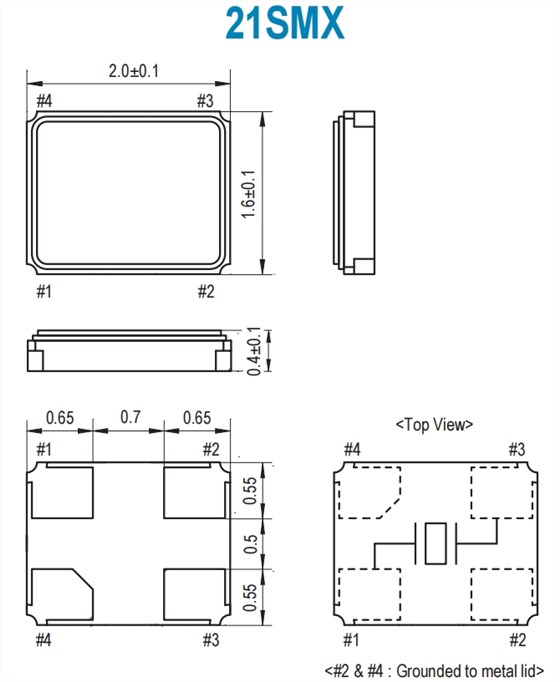

21M440-10\21SMX小体积晶体\6GWIFI晶振\SMICrystal 尺寸图
SMD crystal产品特性:
低的老化
优异的耐热性
更多相关日本SMI进口晶振型号,请咨询我们!
