WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振

频率：32.768KHz

尺寸：3.2x1.5x0.9mm

WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振，美国进口晶振，Mmdcomp麦迪康晶振，型号：WC315系列，编码为：WC315-32.768KHZ-T，频率为：32.768KHz，负载：12.5pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x1.5x0.9mm，两脚贴片晶振，无源晶振，3215晶振，石英晶体，SMD晶振，石英晶体谐振器。具有超小型，轻薄型，高性能，高品质，耐热及耐环境特点。应用于：移动通讯晶振，钟表电子晶振，仪器仪表设备晶振，无线蓝牙晶振，平板电脑晶振，智能家居晶振，数码电子等应用。

订购热线：0755-29952551

LH-1

CTS-1

WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振,产品特点:

陶瓷SMD音叉晶体
频率：32.768KHz
符合RoHS
提供带卷包装

LH-2

CTS-2

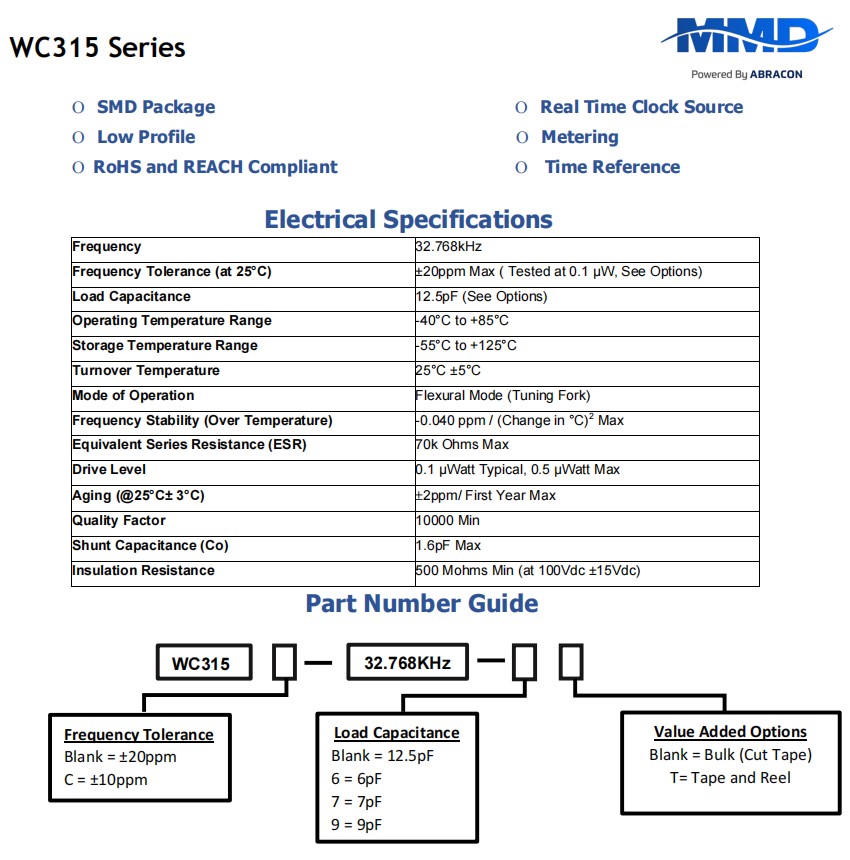

WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振,参数表

Frequency

32.768kHz

Frequency Tolerance (at 25°C)

±20ppm Max ( Tested at 0.1 µW, See Options)

Load Capacitance

12.5pF (See Options)

Operating Temperature Range

-40°C to +85°C

Storage Temperature Range

-55°C to +125°C

Turnover Temperature

25°C ±5°C

Mode of Operation

Flexural Mode (Tuning Fork)

Frequency Stability (Over Temperature)

-0.040 ppm / (Change in °C)2 Max

Equivalent Series Resistance (ESR)

70k Ohms Max

Drive Level

0.1 µWatt Typical, 0.5 µWatt Max

Aging (@25°C± 3°C)

±2ppm/ First Year Max

Quality Factor

10000 Min

Shunt Capacitance (Co)

1.6pF Max

Insulation Resistance

500 Mohms Min (at 100Vdc ±15Vdc)

LH-3

ECS-1

WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振,尺寸图
