频率：48MHZ
尺寸：5.0x3.2mm
SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶体,5032mm,韩国进口晶振,三呢晶体谐振器,SMD晶振,石英无源晶振,48MHZ轻薄型晶振,5032mm贴片晶体,石英振动子,四脚贴片晶振,石英晶振,尺寸5.0x3.2mm,频率为48MHZ,无铅晶振,高频晶振,高性能晶振,智能手机晶振,视听设备晶振,测试测量晶振,仪器仪表晶振,小型设备晶振.
SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶体,5032mm特点:
接缝密封,卓越的可焊性
石英晶体卓越的抗振性和抗冲击性,高频稳定性
出色的热滞后,TTS-16949认证
无铅和RoHS合规,AAEC-Q200合格

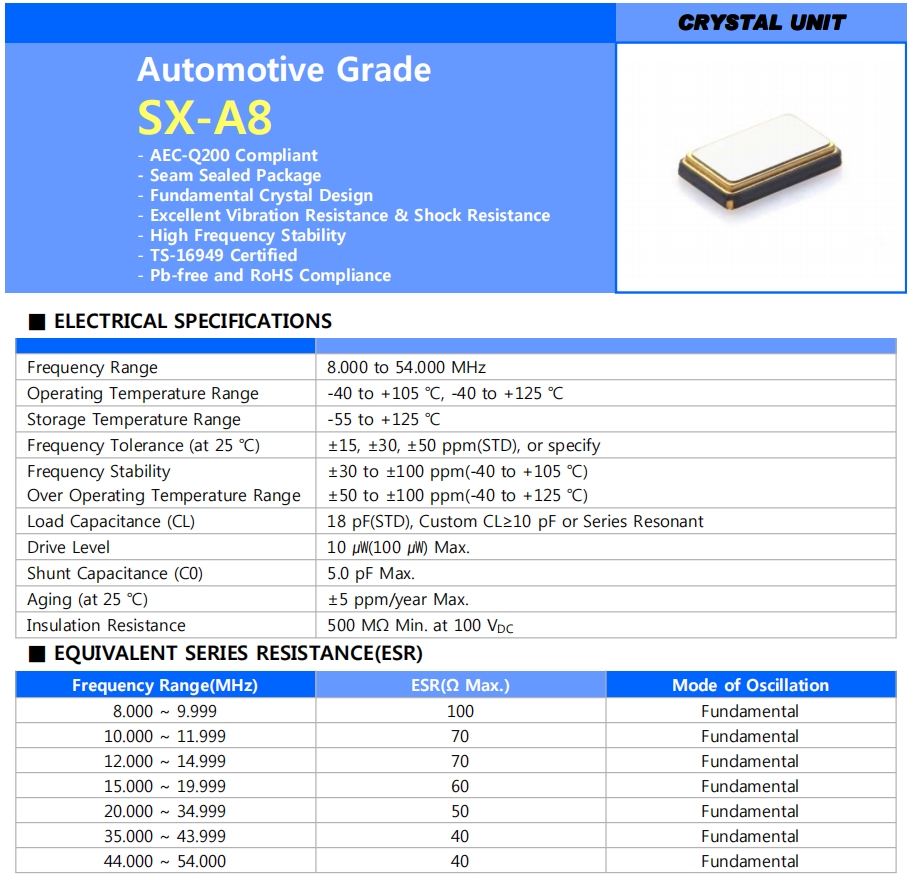

SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶体,5032mm 参数表
| Frequency Range | 48.000 MHz | |||||||||||||||||||
| Operating Temperature Range | -40 to +105 ℃, -40 to +125 ℃ | |||||||||||||||||||
| Storage Temperature Range | -55 to +125 ℃ | |||||||||||||||||||
| Frequency Tolerance (at 25 ℃) | ±15, ±30, ±50 ppm(STD), or specify | |||||||||||||||||||
|
Frequency Stability Over Operating Temperature Range |
±30 to ±100 ppm(-40 to +105 ℃) ±50 to ±100 ppm(-40 to +125 ℃) |
|||||||||||||||||||
| Load Capacitance (CL) | 18 pF(STD), Custom CL≥10 pF or Series Resonant | |||||||||||||||||||
| Drive Level | 10 μw(100 μw) Max. | |||||||||||||||||||
| Shunt Capacitance (C0) | 5.0 pF Max. | |||||||||||||||||||
| Aging (at 25 ℃) | ±5 ppm/year Max. | |||||||||||||||||||
| Insulation Resistance | 500 MΩ Min. at 100 VDC | |||||||||||||||||||

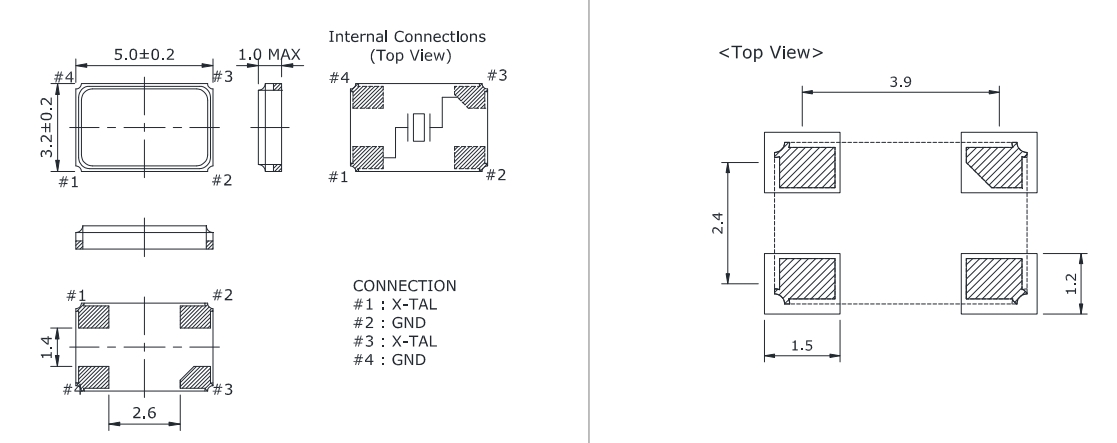

SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶体,5032mm 尺寸图
