美国QVS晶振,QPM25A-2XDF12.5-32.768KHz,6G模块专用晶体

频率：32.768KHZ

尺寸：8.0*3.8mm

美国QVS晶振,QPM25A-2XDF12.5-32.768KHz,6G模块专用晶体，尺寸为8.0*3.8mm，频率为32.768KHZ，负载电容12.5pF，无源贴片晶振，陶瓷谐振器，无源晶体，进口音叉晶振，8038mm陶瓷晶振，32.768KHZ贴片晶振，时钟晶体，四脚贴片晶振，蓝牙应用贴片晶振，无线网络专用晶体，钟表专用贴片晶振，低损耗无源晶振，高质量贴片晶振，高性能无源晶振，产品具有轻薄型低损耗的特点。

SMD晶体产品非常适合用于钟表应用，蓝牙音响，无线网络，仪器仪器，物联网，数码电子，数字视频等领域.美国QVS晶振,QPM25A-2XDF12.5-32.768KHz,6G模块专用晶体.

订购热线：0755-29952551

LH-1

LH-2

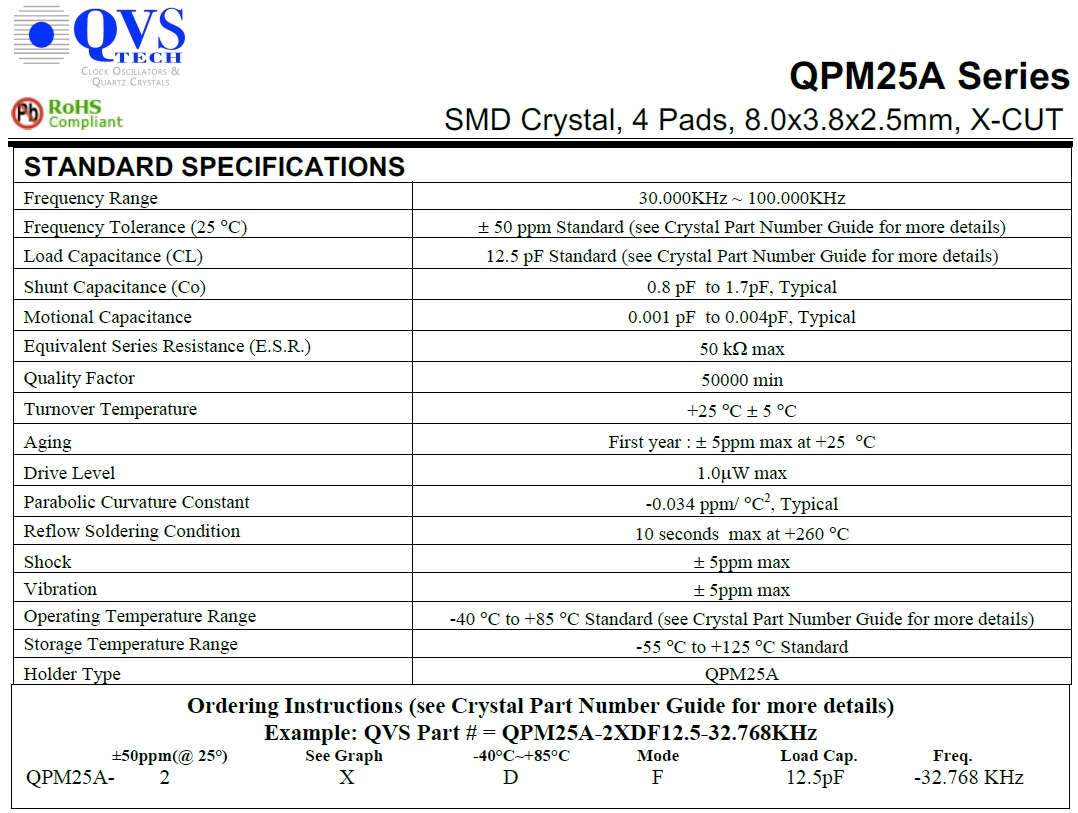

美国QVS晶振,QPM25A-2XDF12.5-32.768KHz,6G模块专用晶体 参数表

STANDARD SPECIFICATIONS

Frequency Range 32.768KHz

Frequency Tolerance (25 。C) ± 50 ppm Standard (see Crystal Part Number Guide for more details)

Load Capacitance (CL) 12.5 pF Standard (see Crystal Part Number Guide for more details)

Shunt Capacitance (Co) 0.8 pF to 1.7pF, Typical

Motional Capacitance 0.001 pF to 0.004pF, Typical

Equivalent Series Resistance (E.S.R.) 50 kΩ max

Quality Factor 50000 min

Turnover Temperature +25 。C ± 5 。C

Aging First year : ± 5ppm max at +25 。C

Drive Level 1.0μW max

Parabolic Curvature Constant -0.034 ppm/ 。C2, Typical

Reflow Soldering Condition 10 seconds max at +260 。C

Shock ± 5ppm max

Vibration ± 5ppm max

Operating Temperature Range -40 to +85度 Standard (see Crystal Part Number Guide for more details)

Storage Temperature Range -55 to +125度 Standard

Holder Type QPM25A

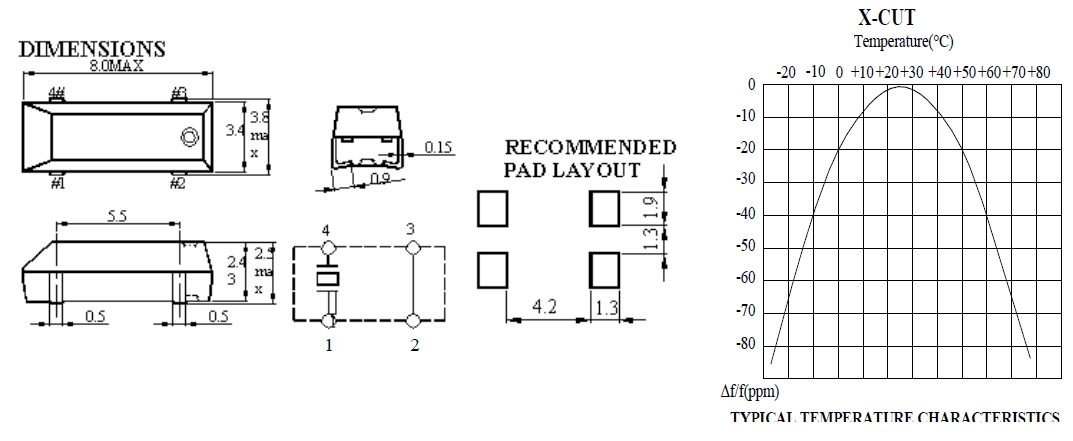

美国QVS晶振,QPM25A-2XDF12.5-32.768KHz,6G模块专用晶体 尺寸图

无源晶振产品特性：

频率范围 30.000KHz ~ 100.000KHz

尺寸 8.0x3.8x2.5mm

工作温度-40 to +85度
