6G移动通信晶振/XTL74时钟晶振/XTL741-S999-298/希华音叉谐振器

频率：32.768KHZ

尺寸：2.0x1.2mm

6G移动通信晶振/XTL74时钟晶振/XTL741-S999-298/希华音叉谐振器，尺寸2.0x1.2mm，频率32.768KHZ，台湾Siward晶振，希华无源晶体，台湾音叉晶振，32.768KHZ时钟晶振，音叉晶体，SMD无源晶体，32.768KHZ贴片晶振，2012mm无源晶振，无铅环保晶振，两脚贴片晶振，时钟应用晶振，蓝牙晶振，智能计量晶振，游戏机晶振，数码相机晶振，电话机晶振，6G移动通信晶振，高性能晶振，低损耗晶振，低成本，具有小体积高性能的特点.

32.768K音叉晶体产品主要应用于蓝牙应用，智能计量产品，还可以广泛用于数码相机，移动通信，数码相机，游戏机等领域。6G移动通信晶振/XTL74时钟晶振/XTL741-S999-298/希华音叉谐振器.

订购热线：0755-29952551

LH-1

LH-2

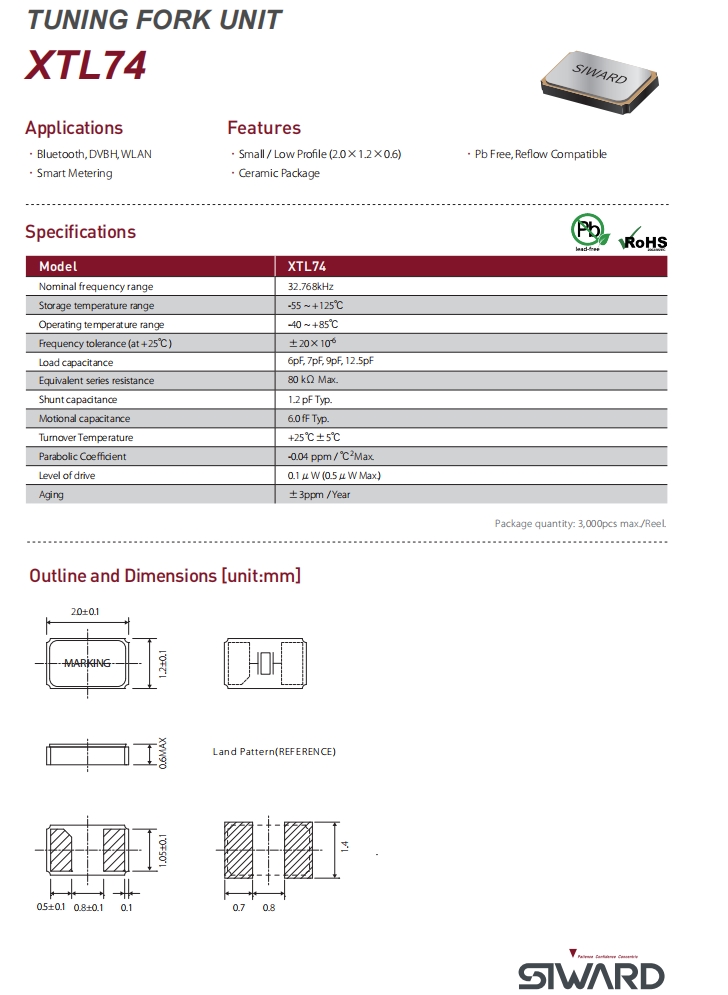

6G移动通信晶振/XTL74时钟晶振/XTL741-S999-298/希华音叉谐振器 参数表

Model					XTL74
Nominal frequency range					32.768kHz
Storage temperature range					-55 ~ +125℃
Operating temperature range					-40 ~ +85℃
Frequency tolerance (at +25℃)					±20×10-6
Load capacitance					6pF, 7pF, 9pF, 12.5pF
Equivalent series resistance					80 k Ω Max.
Shunt capacitance					1.2 pF Typ.
Motional capacitance					6.0 fF Typ.
Turnover Temperature					+25℃±5℃
Parabolic Coe cient					-0.04 ppm / ℃2Max.
Level of drive					0.1μW (0.5μW Max.)
Aging					±3ppm / Year

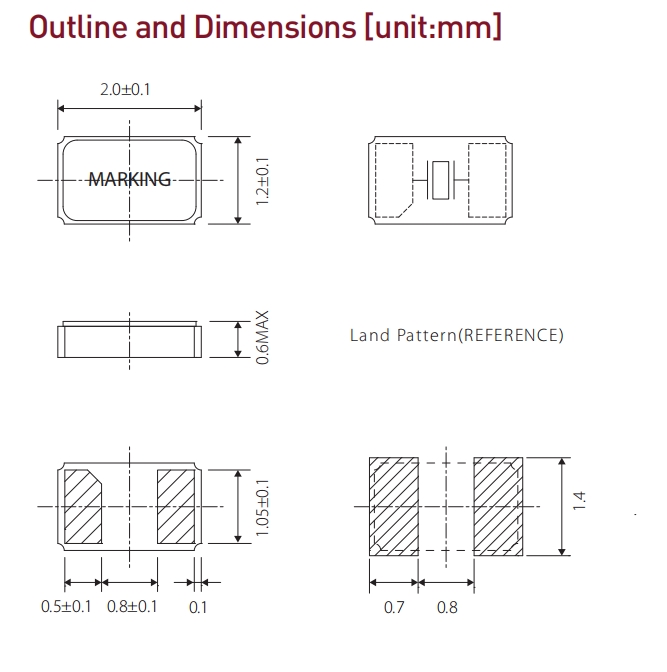

6G移动通信晶振/XTL74时钟晶振/XTL741-S999-298/希华音叉谐振器 尺寸图

产品特性：

超小体积

低成本

频率:32.768KHZ

极好的老化

更多相关Siward希华晶振型号

Mfr Part #	Mfr	Supplier	Description	Series	Frequency	Frequency Tolerance	Load Capacitance
XTL721-Q23-048	Siward	Siward	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL72	32.768 kHz	±20ppm	6pF
XTL721-S349-005	Siward	Siward	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL72	32.768 kHz	±20ppm	7pF
XTL721-S999-301	Siward	Siward	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL72	32.768 kHz	±20ppm	9pF
XTL721-S999-429	Siward	Siward	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL72	32.768 kHz	±20ppm	6pF
XTL741-S999-319	Siward	Siward	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL74	32.768 kHz	±20ppm	9pF
XTL741-U11-402	Siward	SIWARD晶振	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL74	32.768 kHz	±20ppm	7pF
XTL741-S999-298	Siward	Siward	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL74	32.768 kHz	±20ppm	12.5pF
XTL741-S999-379	Siward	Siward	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL74	32.768 kHz	±20ppm	7pF
XTL741-S999-327	Siward	Siward	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL74	32.768 kHz	±20ppm	4pF
XTL721-S999-286	Siward	Siward	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL72	32.768 kHz	±20ppm	12.5pF
XTL751-S999-544	Siward	Siward	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL75	32.768 kHz	±20ppm	12.5pF
XTL751-S999-548	Siward	Siward	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL75	32.768 kHz	±20ppm	9pF
XTL751-S999-420	Siward	Siward	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL75	32.768 kHz	±20ppm	7pF
