EPSON光纤通讯晶振,X1M000461000600,XG5032HAN低抖动晶振

频率：100.000000MHz

尺寸：5.0x3.2x1.4mm

EPSON光纤通讯晶振,X1M000461000600,XG5032HAN低抖动晶振，日本进口晶振，EPSON爱普生晶振，型号：XG5032HAN，编码为：X1M000461000600，频率为：100.000000MHz，小体积晶振尺寸：5.0x3.2x1.4mm封装，六脚贴片晶振，HCSL输出差分晶振，差分晶体振荡器，有源晶振，石英晶体振荡器，石英晶振，低抖动表面声波(SAW)振荡器 (SPSO)，SAW单元的极低抖动振荡器。具有超小型，轻薄型，低抖动，低功耗，低耗能，低电源电压，低损耗，低相位噪声，低电平，满足产品低消耗电流的特点。石英晶振被广泛应用于：通讯设备、机顶盒、无线网络，蓝牙模块，物联网，光端机、6GWIFI，安防设备、路由器/交换机、仪器仪表、光纤通讯，10G以太网，导航仪等应用。

订购热线：0755-29952551

LH-1

LH-2

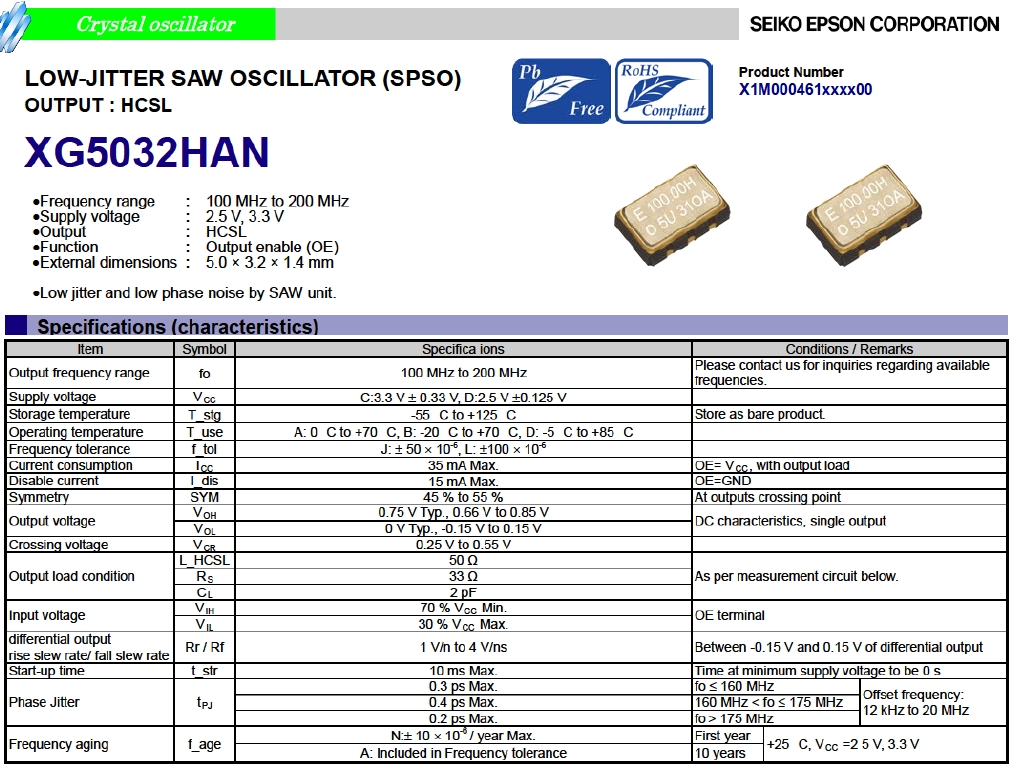

EPSON光纤通讯晶振,X1M000461000600,XG5032HAN低抖动晶振 参数表

Item	Symbol	XG5032HAN	Conditions / Remarks
Output frequency range	f0	100MHz	Please contact us for inquiries regarding available frequencies.
Supply voltage	VCC	C : 3.3V ± 0.33V
		D : 2.5V ± 0.125V
Storage temperature	T_stg	-55°C to +125°C	Store as bare product.
Operating temperature *1	T_use	A : 0°C to +70°C
		B : -20°C to +70°C
		D : -5°C to +85°C
Frequency tolerance *1	f_tol	J : ± 50 × 10-6
		L : ±100 × 10-6
Current consumption	ICC	35mA Max.	OE = VCC , with output load
Disable current	I_dis	15mA Max.	OE = GND
Symmetry	SYM	45% to 55%	at outputs crossing point
Output voltage	VOH	0.75V Typ. , 0.66V to 0.85V	DC characteristics,Single output
	VOL	0 V Typ. , -0.15V to 0.15V
Crossing Voltage	Vcr	0.25V to 0.55V
Input voltage	VIH	70% VCC Min.	OE terminal
	VIL	30% VCC Max.
differential output	Rr / Rf	1V/n to 4V/ns	Between -0.15% and 0.15 defferential output
rise slew rate/
fall slew rate
Start-up time	t_str	10ms Max.	Time at minimum supply voltage to be 0s
Phase Jitter	tPJ	0.3ps Max.	f0 ≦ 160 MHz	Offset frequency:
		0.4ps Max.	160 MHz < f0 ≦ 175 MHz	12kHz to 20MHz
		0.2ps Max.	f0 > 175 MHz
Frequency aging	f_aging	± 10 × 10-6 / year Max.	First year	+25°C , First year
		A : Included in Frequency tolerance	10years	VCC = 2.5V , 3.3V

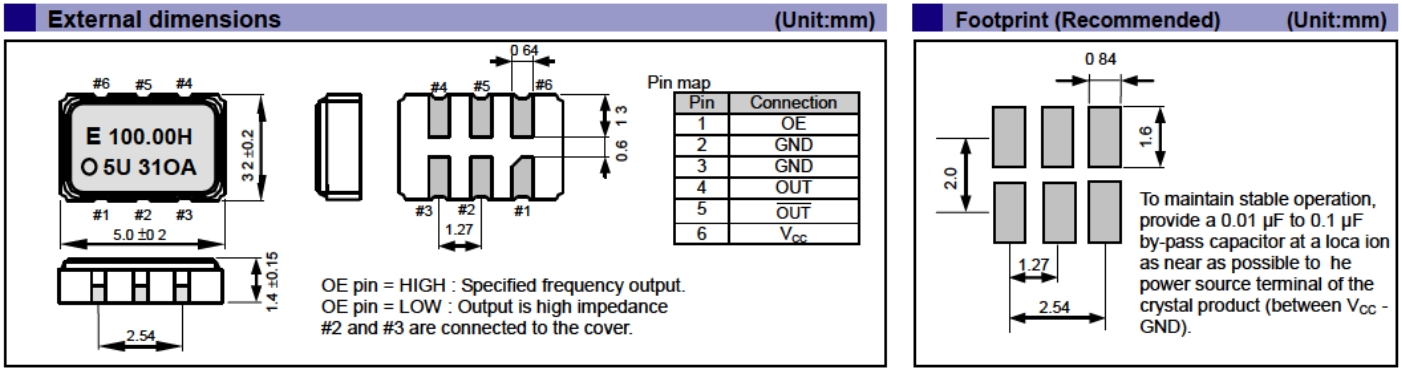

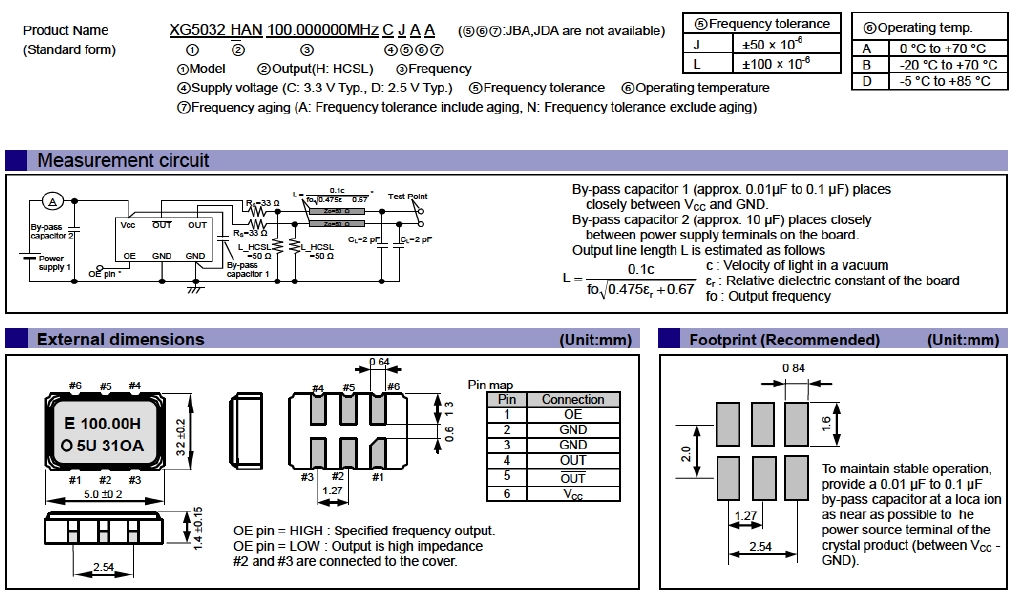

EPSON光纤通讯晶振,X1M000461000600,XG5032HAN低抖动晶振 尺寸图

EPSON光纤通讯晶振,X1M000461000600,XG5032HAN低抖动晶振

频率范围：100MHz~200MHz

低抖动表面声波(SAW)振荡器 (SPSO)

电源电压：2.5V，3.3V

输出：HCSL 差分晶振

外形尺寸：5.0x3.2x1.4mm

功能：使能（OE）

SAW 单元的极低抖动振荡器

晶振编码	进口晶振	型号	频率	尺寸	输出方式
X1M000091000100	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000200	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000300	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000400	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000500	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000600	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000700	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000800	EPSON晶振	EG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000900	EPSON晶振	EG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091001000	EPSON晶振	EG-2102CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000101000200	EPSON晶振	EG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000431000400	EPSON晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431000600	EPSON晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431000700	EPSON晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431000800	EPSON晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431000900	振荡器	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431001000	EPSON晶振	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431001100	EPSON晶振	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000461000100	EPSON晶振	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL
X1M000461000200	EPSON晶振	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL
X1M000461000300	EPSON晶振	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL
X1M000461000600	EPSON晶振	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL
