X1G0059210001,SG2520EHN差分输出晶振,EPSON晶振,6G放大器晶振

频率：156.25MHZ

尺寸：2.5*2.0mm

X1G0059210001,SG2520EHN差分输出晶振,EPSON晶振,6G放大器晶振，尺寸为2.5*2.0mm，频率为156.25MHZ，输出逻辑LV-PECL，LV-PECL差分输出晶振，LV-PECL差分晶体振荡器，低耗能差分晶振，OSC差分晶振，差分贴片晶振，低电压差分晶振，低抖动差分振荡器，光通信模块差分晶振，6G将使网络通信流量呈指数级增长。6G通信网络要求高速宽频带，同时把噪音降到最低。这可以通过高频率，用于通信设备的低抖动参考时钟。光通信模块为400gbps /800gbps传输超过80公里需要一个小的外形因素，±20 × 10-6的稳定性参考时钟。

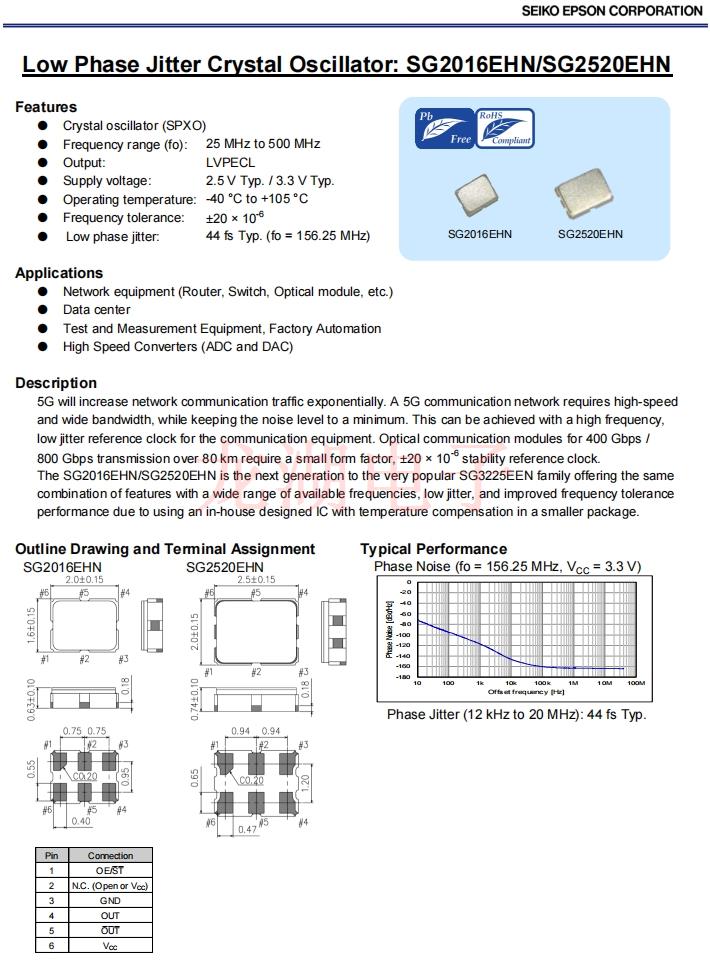

SG2016EHN/SG2520EHN是非常受欢迎的SG3225EEN系列的下一代产品具有广泛的可用频率范围，低抖动和改进的频率容限的功能组合由于在更小的封装中使用了带有温度补偿的内部设计IC，因此性能更好。差分晶振产品很适合用于网络设备(路由器、交换机、光模块等)，数据中心，测试和测量设备，工厂自动化，高速转换器(ADC和DAC)等领域。X1G0059210001,SG2520EHN差分输出晶振,EPSON晶振,6G放大器晶振.

订购热线：0755-29952551

LH-1

LH-2

X1G0059210001,SG2520EHN差分输出晶振,EPSON晶振,6G放大器晶振 参数表

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Maximum supply voltage

VCC

-0.3

4.0

Input voltage

Vin

-0.3

VCC + 0.5

OE/ terminal

Storage temperature range

T_stg

-55

+125

°C

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Supply voltage

VCC

2.375

2.5

2.625

Suffix: D

3.135

3.3

3.465

Suffix: C

Supply voltage

GND

0.0

Operating temperature range

T_use

-40

+25

+85

°C

Suffix: G

-40

+25

+105

°C

Suffix: H

ECL load condition

L_ECL

Terminated to VCC - 2.0 V

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Output frequency *1

156.25

MHz

Frequency tolerance *2

f_tol

-20

+20

×10-6

Suffix: C

Parameter	Symbol	Specification			Unit	Conditions
		Min.	Typ.	Max.
Startup time	t_str	-	-	10	ms	t = 0 at 90 % VCC
Current consumption	ICC	-	-	60	mA
Disable current	I_dis	-	-	35	mA	OE = GND
Stand-by current	I_std	-	-	30	μA	= GND, T_use Max. = +85 °C
		-	-	60	μA	= GND, T_use Max. = +105 °C
Rise time / Fall time	tr / tf	-	-	0.35	ns	20 % - 80 % of (VOH - VOL)
Symmetry	SYM	45	50	55	%	At output crossing point
Output voltage	VOH	VCC - 1.1	-	-	V	DC characteristics
	VOL	-	-	VCC - 1.5	V
Differential swing	VSW	800	-	2 000	mV
Input voltage	VIH	70 % VCC	-	-	V	OE/ terminal
	VIL	-	-	30 % VCC	V
Output disable time (OE)	tstp_oe	-	-	100	ns	Measured from the time OE pin crosses 30 % VCC
Output disable time (ST)	tstp_st	-	-	100	ns	Measured from the time pin crosses 30 % VCC
Output enable time (OE)	tsta_oe	-	-	500	ns	Measured from the time OE pin crosses 70 % VCC
Output enable time (ST)	tsta_st	-	-	10	ms	Measured from the time pin crosses 70 % VCC
Phase jitter Offset frequency fo < 50 MHz: 12 kHz to 5 MHz fo ≥ 50 MHz: 12 kHz to 20 MHz	tPJ	-	-	250	fs	fo < 100 MHz
		-	-	90	fs	100 MHz ≤ fo ≤ 156 MHz
		-	-	70	fs	156 MHz < fo ≤ 212 MHz
		-	-	60	fs	212 MHz < fo ≤ 391 MHz
		-	-	50	fs	fo > 391 MHz

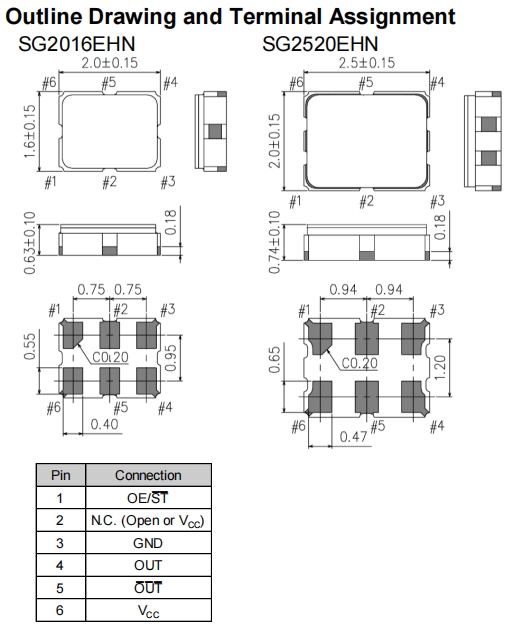

X1G0059210001,SG2520EHN差分输出晶振,EPSON晶振,6G放大器晶振 尺寸图

产品特性：

石英晶体振荡器(SPXO)

频率范围(fo): 25MHz至500MHz

输出:LVPECL

供电电压:2.5 V。/ 3.3 V类型

工作温度:-40℃~ +105℃

频率公差:±20 ×10-6

低相位抖动:44 fs(fo =156.25MHz)
