EPSON差分贴片晶振SG3225HBN,6G放大器晶振,X1G0051410005
prevnext

EPSON差分贴片晶振SG3225HBN,6G放大器晶振,X1G0051410005

频率：125MHZ

尺寸：3.2*2.5mm


EPSON差分贴片晶振SG3225HBN,6G放大器晶振,X1G0051410005，尺寸为3.2*2.5mm,频率为125MHZ,输出逻辑HCSL，差分晶体振荡器，进口有源差分晶振，OSC差分晶振，HCSL差分输出晶振，交换机差分振荡器，低电压差分晶振，低相位差分振荡器，低抖动差分晶振，6G放大器差分晶振，6G模块差分振荡器，通信产品差分晶振，125MHZ差分晶振，产品具备高质量低抖动低电压的特点。

差分贴片晶振是目前行业中公认高技术，高要求的一款晶体振荡器，是指输出差分信号使用2种相位彼此完全相反的信号,从而消除了共模噪声,并产生一个更高性能的系统。差分晶振一般为六脚贴片，输出类型分为好几种,LVDS,LV-PECL，HCSL具有低电平,低抖动，低功耗，低功耗等特性。EPSON差分贴片晶振SG3225HBN,6G放大器晶振,X1G0051410005.


订购热线：0755-29952551
QQ咨询 财富通

Abracon-2

LH-1


EPSON差分贴片晶振SG3225HBN,6G放大器晶振,X1G0051410005，尺寸为3.2*2.5mm,频率为125MHZ,输出逻辑HCSL，差分晶体振荡器，进口有源差分晶振，OSC差分晶振，HCSL差分输出晶振，交换机差分振荡器，低电压差分晶振，低相位差分振荡器，低抖动差分晶振，6G放大器差分晶振，6G模块差分振荡器，通信产品差分晶振，125MHZ差分晶振，产品具备高质量低抖动低电压的特点。

差分贴片晶振是目前行业中公认高技术，高要求的一款晶体振荡器，是指输出差分信号使用2种相位彼此完全相反的信号,从而消除了共模噪声,并产生一个更高性能的系统。差分晶振一般为六脚贴片，输出类型分为好几种,LVDS,LV-PECL，HCSL具有低电平,低抖动，低功耗，低功耗等特性。EPSON差分贴片晶振SG3225HBN,6G放大器晶振,X1G0051410005.

LH-2

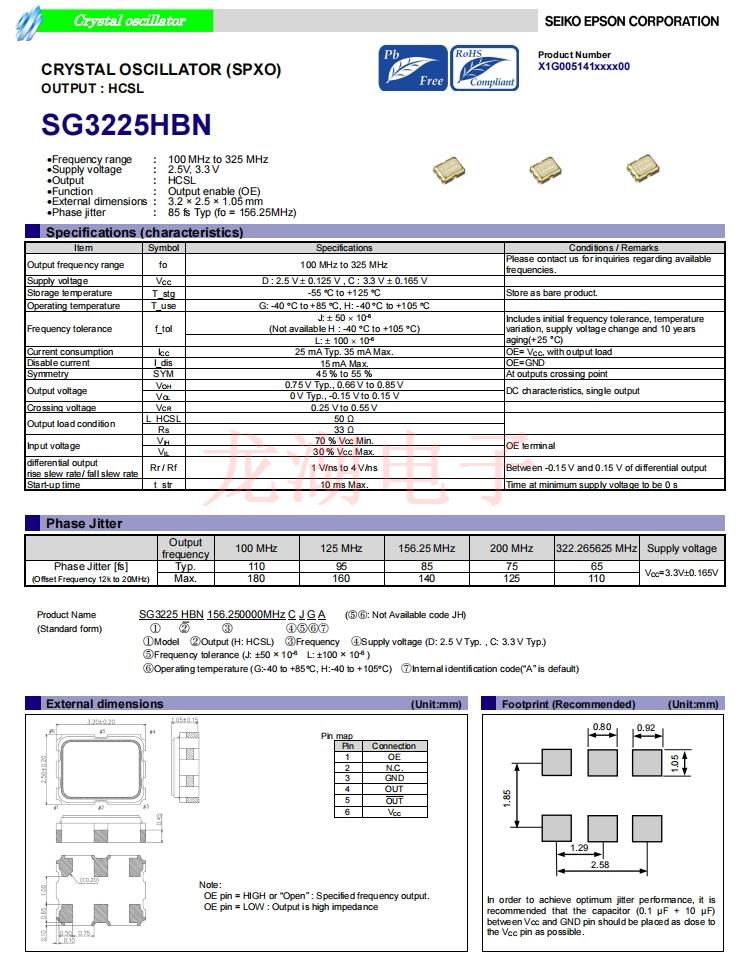

EPSON差分贴片晶振SG3225HBN,6G放大器晶振,X1G0051410005  参数表

     Specifications (characteristics)
Item Symbol Specifications Conditions / Remarks
Output frequency range fo 125MHz Please contact us for inquiries regarding available
frequencies.
Supply voltage VCC D : 2.5 V ± 0.125 V , C : 3.3 V ± 0.165 V
Storage temperature T_stg -55 °C to +125 °C Store as bare product.
Operating temperature T_use G: -40 °C to +85 °C , H: -40 °C to +105 °C
Frequency tolerance f_tol J: ± 50 × 10-6
(Not available H : -40 °C to +105 °C) 		Includes initial frequency tolerance, temperature
variation, supply voltage change and 10 years
aging(+25 °C)
L: ± 100 × 10-6
Current consumption ICC 25 mATyp. 35 mA Max. OE= VCC, with output load
Disable current I_dis 15 mA Max. OE=GND
Symmetry SYM 45 % to 55 % At outputs crossing point
Output voltage VOH 0.75 V Typ., 0.66 V to 0.85 V DC characteristics, single output
VOL 0 V Typ., -0.15 V to 0.15 V
Crossing voltage VCR 0.25 V to 0.55 V
Output load condition L_HCSL 50 Ω
RS 33 Ω
Input voltage VIH 70 % VCC  Min. OE terminal
VIL 30 % VCC  Max.
differential output
rise slew rate/ fall slew rate 		Rr / Rf 1 V/ns to 4 V/ns Between -0.15 V and 0.15 V of differential output
Start-up time t_str 10 ms Max. Time at minimum supply voltage to be 0 s
      Phase Jitter
Output
frequency 		100 MHz 125 MHz 156.25 MHz 200 MHz 322.265625 MHz Supply voltage
Phase Jitter [fs]
(Offset Frequency 12k to 20MHz) 		Typ. 110 95 85 75 65 VCC=3.3V±0.165V
Max. 180 160 140 125 110
LH-3Abracon-1

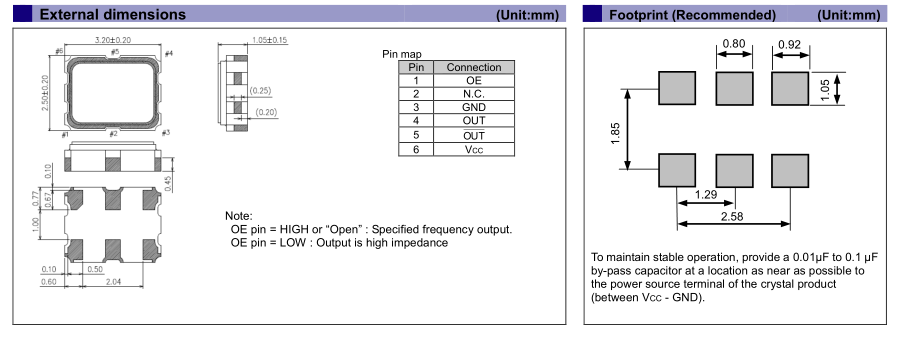

EPSON差分贴片晶振SG3225HBN,6G放大器晶振,X1G0051410005      尺寸图SG3225HBN_3225

有源晶振产品特性：

频率范围:100mhz至325mhz

电源电压:2.5V, 3.3 V

输出:HCSL

功能:输出使能(OE)

外部尺寸:3.2×2.5×1.05mm

相位抖动:85 fs类型(fo = 156.25MHz)SG3225HBN 1

更多相关EPSON晶振型号

编码 品牌 型号 频率 尺寸 输出方式 电源电压 工作温度
X1G0042410001 爱普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410002 爱普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410004 爱普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410005 爱普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410006 爱普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410007 爱普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410008 爱普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410009 爱普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410010 爱普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410011 爱普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410012 爱普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410014 爱普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410015 爱普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410016 爱普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410017 爱普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410020 爱普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410021 爱普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410023 爱普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410024 爱普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410025 爱普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410026 爱普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410027 爱普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410028 爱普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410029 爱普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410030 爱普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410031 爱普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410033 爱普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410034 爱普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410035 爱普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410036 爱普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410039 爱普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410040 爱普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410042 爱普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410043 爱普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410044 爱普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410045 爱普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410046 爱普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410047 爱普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410048 爱普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410049 爱普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410050 爱普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410052 爱普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410053 爱普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410054 爱普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410055 爱普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410058 爱普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410059 爱普生有源振荡器 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410061 爱普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410062 爱普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410063 爱普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410064 爱普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410065 爱普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410066 爱普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410067 爱普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410068 爱普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410069 爱普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410071 爱普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410072 爱普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410073 爱普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410074 爱普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410079 爱普生晶振 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410080 爱普生晶振 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410083 爱普生晶振 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410084 爱普生晶振 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
