频率：24MHZ
尺寸：2.5x2.0mm
E2SB谐振器,E2SB24E001801E,6G无线局域网晶振,鸿星小尺寸晶振，尺寸2.5x2.0mm，频率24MHZ，Hosonic台湾晶振，台湾无源晶体，SMD晶振，石英晶振，SMD石英晶体，石英SMD晶振，2520小尺寸晶振，石英晶体谐振器，四脚贴片晶振，水晶振动子，视听设备专用晶振，无线局域网晶振，仪器设备晶振，无线网络专用晶振，智能家居晶振，小型设备晶振，蓝牙音响专用晶振，高品质晶振，低损耗石英晶振，高性能贴片晶振，产品具有高品质低损耗的特点。
贴片晶体产品比较适合用于视听设备，无线局域网，仪器设备，无线网络，智能家居，小型设备，蓝牙音响，平板电脑等领域。E2SB谐振器,E2SB24E001801E,6G无线局域网晶振,鸿星小尺寸晶振.
E2SB谐振器,E2SB24E001801E,6G无线局域网晶振,鸿星小尺寸晶振，尺寸2.5x2.0mm，频率24MHZ，Hosonic台湾晶振，台湾无源晶体，SMD晶振，石英晶振，SMD石英晶体，石英SMD晶振，2520小尺寸晶振，石英晶体谐振器，四脚贴片晶振，水晶振动子，视听设备专用晶振，无线局域网晶振，仪器设备晶振，无线网络专用晶振，智能家居晶振，小型设备晶振，蓝牙音响专用晶振，高品质晶振，低损耗石英晶振，高性能贴片晶振，产品具有高品质低损耗的特点。
贴片晶体产品比较适合用于视听设备，无线局域网，仪器设备，无线网络，智能家居，小型设备，蓝牙音响，平板电脑等领域。E2SB谐振器,E2SB24E001801E,6G无线局域网晶振,鸿星小尺寸晶振.

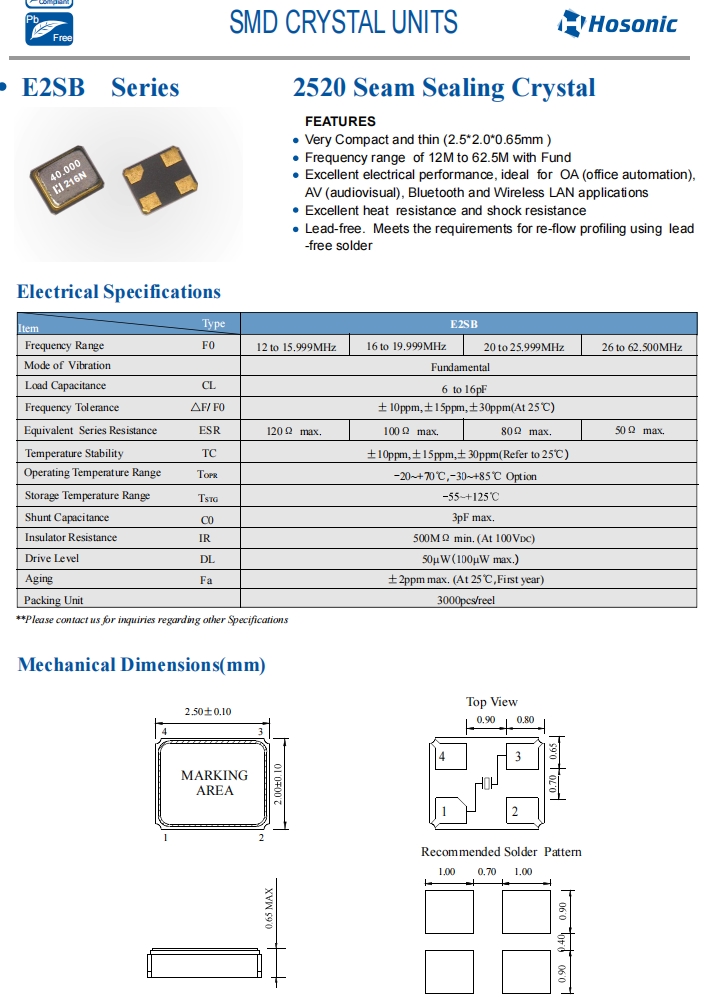

E2SB谐振器,E2SB24E001801E,6G无线局域网晶振,鸿星小尺寸晶振 参数表
|
Item Frequency Range |
Type F0 |
E2SB | |||||||||||||||||||
| 24MHz | 16 to 19.999MHz | 20 to 25.999MHz | 26 to 62.500MHz | ||||||||||||||||||
| Mode of Vibration | Fundamental | ||||||||||||||||||||
| Load Capacitance | CL | 6 to 16pF | |||||||||||||||||||
| Frequency Tolerance | ΔF/ F0 | ±10ppm, ±15ppm, ±30ppm(At 25℃) | |||||||||||||||||||
| Equivalent Series Resistance | ESR | 120Ω max. | 100Ω max. | 80Ω max. | 50Ω max. | ||||||||||||||||
| Temperature Stability | TC | ±10ppm, ±15ppm, ±30ppm(Refer to 25℃) | |||||||||||||||||||
| Operating Temperature Range | TOPR | -20~+70℃,-30~+85℃ Option | |||||||||||||||||||
| Storage Temperature Range | TSTG |

|
|||||||||||||||||||
| Shunt Capacitance | C0 | 3pF max. | |||||||||||||||||||
| Insulator Resistance | IR | 500MΩ min. (At 100VDC) | |||||||||||||||||||
| Drive Level | DL | 50μW(100μW max.) | |||||||||||||||||||
| Aging | Fa | ±2ppm max. (At 25℃,First year) | |||||||||||||||||||
| Packing Unit | 3000pcs/reel | ||||||||||||||||||||
E2SB谐振器,E2SB24E001801E,6G无线局域网晶振,鸿星小尺寸晶振 尺寸图
石英晶振产品特性：
非常紧凑和薄（2.5*2.0*0.65mm）
频率范围为12M至625M（带基金）
出色的电气性能，非常适合OA（办公自动化），
AV（视听）、蓝牙和无线局域网应用
优异的耐热性和抗震性
无铅。满足使用铅进行回流剖面分析的要求
更多相关Hosonic鸿星晶振型号
| Mfr Part # | Supplier | Description | Series | Frequency | Frequency Stability稳定度 |
| E2SB40E000104ECBB8 | Hosonic鸿星晶振 | XTAL 2520 40MHZ, 12PF/7/10/-30+9 | E2SB | 40 MHz | ±10ppm |
| E2SB38E0X0300E | Hosonic鸿星晶振 | XTAL 2520 38.4MHZ, 8PF SMD晶振 | E2SB | 38.4 MHz | ±10ppm |
| E2SB40E000107E | Hosonic鸿星晶振 | XTAL 2520 40MHZ 12PF | E2SB | 40 MHz | -12ppm, +20ppm |
| E2SB40E00010AE | Hosonic鸿星晶振 | XTAL 2520 40MHZ, 7PF | E2SB | 40 MHz | ±10ppm |
| E1SB24E00001EE | Hosonic鸿星晶振 | XTAL 2016 24MHZ, 18PF/30/30/-40+ | E1S | 24 MHz | ±30ppm |
| E1SB60E003701E | Hosonic鸿星晶振 | XTAL 2016 60MHZ 9PF | E1S | 60 MHz | ±20ppm |
| E2SB27E0X0000E | Hosonic鸿星晶振 | XTAL 2520 27.12MHZ 8PF | E2SB | 27.12 MHz | ±10ppm |
| E2SB24E001801E | Hosonic鸿星晶振 | XTAL 2520 24MHZ, 12PF | E2SB | 24 MHz | ±20ppm |
| E2SB40E000108E | Hosonic鸿星晶振 | XTAL 2520 40MHZ, 6PF/7/15/-40+10 | E2SB | 40 MHz | ±15ppm |
| E1SB25E000009E | Hosonic鸿星晶振 | XTAL 2016 25MHZ, 6PF/30/30/-30+8 | E1S | 25 MHz | ±30ppm |
| E1SB24E004000E | Hosonic鸿星晶振 | XTAL 2016 24MHZ, 18PF/10/10/-30+ | E1S | 24 MHz | ±10ppm |
| E1SB38E0X0001E | Hosonic鸿星晶振 | XTAL 2016 38.4MHZ, 10PF/10/10/-3 | E1S | 38.4 MHz | ±10ppm |
| E1SB40E00090AECBB8 | Hosonic鸿星晶振 | XTAL 2016 40MHZ, 12PF/10/20/-30+ | E1S | 40 MHz | ±20ppm |
| E1SB48E000506E | Hosonic鸿星晶振 | XTAL 2016 48MHZ,11.1PF | E1S | 48 MHz | ±16ppm |
| E1SB25E001000E | Hosonic鸿星晶振 | XTAL 2016 25MHZ, 18PF/30/30/-20+ | E1S | 25 MHz | ±30ppm |
| E2SB12E000005E | Hosonic鸿星晶振 | XTAL 2520 12MHZ, 12PF | E2SB | 12 MHz | ±20ppm |
| E1SB37E0X0002E | Hosonic鸿星晶振 | XTAL 2016 37.4MHZ, 16PF | E1S | 37.4 MHz | ±10ppm |
| E1SB32E001501ECBB8 | Hosonic鸿星晶振 | XTAL 2016 32MHZ, 9PF/10/10/-20+7 | E1S | 32 MHz | ±10ppm |
| E2SB16E00000ME | Hosonic鸿星晶振 | XTAL 2520 16MHZ 12PF | E2SB | 16 MHz | ±30ppm |
| E2SB26E001201E | Hosonic鸿星晶振 | XTAL 2520 26MHZ, 9PF | E2SB | 26 MHz | ±13ppm |
| E2SB32E001201E | Hosonic鸿星晶振 | XTAL 2520 32MHZ,12P | E2SB | 32 MHz | ±10ppm |
| E2SB32E00000LE | Hosonic鸿星晶振 | E2SB | 32MHz | ±10ppm | |
| E2SB37E0X0002E | Hosonic鸿星晶振 | E2SB | 37.4MHz | ±10ppm | |
| E2SB24E000016E | Hosonic鸿星晶振 | E2SB | 24MHz | ±10ppm | |
| E2SB54E000000E | Hosonic鸿星晶振 | E2SB | 54MHz | ±10ppm | |
| E2SB48E000009E | Hosonic鸿星晶振 | E2SB | 48MHz | ±10ppm | |
| E2SB50E00000EE | Hosonic鸿星晶振 | E2SB | 50MHz | ±14ppm | |
| E2SB37E0X0004E | Hosonic鸿星晶振 | E2SB | 37.4MHz | ±10ppm | |
| E2SB40E000007E | Hosonic鸿星晶振 | E2SB | 40MHz | ±10ppm | |
| E2SB40E000003E | Hosonic鸿星晶振 | E2SB | 40MHz | ±10ppm | |
| E2SB24E00001NE | Hosonic鸿星晶振 | E2SB | 24MHz | ±15ppm | |
| E2SB40E00000RE | Hosonic鸿星晶振 | E2SB | 40MHz | ±30ppm | |
| E2SB38E0X0007E | Hosonic鸿星晶振 | E2SB | 38.400MHz | ±10ppm | |
| E2SB54E000009E | Hosonic鸿星晶振 | E2SB | 54MHz | ±5ppm | |
| E2SB26E00000GE | Hosonic鸿星晶振 | E2SB | 26MHz | ±10ppm | |
| E2SB26E000007E | Hosonic鸿星晶振 | E2SB | 26MHz | ±10ppm | |
| E2SB40E000006E | Hosonic鸿星晶振 | E2SB | 40MHz | ±10ppm | |
| E2SB40E00000EE | Hosonic鸿星晶振 | E2SB | 40MHz | ±10ppm | |
| E2SB26E00000DE | Hosonic鸿星晶振 | E2SB | 26MHz | ±10ppm | |
| E2SB50E00000CE | Hosonic鸿星晶振 | E2SB | 50MHz | ±10ppm | |
| E2SB48E000004E | Hosonic鸿星晶振 | E2SB | 48MHz | ±10ppm | |
| E2SB16E000014E | Hosonic鸿星晶振 | E2SB | 16MHz | ±10ppm | |
| E2SB40E000009E | Hosonic鸿星晶振 | E2SB | 40MHz | ±10ppm | |
| E2SB26E000005E | Hosonic鸿星晶振 | E2SB | 26.000MHz | ±10ppm | |
| E2SB12E00000CE | Hosonic鸿星晶振 | E2SB | 12MHz | ±20ppm | |
| E2SB16E000007E | Hosonic鸿星晶振 | E2SB | 16MHz | ±10ppm | |
| E2SB16E00000VE | Hosonic鸿星晶振 | E2SB | 16MHz | ±10ppm | |
| E2SB27E00000KE | Hosonic鸿星晶振 | E2SB | 27MHz | ±10ppm | |
| E2SB40E00000WE | Hosonic鸿星晶振 | E2SB | 40MHz | ±10ppm | |
| E2SB16E000003E | Hosonic鸿星晶振 | E2SB | 16MHz | ±10ppm | |
| E2SB27E00000EE | Hosonic鸿星晶振 | E2SB | 27.000MHz | ±10ppm | |
| E2SB32E000018E | Hosonic鸿星晶振 | E2SB | 32MHz | ±10ppm | |
| E2SB26E000103E | Hosonic鸿星晶振 | E2SB | 26MHz | ±10ppm | |
| E2SB40E00000JE | Hosonic鸿星晶振 | E2SB | 40MHz | ±10ppm | |
| E2SB12E000014E | Hosonic鸿星晶振 | E2SB | 12MHz | ±10ppm | |
| E2SB38E0X000HE | Hosonic鸿星晶振 | E2SB | 38.4MHz | ±10ppm | |
| E2SB24E00000LE | Hosonic鸿星晶振 | E2SB | 24.000MHz | ±10ppm | |
| E49B8E000001AE | Hosonic鸿星晶振 | E49B | 8MHz | ±20ppm | |
| E2SB24E00000ZE | Hosonic鸿星晶振 | E2SB | 24MHz | ±10ppm | |
| E2SB27E0X000CE | Hosonic鸿星晶振 | E2SB | 27.12MHz | ±10ppm | |
| E49B13E0X000FE10C0 | Hosonic鸿星晶振 | E49B | 13.560MHz | ±20ppm | |
| E49B4E000000VE10C0 | Hosonic鸿星晶振 | E49B | 4MHz | ±20ppm | |
| E49B11E0X000YE10C0 | Hosonic鸿星晶振 | E49B | 11.0592MHz | ±20ppm | |
| E49A8E00000FE10CO | Hosonic鸿星晶振 | E49A | 8MHz | ±20ppm | |
| E49A16E00000KE10CO | Hosonic鸿星晶振 | E49A | 16M | ±20ppm | |
| E49A25E000033E | Hosonic鸿星晶振 | E49A | 20pF | ±30ppm | |
| E49A8E000001CE | Hosonic鸿星晶振 | E49A | |||
| E49B10E00000TE | Hosonic鸿星晶振 | E49B | |||
| E49B16E00000KE | Hosonic鸿星晶振 | HC-49SM | 16MHz | ||
| E49B4E000000GE | Hosonic鸿星晶振 | HC-49SM | 4MHz | ±30ppm | |
| E49B4E00X000ZE | Hosonic鸿星晶振 | E49B | |||
| E49B7E00X000AE | Hosonic鸿星晶振 | HC-49SM | 7.3728MHz | ±30ppm | |
| E49B8E00X000CE | Hosonic鸿星晶振 | E49B | |||
| ESB11.0592F18E33F | Hosonic鸿星晶振 | HC-49SM | 11.0592MHz | ±30ppm | |
| ESB12.0000F18E33F | Hosonic鸿星晶振 | HC-49SM | 12MHz | ±30ppm | |
| ESB14.7456F18E33F | Hosonic鸿星晶振 | HC-49SM | 14.7456MHz | ±30ppm | |
| ESB16.0000F18E33F | Hosonic鸿星晶振 | HC-49SM | 16MHz | ±30ppm | |
| ESB18.4320F18E33F | Hosonic鸿星晶振 | HC-49SM | 18.432MHz | ±30ppm | |
| ESB20.0000F18E33F | Hosonic鸿星晶振 | HC-49SM | 20MHz | ±30ppm | |
| ESB24.0000F18E33F | Hosonic鸿星晶振 | HC-49SM | 24MHz | ±30ppm | |
| ESB24.5760F18E33F | Hosonic鸿星晶振 | HC-49SM | 24.576MHz | ±30ppm | |
| ESB25.0000F18E33F | Hosonic鸿星晶振 | HC-49SM | 25MHz | ±30ppm | |
| ESB3.68640F18E33F | Hosonic鸿星晶振 | HC-49SM | 3.6864MHz | ±30ppm | |
| ESB8.00000F18E33F | Hosonic鸿星晶振 | HC-49SM | 8MHz | ±30ppm |
