Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳讯差分振荡器
prevnext

Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳讯差分振荡器

频率：26MHZ

尺寸：7.0×5.0mm

Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳讯差分振荡器，尺寸7.0×5.0mm，频率26MHZ，电压3.3V，输出逻辑CMOS，有源贴片晶振，有源晶体振荡器，六脚贴片晶振，7050mm有源晶振，石英晶体振荡器，CMOS输出有源晶振，CMOS贴片型振荡器，OSC振荡器，SMD有源振荡器，低抖动振荡器，低电压有源晶振，低损耗有源晶振，低相位有源振荡器，低功耗有源晶振，低相噪有源晶振，高质量晶振，网络设备有源晶振，测试测量有源晶振，ASIC时钟生成有源晶振，工业应用有源晶振，具有高质量低抖动的特点.

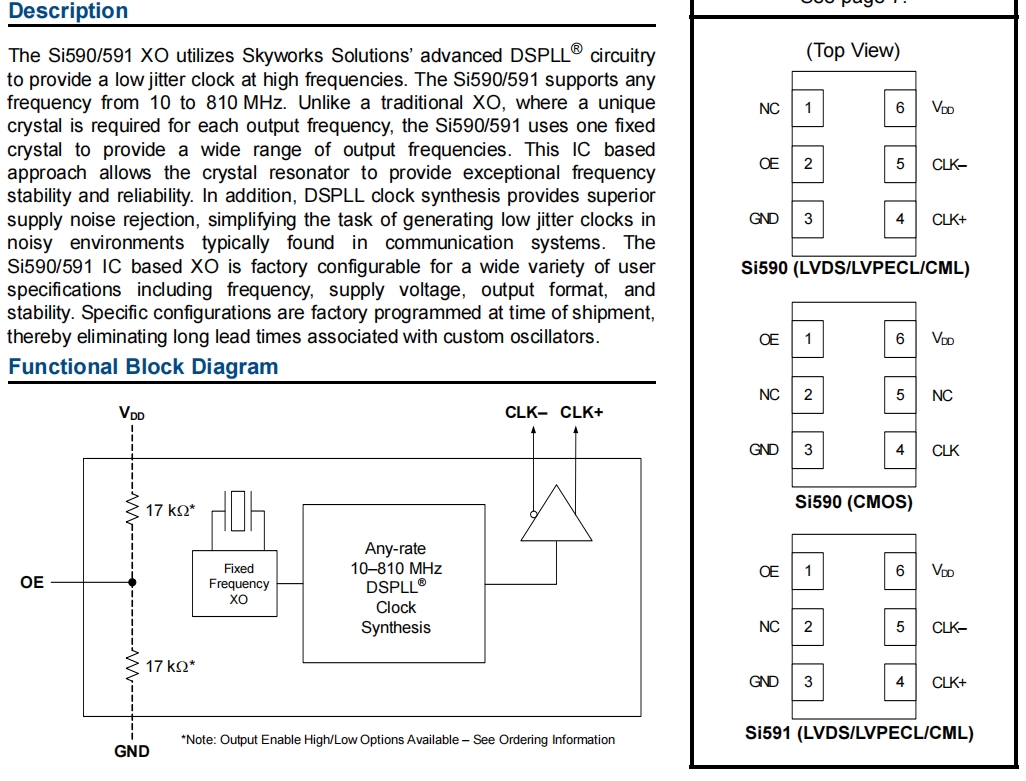

Si590/591 XO石英晶体振荡器采用Skyworks Solutions的先进DSPLL®电路以提供高频下的低抖动时钟。Si590/591支持任何频率为10至810MHz。不同于传统的XO每个输出频率都需要晶体，Si590/591使用一个固定的晶体，以提供宽范围的输出频率。此IC基于这种方法允许晶体谐振器提供特殊的频率稳定性和可靠性。此外，DSPLL时钟合成提供了卓越的性能电源噪声抑制，简化了在通信系统中常见的噪声环境.Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳讯差分振荡器.

订购热线：0755-29952551
QQ咨询 财富通

Abracon-2

LH-1

Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳讯差分振荡器，尺寸7.0×5.0mm，频率26MHZ，电压3.3V，输出逻辑CMOS，有源贴片晶振，有源晶体振荡器，六脚贴片晶振，7050mm有源晶振，石英晶体振荡器，CMOS输出有源晶振，CMOS贴片型振荡器，OSC振荡器，SMD有源振荡器，低抖动振荡器，低电压有源晶振，低损耗有源晶振，低相位有源振荡器，低功耗有源晶振，低相噪有源晶振，高质量晶振，网络设备有源晶振，测试测量有源晶振，ASIC时钟生成有源晶振，工业应用有源晶振，具有高质量低抖动的特点.

Si590/591 XO石英晶体振荡器采用Skyworks Solutions的先进DSPLL®电路以提供高频下的低抖动时钟。Si590/591支持任何频率为10至810MHz。不同于传统的XO每个输出频率都需要晶体，Si590/591使用一个固定的晶体，以提供宽范围的输出频率。此IC基于这种方法允许晶体谐振器提供特殊的频率稳定性和可靠性。此外，DSPLL时钟合成提供了卓越的性能电源噪声抑制，简化了在通信系统中常见的噪声环境.Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳讯差分振荡器.

LH-2

Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳讯差分振荡器    参数表

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage1 V DD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75
1.8 V option 1.71 1.8 1.89
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS 		—
—
—
— 		110
100
90
80 		125
110
100
90 		mA
Tristate mode — 60 75
Output Enable (OE)2 VIH 0.75 x V DD — — V
VIL — — 0.5
Operating Temperature Range TA –40 — 85 ºC
Parameter Symbol Test Condition Min Typ Max Units
Nominal Frequency1,2 fO LVPECL/LVDS/CML 10 — 810 MHz
CMOS 10 — 160
Initial Accuracy fi Measured at +25 °C at time of
shipping 		— ±1.5 — ppm
Total Stability Note 3, second option code “D”         ±20 ppm
Note 3, second option code “C”         ±30 ppm
Note 4, second option code “B” — — ±50 ppm
Note 4, second option code “A” — — ±100 ppm
Temperature Stability second option code “D” — — ±7 ppm
second option code “C”         ±20 ppm
second option code “B”         ±25 ppm
second option code “A” — — ±50 ppm
Powerup Time5 tOSC — — 10 ms
Parameter Symbol Test Condition Min Typ Max Units
LVPECL Output Option1 VO mid-level V DD – 1.42     V DD – 1.25 V
VOD swing (diff) 1.1     1.9 VPP
VSE swing (single-ended) 0.55     0.95 VPP
LVDS Output Option2 VO mid-level 1.125 1.20 1.275 V
VOD swing (diff) 0.5 0.7 0.9 VPP
CML Output Option2 VO 2.5/3.3 V option mid-level — V DD – 1.30 — V
1.8 V option mid-level — V DD – 0.36 —
VOD 2.5/3.3 V option swing (diff) 1.10 1.50 1.90 VPP
1.8 V option swing (diff) 0.35 0.425 0.50
CMOS Output Option3 V OH 0.8 x V DD — V DD V
VOL — — 0.4
Rise/Fall time (20/80%) tR,t F LVPECL/LVDS/CML — — 350 ps
CMOS with CL= 15 pF — 2 — ns
Symmetry (duty cycle) SYM LVPECL:   V DD – 1.3 V (diff)
LVDS:        1.25 V (diff)
CMOS:      V DD/2 		45 — 55 %

LH-3

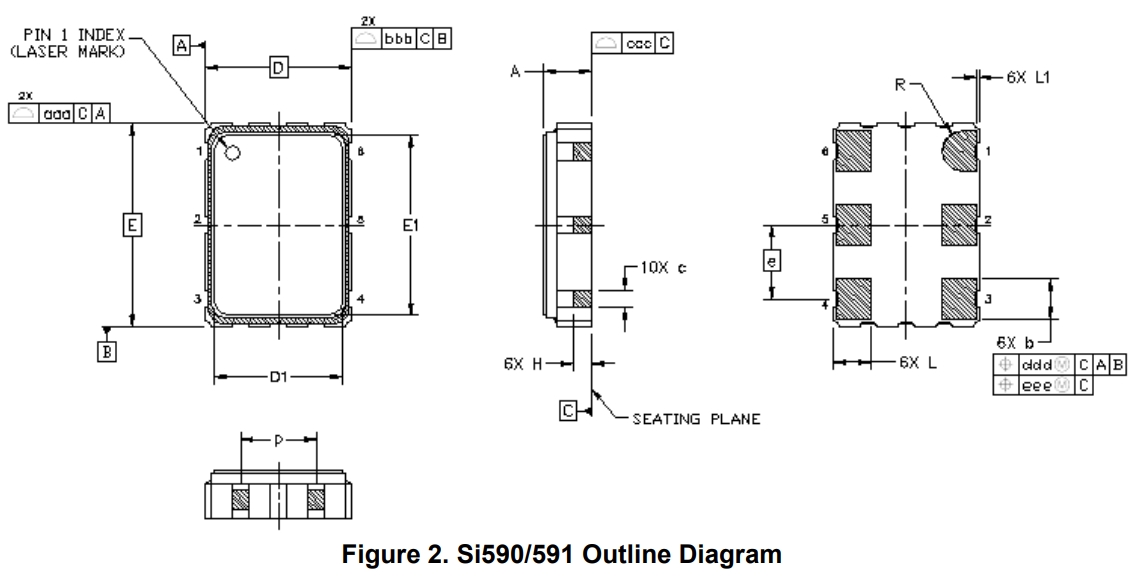

Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳讯差分振荡器    尺寸图

Si591 Si590 7050

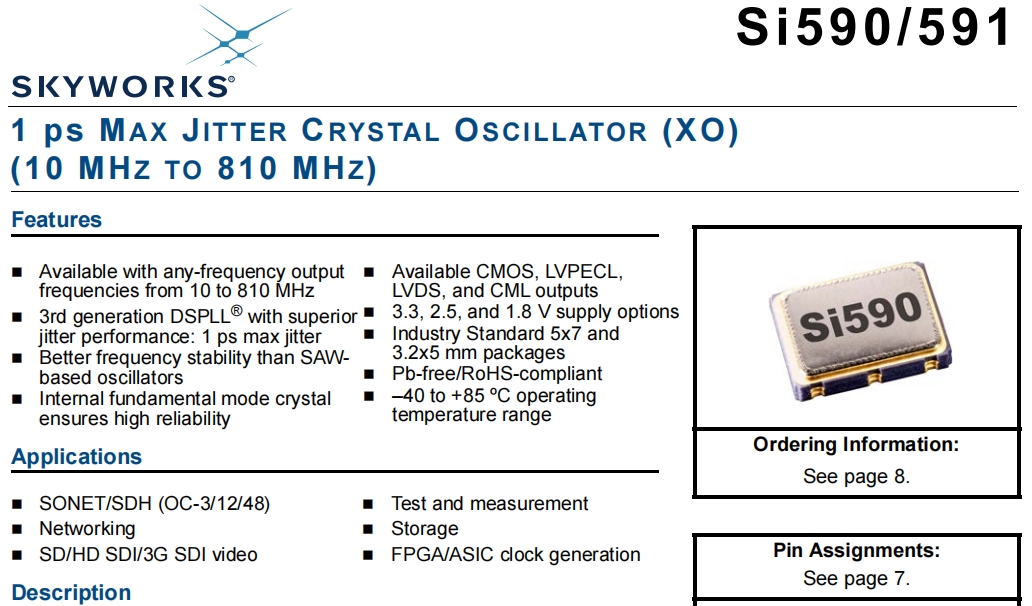

低耗能晶振产品特点:

可用于任何频率输出

频率从10到810兆赫

具有卓越性能的第三代DSPLL®

抖动性能：最大抖动1ps

比SAW振荡器具有更好的频率稳定性

内部基模晶体

确保高可靠性

可用的CMOS、LVPECL、LVDS和CML输出

3.3、2.5和1.8 V电源选项

行业标准5x7和3.2x5mm包装

无铅/符合RoHS

–40至+85ºC运行温度范围

Si590 1Si590 2
