频率：33MHZ
尺寸：5.0x3.2mm
276系列晶体,奥斯康利小体积晶振,276-33.0M-SR-20GW-TR,33MHZ,5032mm,水晶振动子,SMD晶体,欧美石英晶振,Oscilent贴片晶振,33MHZ石英晶振,5032mm谐振器,贴片石英晶振,无源晶振,四脚贴片晶振,尺寸5.0x3.2mm,频率33MHZ,工作温度-40~+85℃,高可靠晶振,环保晶振,高性能晶振,高精度晶振,低功耗晶振,智能音响晶振,无线应用晶振,小家电晶振,便携式设备晶振.
276系列晶体,奥斯康利小体积晶振,276-33.0M-SR-20GW-TR,33MHZ,5032mm特点:
1.0mm最大低剖面
石英晶体稳定性强/可靠性高
宽频率范围
磁带和卷轴
RoHs/无铅合规

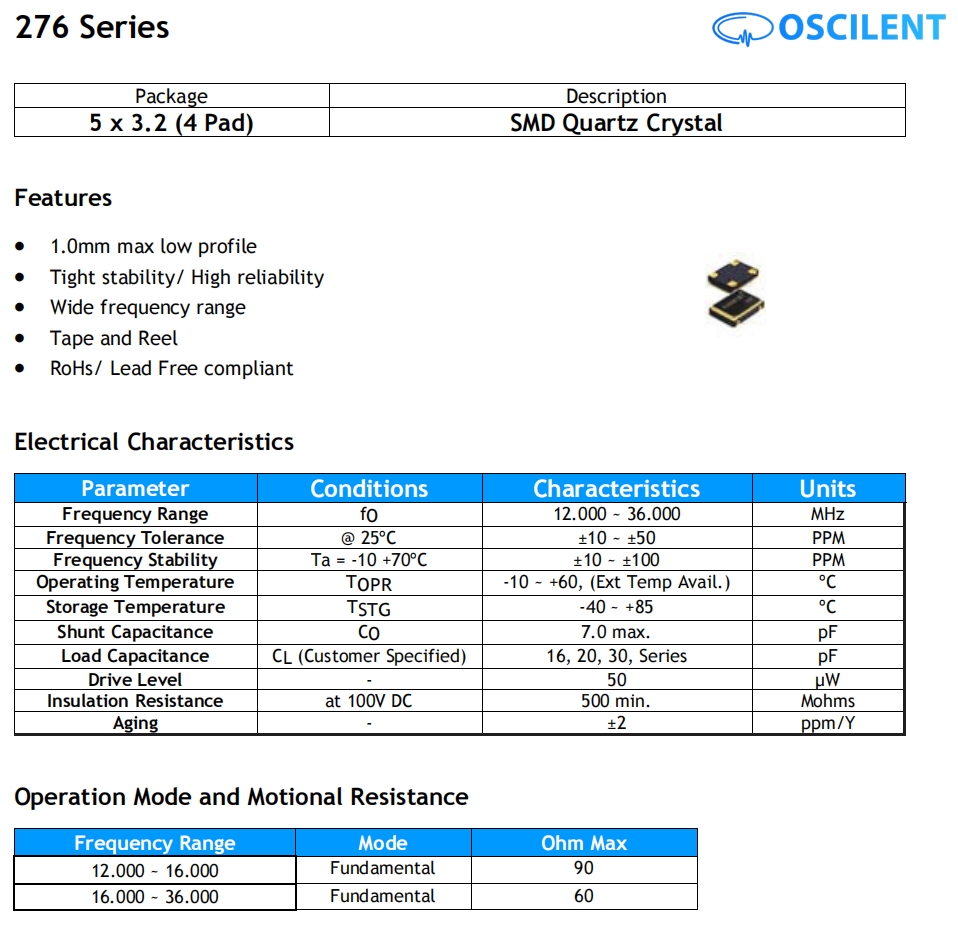

276系列晶体,奥斯康利小体积晶振,276-33.0M-SR-20GW-TR,33MHZ,5032mm 参数表
| Parameter | Conditions | Characteristics | Units | |||||||
| Frequency Range | fO | 33.000 | MHz | |||||||
| Frequency Tolerance | @ 25ºC | ±10 ~ ±50 | PPM | |||||||
| Frequency Stability | Ta = -10 +70ºC | ±10 ~ ±100 | PPM | |||||||
| Operating Temperature | TOPR | -10 ~ +60, (Ext Temp Avail.) | ºC | |||||||
| Storage Temperature | TSTG | -40 ~ +85 | ºC | |||||||
| Shunt Capacitance | CO | 7.0 max. | pF | |||||||
| Load Capacitance | CL (Customer Specified) | 16, 20, 30, Series | pF | |||||||
| Drive Level | - | 50 | µW | |||||||
| Insulation Resistance | at 100V DC | 500 min. | Mohms | |||||||
| Aging | - | ±2 | ppm/Y | |||||||

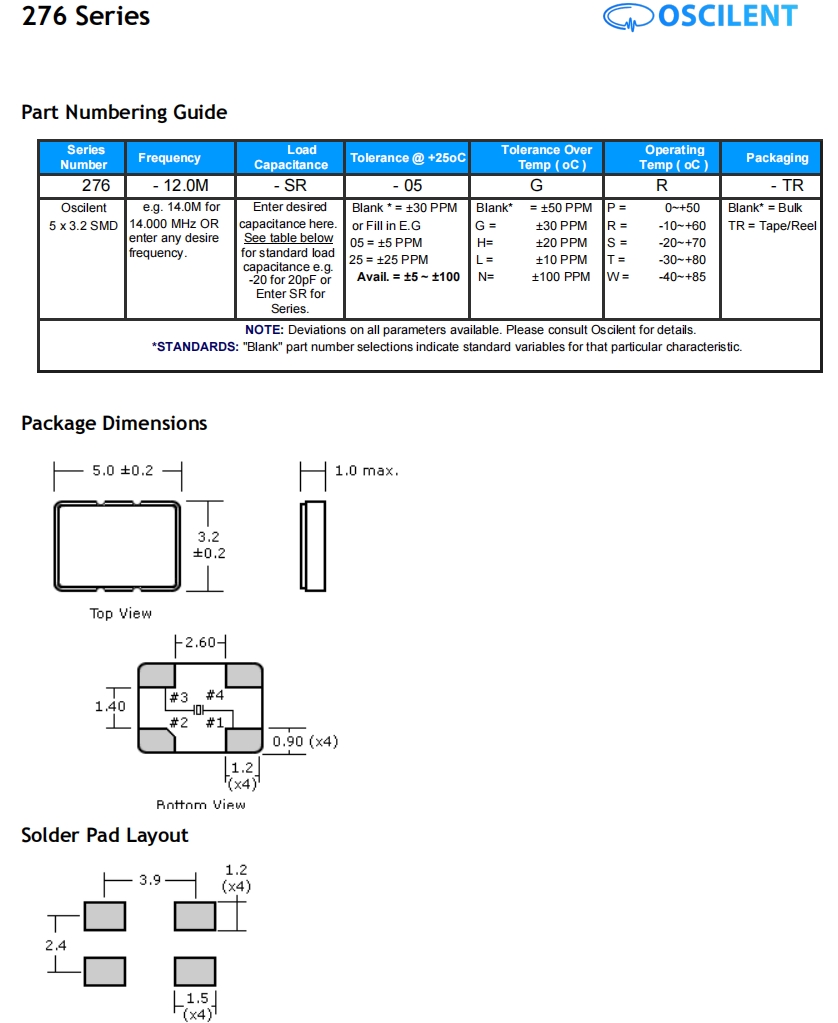

276系列晶体,奥斯康利小体积晶振,276-33.0M-SR-20GW-TR,33MHZ,5032mm 尺寸图
