频率：32.768KHZ
尺寸：8.0x3.8mm
223-000306-20,8038mm,Oscilent时钟晶振,223系列,32.768KHZ,欧美进口晶振,奥斯康利无源晶振,贴片无源晶振,陶瓷晶振,轻薄型晶振,32.768K贴片晶振,音叉晶体,陶瓷谐振器,SMD晶振,8038mm晶体谐振器,尺寸8.0x3.8mm,频率32.768KHZ,负载6.0pF,无铅环保晶振,高性能晶振,高可靠晶振,低损耗晶振,无线鼠标晶振,电话机晶振,数字电表晶振,时钟应用晶振.
223-000306-20,8038mm,Oscilent时钟晶振,223系列,32.768KHZ特点:
低调,长期稳定性
贴片晶体行业标准占地面积,卓越的抗震性能
卓越的环境特性,磁带和卷轴
RoHs/无铅合规

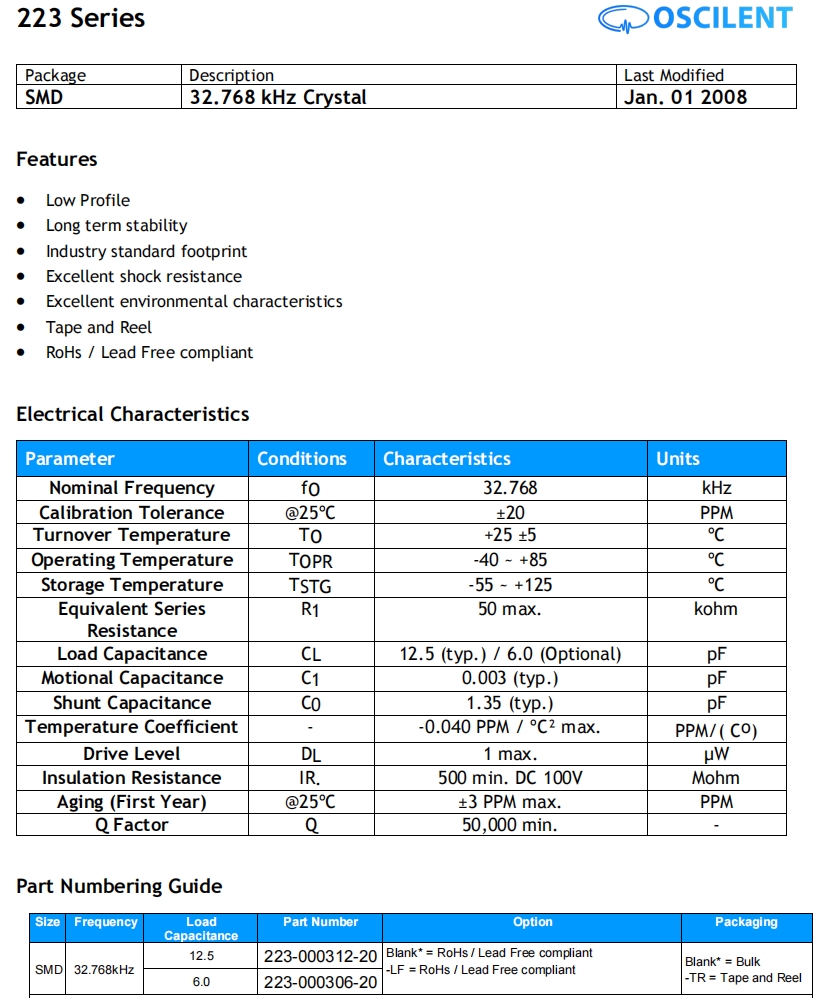

223-000306-20,8038mm,Oscilent时钟晶振,223系列,32.768KHZ 参数表
| Parameter | Conditions | Characteristics | Units | |||||
| Nominal Frequency | fO | 32.768 | kHz | |||||
| Calibration Tolerance | @25ºC | ±20 | PPM | |||||
| Turnover Temperature | TO | +25 ±5 | ºC | |||||
| Operating Temperature | TOPR | -40 ~ +85 | ºC | |||||
| Storage Temperature | TSTG | -55 ~ +125 | ºC | |||||
|
Equivalent Series Resistance |
R1 | 50 max. | kohm | |||||
| Load Capacitance | CL | 12.5 (typ.) / 6.0 (Optional) | pF | |||||
| Motional Capacitance | C1 | 0.003 (typ.) | pF | |||||
| Shunt Capacitance | C0 | 1.35 (typ.) | pF | |||||
| Temperature Coefficient | - | -0.040 PPM / ºC² max. | PPM/( Co) | |||||
| Drive Level | DL | 1 max. | µW | |||||
| Insulation Resistance | IR. | 500 min. DC 100V | Mohm | |||||
| Aging (First Year) | @25ºC | ±3 PPM max. | PPM | |||||
| Q Factor | Q | 50,000 min. | - | |||||

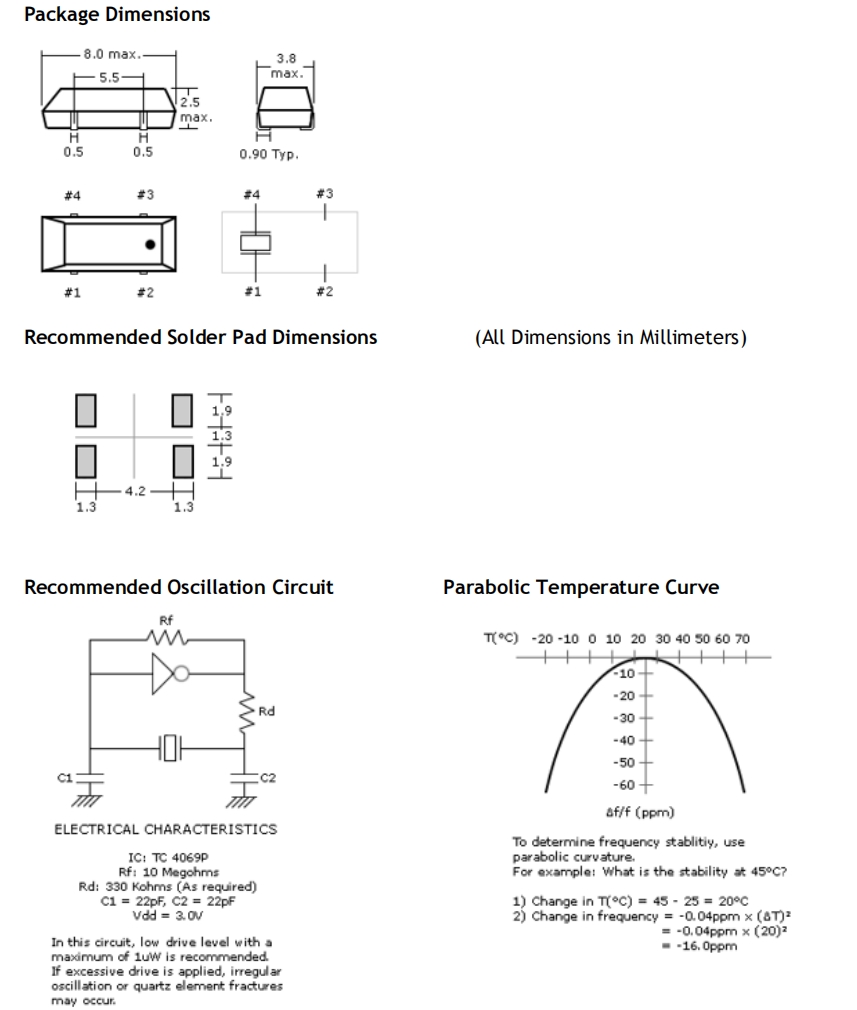

223-000306-20,8038mm,Oscilent时钟晶振,223系列,32.768KHZ 尺寸图
