灵活性的Aker品牌LVPECL差分晶振说明书，随着步入高新技术的时代，新兴的产品不断推陈出新，为行业带来了蓬勃生机的发展以外，也面临着产品出现供不应求的状态，为了缓解目前的市场需求，智慧的Aker公司利用自身资源，精心研制大量优质的产品，产品采用创新设计理念研制而成。Aker Technology提供了一系列领先的石英晶体、时钟晶体振荡器、TCXOs和VCXOs，包括一系列面向汽车行业的AECQ-200产品。

Aker Technology的持续创新为频率控制市场带来了更大的设计灵活性，新型S2A LVPECL振荡器采用2.5 mm x 2.0 mm低抖动陶瓷封装

技术亮点

• 更多行业标准包装选项
• LVPECL技术非常适合网络、数据中心和高速转换器
• 低抖动，仅0.3 ps
• 快速交付样品和生产

Aker Technology USA是一家创新的、价格有竞争力的频率控制产品的全球制造商，它发布了一款新的表面安装有源晶体振荡器它采用2.5mmx2.0mm陶瓷封装。新型S2A LVPECL(低压正发射极耦合逻辑)振荡器提供0.3 ps的低抖动，是各种关键通信设备的理想器件，包括网络设备、数据中心和高速转换器。

LVPECL等差分传输技术具有高抗扰度，受线路衰减的影响较小，可用于在更长的线路上传输更高的数据速率。LVPECL电路技术的大电压摆幅有助于S2A令人印象深刻的低抖动性能。灵活性的Aker品牌LVPECL差分晶振说明书.

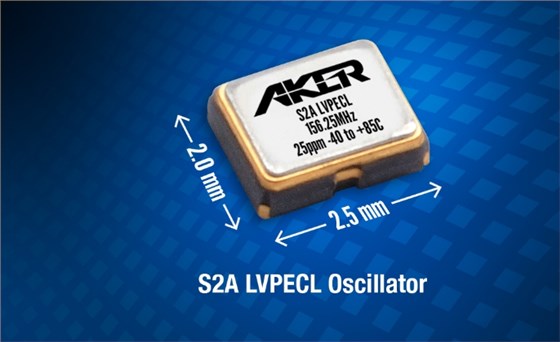

有源振荡器是一种紧凑型表面贴装器件(SMD ),尺寸为2.5mmx2.0mmx1.1mm，可快速交付样品和生产。这对于加快产品开发至关重要，因为电子元件的供应链问题仍然存在问题。

储备频率包括25MHz、100MHz、125MHz、155.52MHz和156.25MHz。频率范围为13.50 MHz至156.25 MHz，频率稳定性范围为25 ppm至100 ppm，每年老化3 ppm。S2A也有几种温度选择，包括-20°C到70°C；-40摄氏度至85摄氏度；和-40℃至125℃之间

Aker Technology USA, a global manufacturer of innovative, competitively priced frequency control products, has released a newsurface mount crystal oscillatorthat comes in a 2.5 mm x 2.0 mm ceramic package. The new S2A LVPECL (low voltage positive emitter coupled logic) oscillator provides a low jitter of 0.3 ps, making it an ideal component for a variety of critical communications equipment including network equipment, data centers and high-speed converters.

Because of their high noise immunity, differential transmission techniques, like LVPECL, are less influenced by line attenuation and can be used to transmit higher data rates over longer line lengths. The large voltage swing of LVPECL circuit technology contributes to the S2A’s impressively low jitter performance.

Eric Greenberg, Director of North American Sales for Aker Technology, noted, “Having access to an LVPECL oscillator that can handle high frequencies, while offering low jitter in an industry-standard package configuration enables the industry to develop advanced, high-end communications equipment that will operate reliable and efficiently. Our innovative, new S2A comes in a range of parameters that will cost-effectively fit the bill for most applications using fast protocols, like Gigabit Ethernet and Fibre Channel.”

The crystal oscillator comes as a compact surface mount device (SMD) measuring 2.5 mm x 2.0 mm x 1.1 mm, with fast delivery available for samples and production runs. This is critical to expedited product development, as supply chain issues in electronics components is still proving problematic.

Stocked frequencies include 25 MHz, 100 MHz, 125 MHz, 155.52 MHz and 156.25 MHz. Frequency range is 13.50 MHz to 156.25 MHz and frequency stability ranges from ±25 ppm to ±100 ppm, with ±3 ppm aging per year. The S2A comes in several temperature options as well, including -20°C to 70°C; -40°C to 85°C; and -40°C to 125°C.
