汽车遥控器应用晶振FA-238V爱普生无源晶振编码Q22FA23V0014900
出众的工业设计有助于提高产品的辨识度,从众多竞争对手中脱颖而出,美国苹果公司就是工业设计典型的成功案例.生产橡胶按钮制品发展至今客户已经遍及全球,爱普生晶振其50%以上的产品远销海外.尽管遭遇金融风暴但获利状况反而逆势增长,究其原因在于恶劣的经济环境是考验企业生存力的试金石,一些运营状况不佳的企业挺不过危机被淘汰,从而形成新的市场格局,而坚持到最后的企业可能取得更多的市场份额.
FA-238V爱普生无源晶振编码Q22FA23V0014900,汽车遥控器应用晶振
与往年展出电子元件不同的是上海站电子元器件专区出现了外观设计相关零配件的展台,显示出电子行业对工业设计的注重正与日俱增.石英晶体谐振器展台几乎是按钮的世界,遥控器、手机、电脑键盘、电话数字按钮、汽车遥控钥匙按钮各种键盘. 目前已经跻身全球导电橡胶前十强行列,拥有4家制造厂分别位于中国台湾地区、上海、中国香港地区以及广东.如果说IC是电子产品的器官,电子元件是连接各脏器的血管神经,那么按钮、外壳就相当于一层皮肤.FA-238V爱普生无源晶振编码Q22FA23V0014900,汽车遥控器应用晶振
爱普生晶振编码
长x宽x高
型号
石英晶振频率
负载
频率25°C
频率公差
工作温度范围
ESR最大
Q22FA23V0006900
3.2x2.5x0.7mm
FA-238V
12.000000MHz
10pF
+/-15ppm
+/-15ppm
-20to+70°C
≤100Ω
Q22FA23V0008200
3.2x2.5x0.7mm
FA-238V
14.318180MHz
16pF
+/-50ppm
+/-30ppm
-20to+70°C
≤80Ω
Q22FA23V0008500
3.2x2.5x0.7mm
FA-238V
12.288000MHz
8pF
+/-50ppm
+/-30ppm
-20to+70°C
≤100Ω
Q22FA23V0008600
3.2x2.5x0.7mm
FA-238V
14.745600MHz
12pF
+/-50ppm
+/-30ppm
-20to+70°C
≤80Ω
Q22FA23V0009500
3.2x2.5x0.7mm
FA-238V
12.000000MHz
16pF
+/-50ppm
+/-30ppm
-20to+70°C
≤100Ω
Q22FA23V0010300
3.2x2.5x0.7mm
FA-238V
14.318180MHz
12.5pF
+/-30ppm
+/-30ppm
-20to+70°C
≤80Ω
Q22FA23V0010600
3.2x2.5x0.7mm
FA-238V
12.000000MHz
11pF
+/-30ppm
+/-30ppm
-20to+70°C
≤100Ω
Q22FA23V0010700
3.2x2.5x0.7mm
FA-238V
12.000000MHz
10pF
+/-50ppm
+/-50ppm
-40to+85°C
≤100Ω
Q22FA23V0011400
3.2x2.5x0.7mm
FA-238V
14.318180MHz
18pF
+/-50ppm
+/-30ppm
-20to+70°C
≤80Ω
Q22FA23V0011900
3.2x2.5x0.7mm
FA-238V
12.500000MHz
16pF
+/-50ppm
+/-30ppm
-20to+70°C
≤100Ω
Q22FA23V0012300
3.2x2.5x0.7mm
FA-238V
13.560000MHz
12pF
+/-20ppm
+/-30ppm
-40to+85°C
≤80Ω
Q22FA23V0013100
3.2x2.5x0.7mm
FA-238V
12.000000MHz
18pF
+/-50ppm
+/-30ppm
-20to+70°C
≤100Ω
Q22FA23V0013600
3.2x2.5x0.7mm
FA-238V
12.000000MHz
8pF
+/-50ppm
+/-30ppm
-20to+70°C
≤100Ω
Q22FA23V0014400
3.2x2.5x0.7mm
FA-238V
12.000000MHz
10pF
+/-15ppm
+/-30ppm
-20to+70°C
≤100Ω

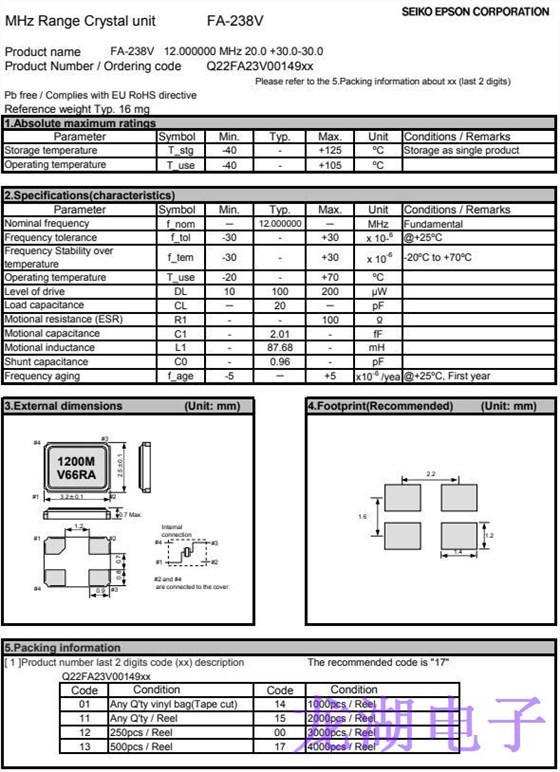

Q22FA23V0014900
3.2x2.5x0.7mm
FA-238V
12.000000MHz
20pF
+/-30ppm
+/-30ppm
-20to+70°C
≤100Ω
Q22FA23V0015000
3.2x2.5x0.7mm
FA-238V
12.000000MHz
10pF
+/-10ppm
+/-10ppm
-20to+70°C
≤100Ω
Q22FA23V0016000
3.2x2.5x0.7mm
FA-238V
12.000000MHz
16pF
+/-30ppm
+/-30ppm
-20to+70°C
≤100Ω
Q22FA23V0016200
3.2x2.5x0.7mm
FA-238V
12.288000MHz
10pF
+/-50ppm
+/-30ppm
-20to+70°C
≤100Ω
Q22FA23V0016400
3.2x2.5x0.7mm
FA-238V
14.318180MHz
9pF
+/-50ppm
+/-30ppm
-20to+70°C
≤80Ω
Q22FA23V0017000
3.2x2.5x0.7mm
FA-238V
12.000000MHz
12pF
+/-30ppm
+/-30ppm
-20to+70°C
≤100Ω
Q22FA23V0017800
3.2x2.5x0.7mm
FA-238V
13.560000MHz
18pF
+/-50ppm
+/-30ppm
-20to+70°C
≤80Ω
Q22FA23V0017900
3.2x2.5x0.7mm
FA-238V
12.500000MHz
10pF
+/-50ppm
+/-30ppm
-20to+70°C
≤100Ω
Q22FA23V0018000
3.2x2.5x0.7mm
FA-238V
14.745600MHz
16pF
+/-50ppm
+/-30ppm
-20to+70°C
≤80Ω
Q22FA23V0019200
3.2x2.5x0.7mm
FA-238V
12.288000MHz
10pF
+/-30ppm
+/-30ppm
-20to+70°C
≤100Ω
Q22FA23V0019300
3.2x2.5x0.7mm
FA-238V
12.000000MHz
12.5pF
+/-50ppm
+/-30ppm
-20to+70°C
≤100Ω
