领先同行MtronPTI的通用数据链路产品组合(CDL)

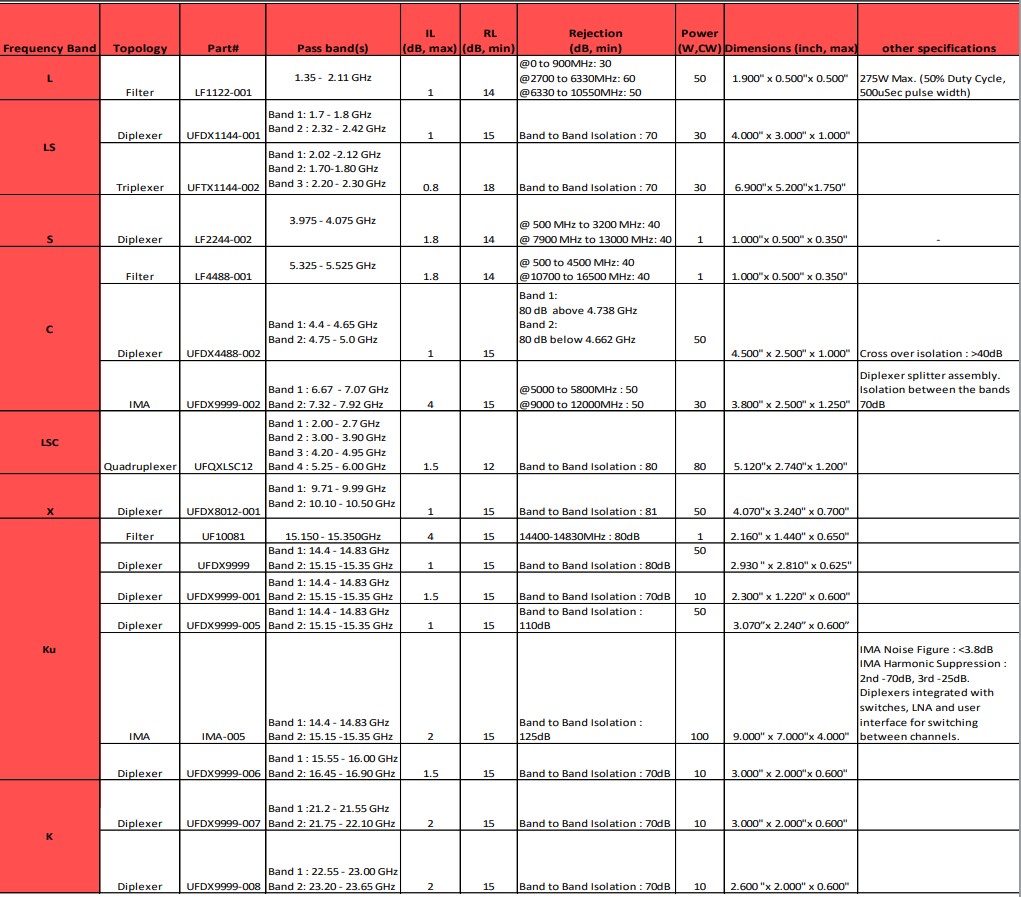

MtronPTI’s K-band diplexer, the UFDX9999-008, is one product of a broad portfolio of products that support Common Data Link (CDL) applications. MtronPTI’s oscillators, filters, multiplexers and integrated assemblies enable secure, wideband, real-time uplink and downlink transmission of payload control and sensor data via a CDL. Products features include superior channel to channel isolation, low insertion loss, small size and in many cases high power handling. MtronPTI has successfully designed and delivered microwave filters and integrated microwave assemblies into numerous CDL applications and is advancing the technology daily. These products are qualified on datalinks for space, manned and unmanned aircraft, on the move and fixed ground stations, shipboard, beyond the line of site wideband satellite communications and ground unmanned vehicle markets

MtronPTI offers a broad line of precision crystal resonators, oscillators, filters, and Integrated Microwave Assembly solutions. MtronPTI is an ISO 9001:2015 and AS9100 Rev. D certified organization.

Features:
Low Noise Figure
Highly Selective
High band to band Isolation
World class SWaP
High Power Handling
Modular Solutions
Applications：UAS，Satcom，Electronic Warfare

领先同行MtronPTI的通用数据链路产品组合(CDL)

MtronPTI麦特伦皮晶振的K波段双工器UFDX9999-008是支持通用数据链路(CDL)应用的广泛产品组合中的一款产品。MtronPTI的振荡器、滤波器、多路复用器和集成组件可通过CDL实现有效载荷控制和传感器数据的安全、宽带、实时上行链路和下行链路传输。石英晶体振荡器产品特性包括出色的通道间隔离、低插入损耗、小尺寸以及在许多情况下的高功率处理能力。MtronPTI已经成功设计并交付了微波滤波器，并将微波组件集成到众多CDL应用中，并且每天都在推进这项技术。这些产品适用于太空数据链、有人驾驶和无人驾驶飞机、移动和固定地面站、船上、超宽带卫星通信和地面无人驾驶车辆市场。

MtronPTI麦特伦皮提供各种精密石英晶振，贴片晶振，晶体谐振器、晶体振荡器、滤波器和集成微波组件解决方案。MtronPTI是ISO 9001:2015和AS9100 Rev. D认证组织。

特点：
低噪声系数
高度选择性
高带间隔离
世界级互换
高功率处理
模块化解决方案
应用：无人宇宙空间监视(Unmanned Aerospace Surveillance)，卫星通信，电子战争

领先同行MtronPTI的通用数据链路产品组合(CDL)

MtronPTI麦特伦皮提供广泛的精密频率和频谱控制解决方案，包括射频、微波和毫米波滤波器；空腔、石英晶体、陶瓷、集总元件(LC)和开关滤波器；高性能和高频ocxo、集成PLL OCXOs、TCXOs、VCXOs、低抖动和恶劣环境振荡器和时钟；晶体谐振器、集成微波组件(IMA)和最先进的固态功率放大器产品。MtronPTI是一家上市公司(纽约证券交易所代码:MPTI)。
