WC26SMFD-32.768KHZ-T,WC26SM,32.768KHz,Mmdcomp晶振

频率：32.768KHz

尺寸：2.0x6.0mm

WC26SMFD-32.768KHZ-T,WC26SM,32.768KHz,Mmdcomp晶振，美国进口晶振，MMD晶振，Mmdcomp麦迪康晶振，型号：WC26SM，编码为：WC26SMFD-32.768KHZ-T，精度：±20ppm，频率为：32.768KHz，负载：12.5pF，工作温度范围广：-40℃至+85℃，小体积晶振尺寸：2.0x6.0mm，音叉晶振，插件晶体，石英晶振，表面安装时钟晶体，无源晶振，石英晶体，弯脚插件晶振，石英晶体谐振器，无铅环保晶振。具有小型紧凑型，高性能晶振，耐热及耐环境特点，符合RoHS。应用于：通讯设备晶振，蓝牙模块，时钟晶振，仪器仪表设备，电脑主板，数字显示设备，智能家居等应用。

订购热线：0755-29952551

LH-1

CTS-1

WC26SMFD-32.768KHZ-T,WC26SM,32.768KHz,Mmdcomp晶振，产品特点：

表面安装式时钟晶体
频率：32.768KHz
小型紧凑型
符合RoHS

LH-2

CTS-2

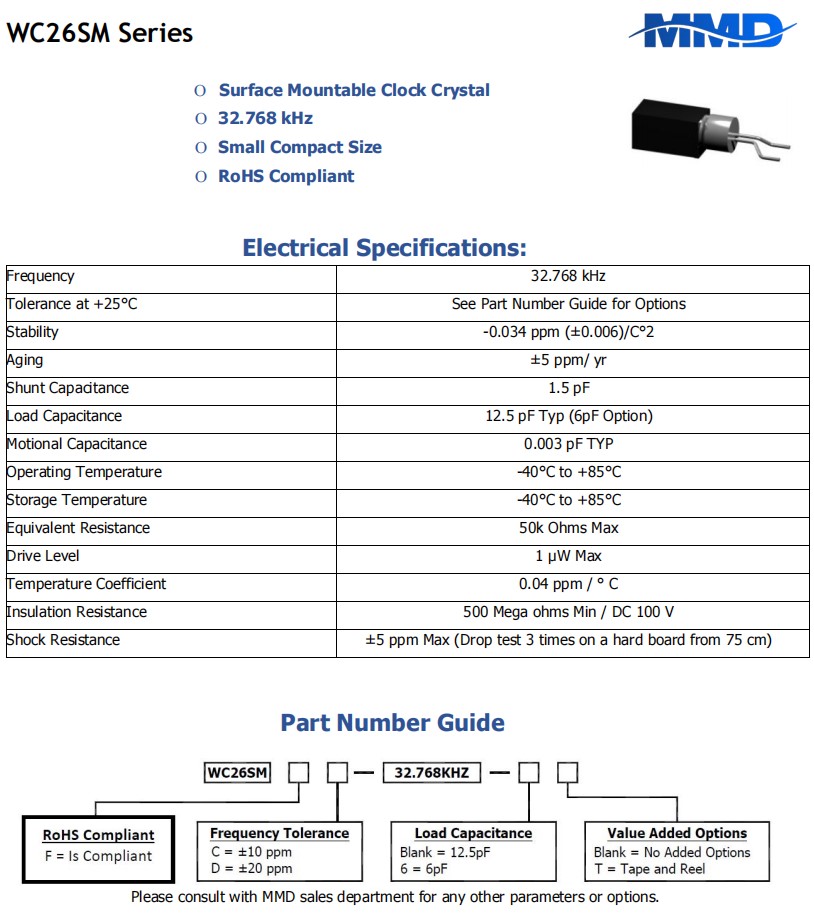

WC26SMFD-32.768KHZ-T,WC26SM,32.768KHz,Mmdcomp晶振,参数表

Frequency		32.768 kHz
Tolerance at +25°C		See Part Number Guide for Options
Stability		-0.034 ppm (±0.006)/C°2
Aging		±5 ppm/ yr
Shunt Capacitance		1.5 pF
Load Capacitance		12.5 pF Typ (6pF Option)
Motional Capacitance		0.003 pF TYP
Operating Temperature		-40°C to +85°C
Storage Temperature		-40°C to +85°C
Equivalent Resistance		50k Ohms Max
Drive Level		1 µW Max
Temperature Coefficient		0.04 ppm / ° C
Insulation Resistance		500 Mega ohms Min / DC 100 V
Shock Resistance		±5 ppm Max (Drop test 3 times on a hard board from 75 cm)

LH-3

ECS-1

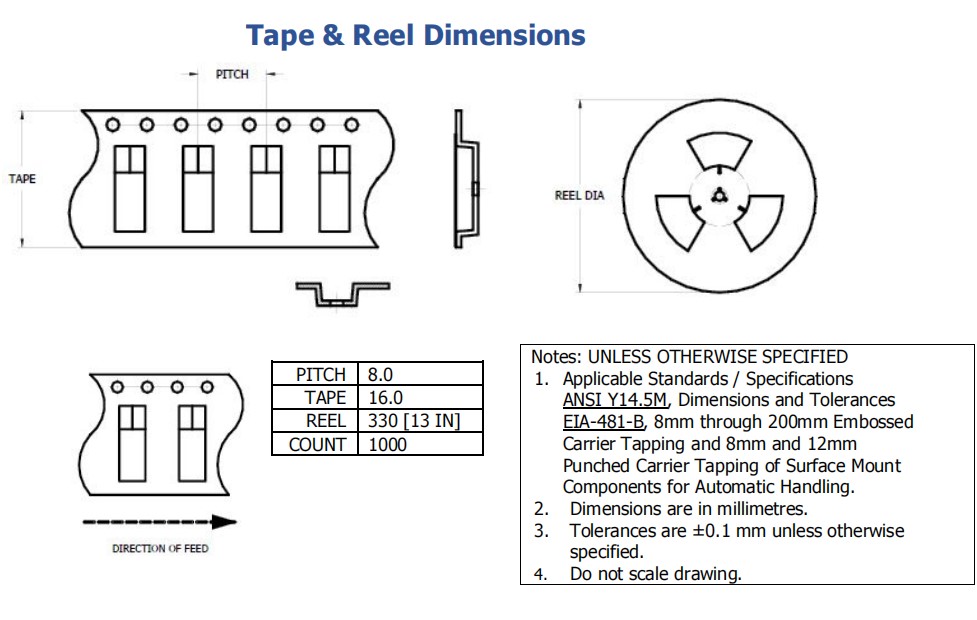

WC26SMFD-32.768KHZ-T,WC26SM,32.768KHz,Mmdcomp晶振,尺寸图
