频率：32.768K

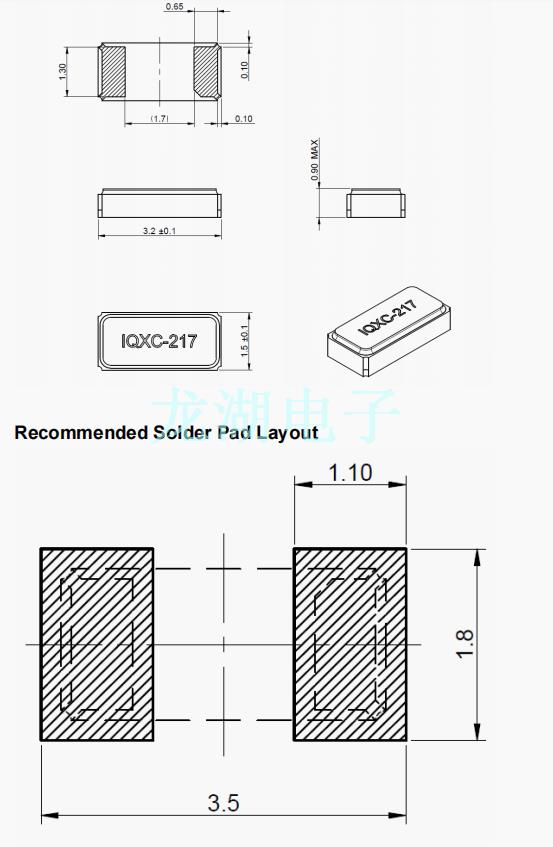

尺寸：3.2*1.5MM
LFXTAL084884,两脚贴片IQD晶振,IQXC-217,低抖动晶振,SMD晶振,两脚贴片,石英谐振器,贴片谐振器,耐环境晶振,蓝牙晶振,32.768K晶振,耐热晶振,抗撞击性在常规的衰落或运输过程中的碰撞都不会影响搭配其的性能,即是是85度的环境依然可以运行,

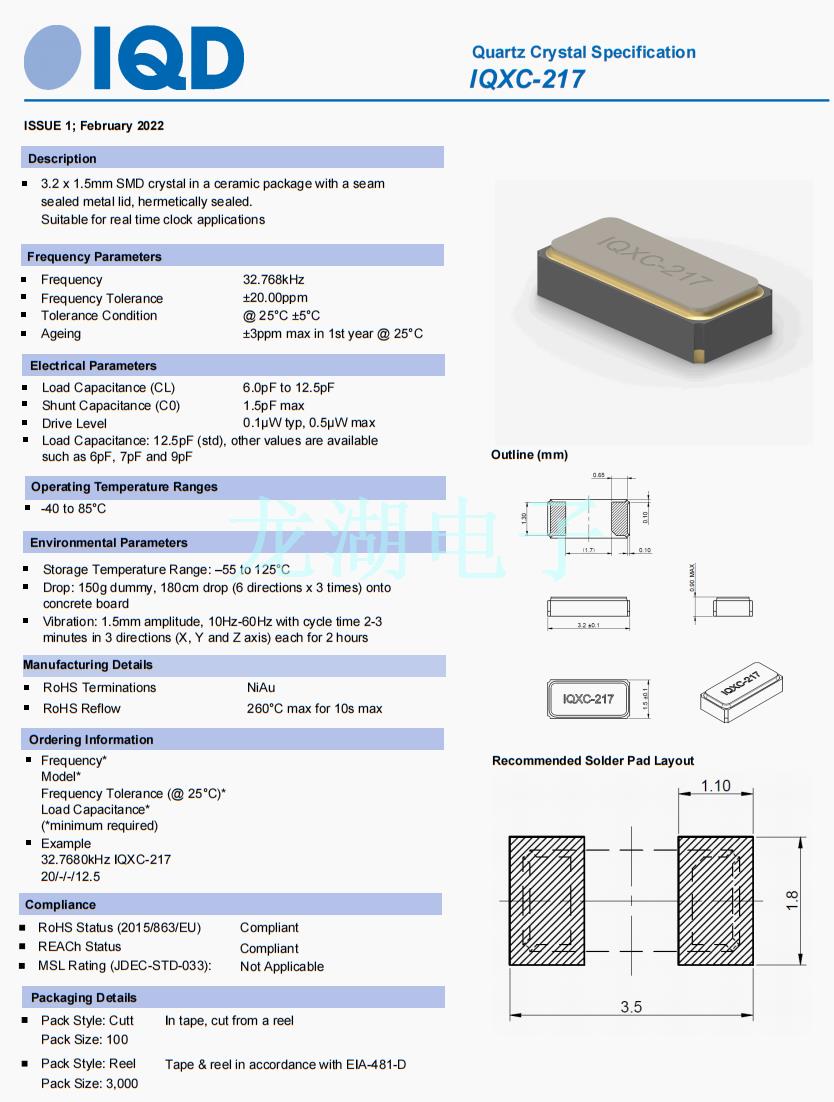

LFXTAL084884,两脚贴片IQD晶振,IQXC-217,低抖动晶振
| 原厂编码 | LFXTAL084884 |
| 频率 | 32.768KHz |
| 厂家 | IQD晶振 |
| 型号 | IQXC-217 |
| 频率偏差 | ±20ppm |
| 负载电容 | 7pF |
| 工作温度 | -40°C至85°C |
| 尺寸 | 3.2*1.5mm |
LFXTAL084884,两脚贴片IQD晶振,IQXC-217,低抖动晶振
| Mfr Part # | Mfr | Series | Frequency | Frequency Tolerance | Load Capacitance |
| LFXTAL059532REEL | IQD 进口晶振 | CFPX-104 | 25 MHz | ±20ppm | 18pF |
| LFXTAL056556REEL | IQD 进口晶振 | CFPX-104 | 12.5 MHz | ±50ppm | 18pF |
| LFXTAL059528REEL | IQD 进口晶振 | CFPX-104 | 16.384 MHz | ±20ppm | 18pF |
| LFXTAL050518REEL | IQD 进口晶振 | CFPX-104 | 12 MHz | ±30ppm | 12pF |
| LFXTAL036900BULK | IQD 进口晶振 | HC49/4H | 4 MHz | ±10ppm | 30pF |
| LFXTAL003320BULK | IQD 进口晶振 | HC49 | 24 MHz | ±20ppm | Series |
| LFXTAL071259REEL | IQD 进口晶振 | IQXC-42 AUTO | 25 MHz | ±10ppm | 10pF |
| LFXTAL061486REEL | IQD 进口晶振 | CFPX-104 | 8.192 MHz | ±30ppm | 10pF |
| LFXTAL026388REEL | IQD 进口晶振 | 12SMX-B | 14.7456 MHz | ±30ppm | 16pF |
| LFXTAL072351REEL | IQD 进口晶振 | 12SMX AUTO | 6 MHz | ±50ppm | 18pF |
| LFXTAL072352REEL | IQD 进口晶振 | 12SMX AUTO | 8 MHz | ±50ppm | 18pF |
| LFXTAL059461REEL | IQD 进口晶振 | IQXC-25 | 32.768 kHz | ±20ppm | 7pF |
| LFXTAL011164BULK | IQD 进口晶振 | HC49 | 3.072 MHz | ±20ppm | 20pF |
| LFXTAL036356REEL | IQD 进口晶振 | HC49/4HSMX | 12 MHz | ±20ppm | 18pF |
| LFXTAL058149RL3K | IQD 进口晶振 | CFPX-180 | 24 MHz | ±10ppm | 10pF |
| LFXTAL083409RL3K | IQD 进口晶振 | CFPX-180 | 26 MHz | ±10ppm | 12pF |
| LFXTAL078781RL3K | IQD 进口晶振 | CFPX-180 | 16 MHz | ±30ppm | 12pF |
| LFXTAL083407RL3K | IQD 进口晶振 | CFPX-180 | 24 MHz | ±20ppm | 12pF |
| LFXTAL036401REEL | IQD 进口晶振 | CFPX-104 | 12 MHz | ±20ppm | 18pF |
| LFXTAL071266REEL | IQD 进口晶振 | IQXC-42 AUTO | 48 MHz | ±10ppm | 10pF |
| LFXTAL066198REEL | IQD 进口晶振 | IQXC-90 | 32.768 kHz | ±20ppm | 9pF |
| LFXTAL085880 | IQD 进口晶振 | CFPX-180 | 25 MHz | ±20ppm | 8pF |
| LFXTAL085874 | IQD 进口晶振 | CFPX-180 | 20 MHz | ±20ppm | 12pF |
| LFXTAL085878 | IQD 进口晶振 | CFPX-180 | 24 MHz | ±20ppm | 12pF |
| LFXTAL085860 | IQD 进口晶振 | CFPX-180 | 12 MHz | ±20ppm | 12pF |
| LFXTAL085887 | IQD 进口晶振 | CFPX-180 | 32 MHz | ±10ppm | 8pF |
| LFXTAL009709 | IQD 进口晶振 | CFPX-217 | 32.768 kHz | ±20ppm | 7pF |
| LFXTAL085881 | IQD 进口晶振 | CFPX-180 | 25 MHz | ±20ppm | 12pF |
| LFXTAL085871 | IQD 进口晶振 | CFPX-180 | 16 MHz | ±20ppm | 8pF |
| LFXTAL085845 | IQD 进口晶振 | IQXC-42 | 25 MHz | ±10ppm | 8pF |
| LFXTAL085842 | IQD 进口晶振 | IQXC-42 | 16 MHz | ±10ppm | 8pF |
| LFXTAL085857 | IQD 进口晶振 | IQXC-42 | 40 MHz | ±10ppm | 10pF |
