频率：32.768K
尺寸：3.2*1.5MM
LFXTAL066834,IQD电子晶振厂家,CFPX-217,3215石英晶振,12.5pF晶振,石英32.768KHz晶振,石英晶体谐振器,编码LFXTAL066834,伊克德电子晶体谐振器,6G电子信号塔,良好的受热性在85度的高温环境也能为产品平稳且持续的运行,所选材料严格遵守世界环保标准,

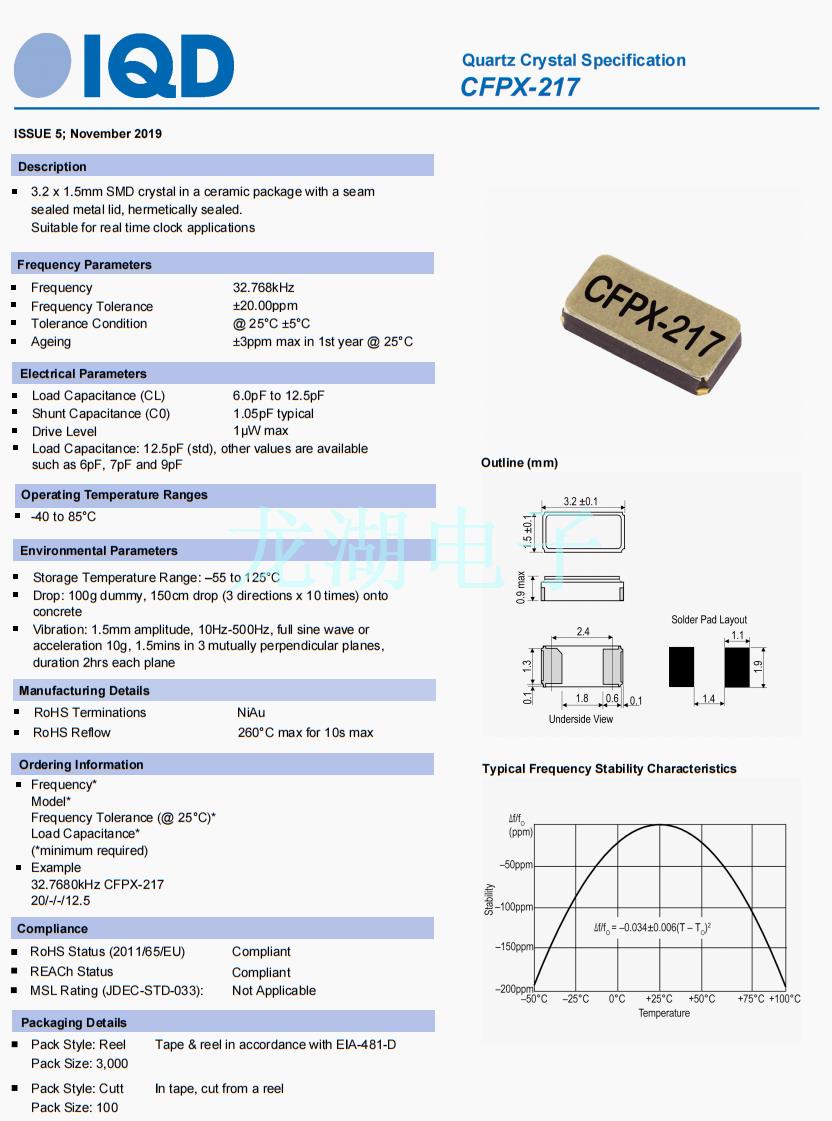

LFXTAL066834,IQD电子晶振厂家,CFPX-217,3215石英晶振
| 原厂编码 | LFXTAL066834 |
| 频率 | 32.768KHz |
| 厂家 | IQD晶振 |
| 型号 | CFPX-217 |
| 频率偏差 | ±10ppm |
| 负载电容 | 12.5pF |
| 工作温度 | -40°C至85°C |

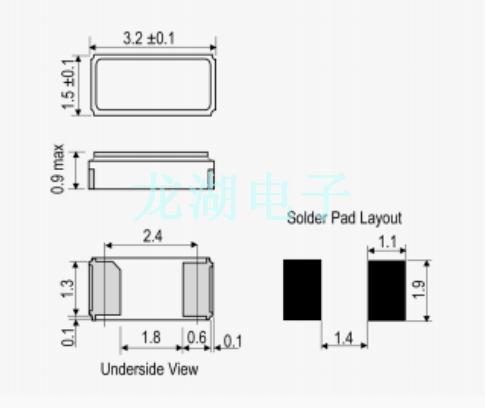

| 尺寸 | 3.2*1.5mm |
| Mfr Part # | Mfr | Series | Frequency | Frequency Tolerance | Load Capacitance |
| LFXTAL002996BULK | IQD 进口晶振 | WATCH | 32.768 kHz | ±15ppm | 12.5pF |
| LFXTAL025159REEL | IQD 进口晶振 | CFPX-56 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL003181REEL | IQD 进口晶振 | HC49/4HSMX | 20 MHz | ±30ppm | 16pF |
| LFXTAL003166REEL | IQD 进口晶振 | HC49/4HSMX | 10 MHz | ±30ppm | 16pF |
| LFXTAL029914REEL | IQD 进口晶振 | HC49/4HSMX | 8 MHz | ±30ppm | 16pF |
| LFXTAL003151REEL | IQD 进口晶振 | HC49/4HSMX | 8 MHz | ±30ppm | 16pF |
| LFXTAL003237REEL | IQD 进口晶振 | HC49/4HSMX | 16 MHz | ±30ppm | 16pF |
| LFXTAL014219BULK | IQD 进口晶振 | WATCH | 32.768 kHz | ±20ppm | 6pF |
| LFXTAL069494REEL | IQD 进口晶振 | IQXC-42 | 25 MHz | ±15ppm | 10pF |
| LFXTAL069383REEL | IQD 进口晶振 | CFPX-218 | 24 MHz | ±20ppm | 10pF |
| LFXTAL035264REEL | IQD 进口晶振 | CFPX-180 | 16 MHz | ±50ppm | 16pF |
| LFXTAL069944REEL | IQD 进口晶振 | CFPX-180 | 12 MHz | ±20ppm | 15pF |
| LFXTAL035268REEL | IQD 进口晶振 | CFPX-180 | 25 MHz | ±50ppm | 16pF |
| LFXTAL056140REEL | IQD 进口晶振 | IQXC-180 AUTO | 24 MHz | ±50ppm | 8pF |
| LFXTAL069526REEL | IQD 进口晶振 | IQXC-26 | 32 MHz | ±15ppm | 8pF |
| LFXTAL084885 | IQD 进口晶振 | IQXC-217 | 32.768 kHz | ±20ppm | 6pF |
| LFXTAL036075BULK | IQD 进口晶振 | HC49/4H | 27.12 MHz | ±30ppm | 10pF |
| LFXTAL027945BULK | IQD 进口晶振 | HC49/4H | 16 MHz | ±30ppm | 22pF |
| LFXTAL071268REEL | IQD 进口晶振 | CFPX-218 AUTO | 16 MHz | ±10ppm | 10pF |
| LFXTAL061627REEL | IQD 进口晶振 | CFPX-104 | 8 MHz | ±20ppm | 16pF |
| LFXTAL055901REEL | IQD 进口晶振 | CFPX-104 | 8 MHz | ±20ppm | 18pF |
| LFXTAL059158REEL | IQD 进口晶振 | CFPX-104 | 8 MHz | ±30ppm | 16pF |
| LFXTAL062558REEL | IQD 进口晶振 | IQXC-25 | 32.768 kHz | ±10ppm | 9pF |
| LFXTAL026384REEL | IQD 进口晶振 | 12SMX-B | 12 MHz | ±30ppm | 16pF |
| LFXTAL026394REEL | IQD 进口晶振 | 12SMX-B | 20 MHz | ±30ppm | 16pF |
| LFXTAL056516REEL | IQD 进口晶振 | 12SMX-B | 8 MHz | ±30ppm | 12pF |
