频率：32.768K
尺寸：1.6*1.0mm
LFXTAL066431REEL,伊克德耐热晶振,IQXC-90,计时产品,,进口晶体谐振器,无电压晶振,晶体谐振器,电话手表晶振,高精度晶振,汽车GPS晶振,电子计算机晶振,智能手机晶振,电脑芯片晶振,空调晶振,电子家居晶振,耐震晶振,智能手机晶振,优秀的适应性在-40度到85度的恶劣环境也能平稳的为产品运行

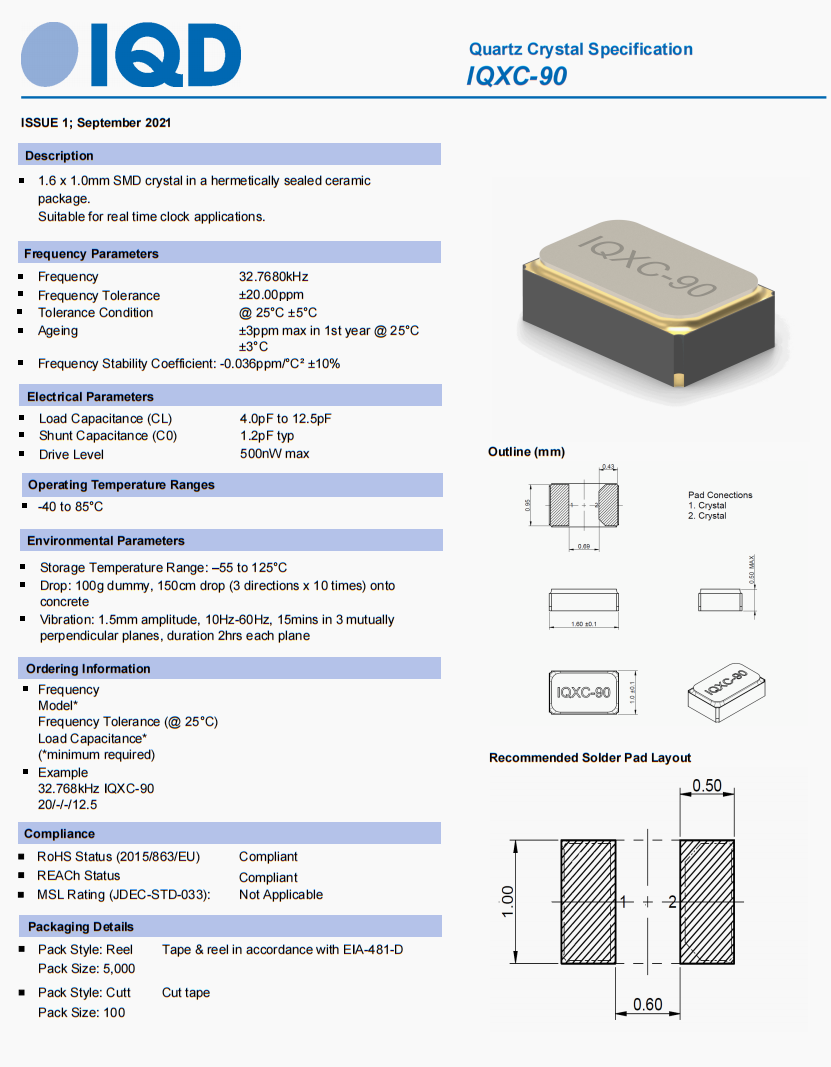

LFXTAL066431REEL,伊克德耐热晶振,IQXC-90,计时产品
| 原厂编码 | LFXTAL066431REEL |
| 频率 | 32.768KHz |
| 厂家 | IQD晶振 |
| 型号 | IQXC-90 |
| 频率偏差 | ±20ppm |
| 负载电容 | 7pF |
| 工作温度 | -40°C至85°C |

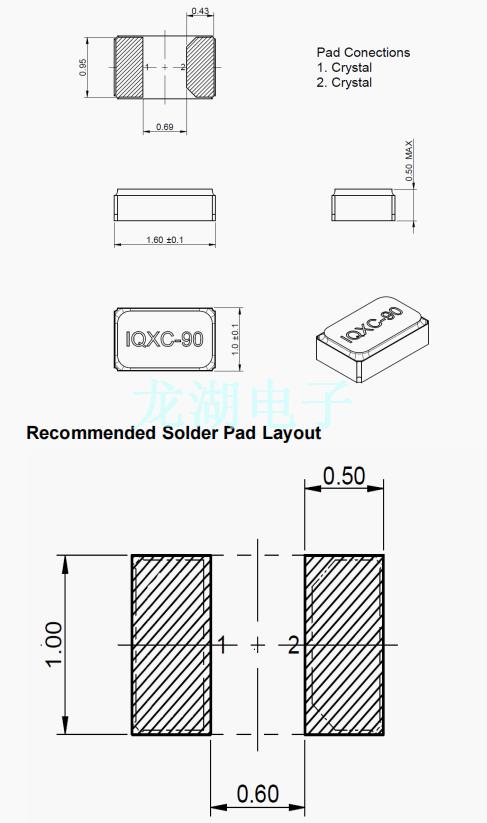

| 尺寸 | 1.6*1.0mm |
LFXTAL066431REEL,伊克德耐热晶振,IQXC-90,计时产品
| Mfr Part # | Mfr | Series | Frequency | Frequency Tolerance | Load Capacitance |
| LFXTAL050789REEL | IQD Crystal | IQXC-25 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL069494REEL | IQD Crystal | IQXC-42 | 25 MHz | ±15ppm | 10pF |
| LFXTAL056140REEL | IQD Crystal | IQXC-180 AUTO | 24 MHz | ±50ppm | 8pF |
| LFXTAL036075BULK | IQD Crystal | HC49/4H | 27.12 MHz | ±30ppm | 10pF |
| LFXTAL027945BULK | IQD Crystal | HC49/4H | 16 MHz | ±30ppm | 22pF |
| LFXTAL062558REEL | IQD Crystal | IQXC-25 | 32.768 kHz | ±10ppm | 9pF |
| LFXTAL059627REEL | IQD Crystal | IQXC-42 | 38.4 MHz | ±15ppm | 10pF |
| LFXTAL082135CUTT | IQD Crystal | IQXC-42 | 48 MHz | ±10ppm | 8pF |
| LFXTAL057623REEL | IQD Crystal | IQXC-180 AUTO | 24 MHz | ±30ppm | 8pF |
| LFXTAL071744REEL | IQD Crystal | IQXC-180 AUTO | 16 MHz | ±30ppm | 8pF |
| LFXTAL073664REEL | IQD Crystal | IQXC-180 AUTO | 12 MHz | ±50ppm | 8pF |
| LFXTAL024944BULK | IQD Crystal | HC49/4H | 16 MHz | ±30ppm | 18pF |
| LFXTAL036900BULK | IQD Crystal | HC49/4H | 4 MHz | ±10ppm | 30pF |
| LFXTAL059461REEL | IQD Crystal | IQXC-25 | 32.768 kHz | ±20ppm | 7pF |
| LFXTAL066198REEL | IQD Crystal | IQXC-90 | 32.768 kHz | ±20ppm | 9pF |
| LFXTAL085845 | IQD Crystal | IQXC-42 | 25 MHz | ±10ppm | 8pF |
| LFXTAL085842 | IQD Crystal | IQXC-42 | 16 MHz | ±10ppm | 8pF |
| LFXTAL085857 | IQD Crystal | IQXC-42 | 40 MHz | ±10ppm | 10pF |
| LFXTAL082887RL3K | IQD Crystal | IQXC-42 | 16 MHz | ±10ppm | 10pF |
| LFXTAL085851 | IQD Crystal | IQXC-42 | 32 MHz | ±10ppm | 10pF |
| LFXTAL069493REEL | IQD Crystal | IQXC-42 | 24 MHz | ±15ppm | 10pF |
| LFXTAL082129CUTT | IQD Crystal | IQXC-42 | 32 MHz | ±10ppm | 8pF |
| LFXTAL073170REEL | IQD Crystal | IQXC-42 | 32 MHz | ±10ppm | 10pF |
| LFXTAL085841 | IQD Crystal | IQXC-42 | 20 MHz | ±15ppm | 10pF |
| LFXTAL085844 | IQD Crystal | IQXC-42 | 24 MHz | ±20ppm | 10pF |
| LFXTAL085849 | IQD Crystal | IQXC-42 | 27.12 MHz | ±10ppm | 10pF |
| LFXTAL071774REEL | IQD Crystal | IQXC-180 AUTO | 12 MHz | ±50ppm | 8pF |
| LFXTAL071758REEL | IQD Crystal | IQXC-180 AUTO | 25 MHz | ±30ppm | 8pF |
| LFXTAL071747REEL | IQD Crystal | IQXC-180 AUTO | 16.384 MHz | ±30ppm | 8pF |
| LFXTAL071750REEL | IQD Crystal | IQXC-180 AUTO | 20 MHz | ±30ppm | 8pF |
| LFXTAL053426REEL | IQD Crystal | IQXC-180 AUTO | 16 MHz | ±50ppm | 8pF |
| LFXTAL055998REEL | IQD Crystal | IQXC-180 AUTO | 20 MHz | ±50ppm | 8pF |
| LFXTAL071785REEL | IQD Crystal | IQXC-180 AUTO | 25 MHz | ±50ppm | 8pF |
