频率：32.768K

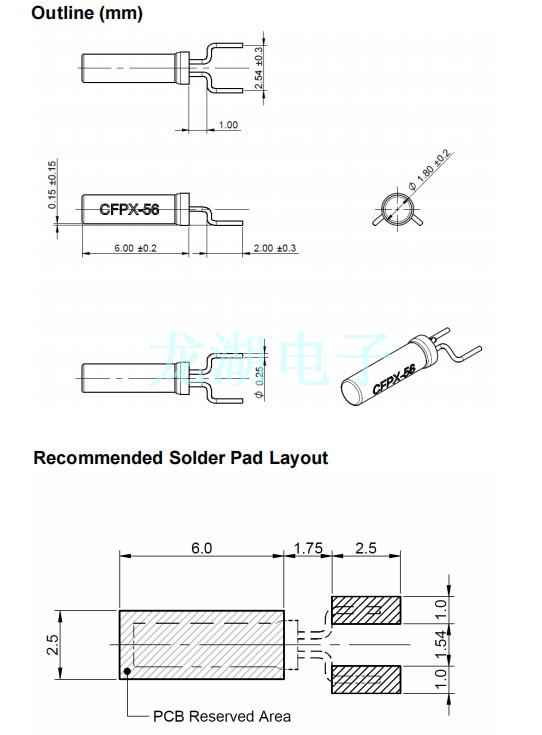

尺寸：1.8mm*6.0mm
LFXTAL025159REEL,圆柱晶振,CFPX-56,无源晶振,进口圆柱晶振,超小圆柱,高温晶振,32.768KHz晶振,加湿器晶振,无电压晶振,英国伊克德晶振,1860晶振,插件两脚晶振,低成本晶振,低端晶振,鼠标晶振,键盘晶振,

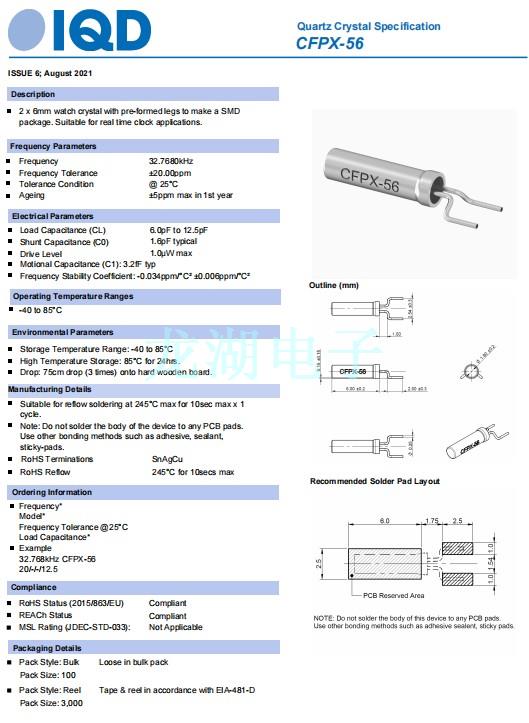

LFXTAL025159REEL,圆柱晶振,CFPX-56,无源晶振
| 原厂编码 | LFXTAL025159REEL |
| 频率 | 32.768KHz |
| 厂家 | IQD晶振 |
| 型号 | CFPX-56 |
| 频率偏差 | ±20ppm |
| 负载电容 | 12.5pF |
| 工作温度 | -40°C至85°C |
| 尺寸 | 1.8*6.0mm |
| Mfr Part # | Mfr | Series | Frequency | Frequency Tolerance | Load Capacitance |
| LFXTAL003000 | IQD 进口晶振 | 85SMX | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL069395RL3K | IQD 进口晶振 | CFPX-218 | 16.384 MHz | ±20ppm | 10pF |
| LFXTAL009678 | IQD 进口晶振 | CFPX-217 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL050789REEL | IQD 进口晶振 | IQXC-25 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL055299REEL | IQD 进口晶振 | CFPX-180 | 25 MHz | ±20ppm | 18pF |
| LFXTAL053099REEL | IQD 进口晶振 | CFPX-180 | 27.12 MHz | ±10ppm | 10pF |
| LFXTAL055663REEL | IQD 进口晶振 | CFPX-104 | 8 MHz | ±20ppm | 18pF |
| LFXTAL026392REEL | IQD 进口晶振 | 12SMX-B | 16 MHz | ±30ppm | 16pF |
| LFXTAL011301REEL | IQD 进口晶振 | HC49/4HSMX | 8 MHz | ±30ppm | 30pF |
| LFXTAL025159REEL | IQD 进口晶振 | CFPX-56 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL003181REEL | IQD 进口晶振 | HC49/4HSMX | 20 MHz | ±30ppm | 16pF |
| LFXTAL003166REEL | IQD 进口晶振 | HC49/4HSMX | 10 MHz | ±30ppm | 16pF |
| LFXTAL029914REEL | IQD 进口晶振 | HC49/4HSMX | 8 MHz | ±30ppm | 16pF |
| LFXTAL003151REEL | IQD 进口晶振 | HC49/4HSMX | 8 MHz | ±30ppm | 16pF |
| LFXTAL003237REEL | IQD 进口晶振 | HC49/4HSMX | 16 MHz | ±30ppm | 16pF |
| LFXTAL014219BULK | IQD 进口晶振 | WATCH | 32.768 kHz | ±20ppm | 6pF |
| LFXTAL069494REEL | IQD 进口晶振 | IQXC-42 | 25 MHz | ±15ppm | 10pF |
| LFXTAL069383REEL | IQD 进口晶振 | CFPX-218 | 24 MHz | ±20ppm | 10pF |
| LFXTAL035264REEL | IQD 进口晶振 | CFPX-180 | 16 MHz | ±50ppm | 16pF |
| LFXTAL069944REEL | IQD 进口晶振 | CFPX-180 | 12 MHz | ±20ppm | 15pF |
| LFXTAL035268REEL | IQD 进口晶振 | CFPX-180 | 25 MHz | ±50ppm | 16pF |
| LFXTAL056140REEL | IQD 进口晶振 | IQXC-180 AUTO | 24 MHz | ±50ppm | 8pF |
| LFXTAL069526REEL | IQD 进口晶振 | IQXC-26 | 32 MHz | ±15ppm | 8pF |
| LFXTAL084885 | IQD 进口晶振 | IQXC-217 | 32.768 kHz | ±20ppm | 6pF |
