频率：20MHZ
尺寸：2.5x2.0mm
12.86512石英振动子,格耶2520超小型晶振,KX-6物联网晶振，尺寸2.5x2.0mm，频率20MHZ，丹麦Geyer晶振，进口无源晶振，石英贴片晶振，SMD晶振，2520mm超小型晶振，无源石英晶体，无源贴片晶振，无源晶振，无源石英晶体，水晶振动子，环保晶振，20MHZ石英晶振，无线网络晶振，物联网晶振，智能家居晶振，平板电脑晶振，多媒体设备晶振，游戏设备晶振，仪器设备晶振，健身设备晶振，娱乐信息系统晶振， 监控摄像机晶振，高质量晶振，高性能晶振，高精度晶振，低损耗晶振，低功耗晶振，低耗能晶振，具有高精度低损耗的特点。
无源晶振产品常常应用无线网络，物联网，智能家居，平板电脑，多媒体设备，游戏设备，仪器设备，健身设备，娱乐信息系统， 监控摄像机等领域.12.86512石英振动子,格耶2520超小型晶振,KX-6物联网晶振.
12.86512石英振动子,格耶2520超小型晶振,KX-6物联网晶振，尺寸2.5x2.0mm，频率20MHZ，丹麦Geyer晶振，进口无源晶振，石英贴片晶振，SMD晶振，2520mm超小型晶振，无源石英晶体，无源贴片晶振，无源晶振，无源石英晶体，水晶振动子，环保晶振，20MHZ石英晶振，无线网络晶振，物联网晶振，智能家居晶振，平板电脑晶振，多媒体设备晶振，游戏设备晶振，仪器设备晶振，健身设备晶振，娱乐信息系统晶振， 监控摄像机晶振，高质量晶振，高性能晶振，高精度晶振，低损耗晶振，低功耗晶振，低耗能晶振，具有高精度低损耗的特点。
无源晶振产品常常应用无线网络，物联网，智能家居，平板电脑，多媒体设备，游戏设备，仪器设备，健身设备，娱乐信息系统， 监控摄像机等领域.12.86512石英振动子,格耶2520超小型晶振,KX-6物联网晶振.
12.86512石英振动子,格耶2520超小型晶振,KX-6物联网晶振 参数表
| part no. | 12.xxxxx | |||
| model | KX - 6 | |||
| frequency range | 20.0 MHz | |||
| mode | fundamental | |||
| operating temperature |
standard -20° ~ +70°C available -40° ~ +85°C (=KX-6T); -40° ~ +105°C (=KX-6E) ; -40° ~ +125°C (=KX-6F) |
|||
| frequency tolerance at +25°C | standard ±30 ppm; available ±10 ~ ±50 ppm | |||
|
temperature tolerance at -20° ~ +70°C; -40° ~ +85°C -40° ~ +105°C -40° ~ +125°C |
standard ±50 ppm; available ±10 ~ ±100 ppm standard ±100 ppm; available ±30 ~ ±120 ppm standard ±100 ppm; available ±50 ~ ±150 ppm |
|||
| load capacitance CL | standard 10 pF; available 8 ~ 16 pF | |||
| series resistance R1 (ESR) max. |
12.0 ~ 15.99 MHz 150 Ohm 16.0 ~ 20.0 MHz 100 Ohm 20.1 ~ 29.99 MHz 80 Ohm 30.0 ~ 80.0 MHz 50 Ohm |
|||
| aging at +25°C (first year) max. | ±2 ppm | |||
| shunt capacitance C0 max. | 3.5 pF | |||
| drive level max. | 100 µW | |||
| contents of reel | 1000 pcs. | |||

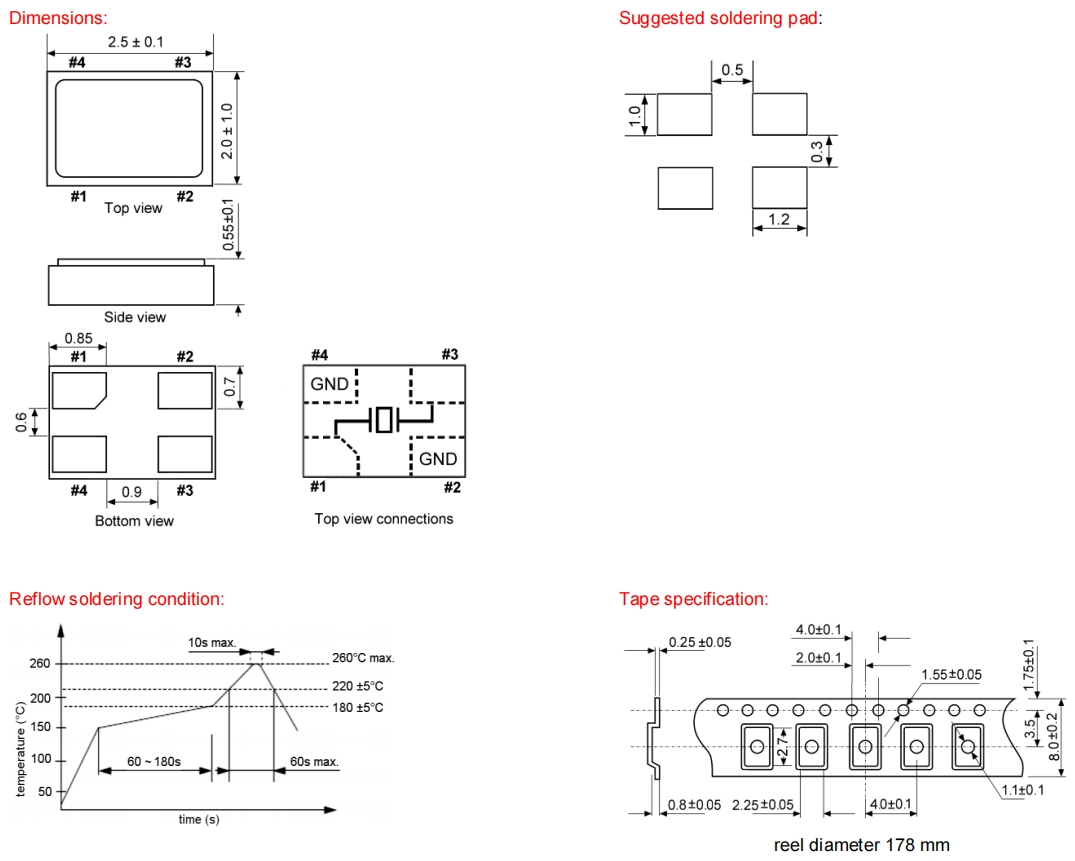

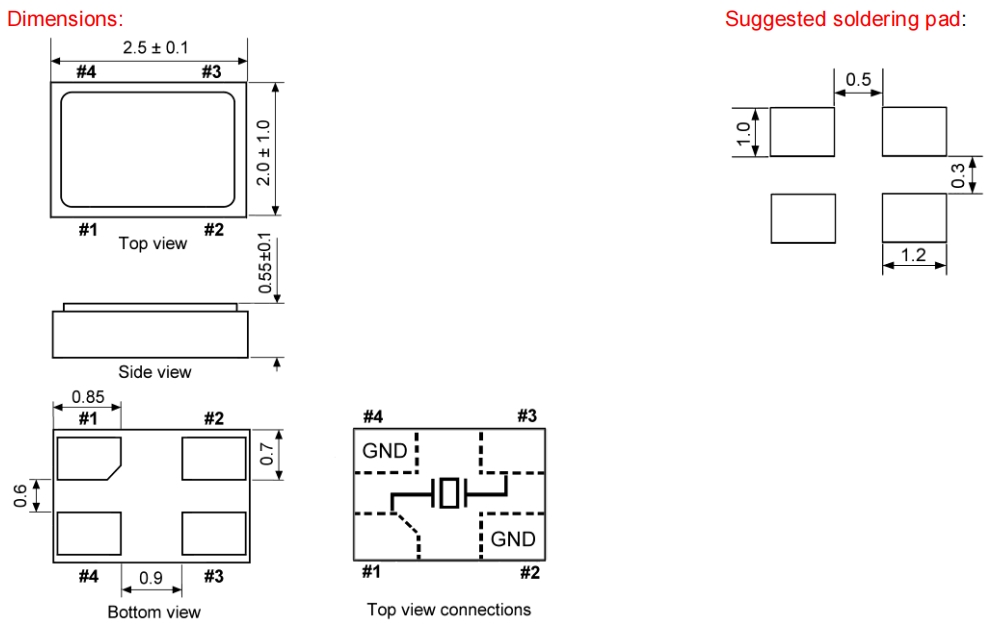

12.86512石英振动子,格耶2520超小型晶振,KX-6物联网晶振 尺寸图
12.86512石英振动子,格耶2520超小型晶振,KX-6物联网晶振
产品特点:
2520贴片晶振单元
符合RoHS无铅
非常低的老化
超高的可靠性能
| Mfr Part # | Mfr | Description | Series | Frequency | Frequency Stability | Frequency Tolerance |
| 12.60208 | Geyer晶振 | CRYSTAL 26.0MHZ 8PF SMD | KX-7T | 26 MHz | ±10ppm | ±20ppm |
| 12.86531 | Geyer晶振 | Cystal 16.0Mhz 10pF SMD | KX-6T | 16 MHz | ±100ppm | ±30ppm |
| 12.88664 | Geyer晶振 | Crystal 14.3181800Mhz 12pF SMD | KX-7 | 14.31818 MHz | ±50ppm | ±30ppm |
| 12.89495 | Geyer晶振 | Crystal 8.0Mhz SMD KX-9BH 8pF, 4 | KX-9BH | 8 MHz | ±50ppm | ±50ppm |
| 12.89103 | Geyer晶振 | Crystal 10.0Mhz SMD KX-9AE 16pF, | KX-9AE | 10 MHz | ±50ppm | ±30ppm |
| 12.887 | Geyer晶振 | Crystal 30.0Mhz 12pF SMD | KX-7 | 30 MHz | ±50ppm | ±30ppm |
| 12.89131 | Geyer晶振 | Crystal 48.0Mhz SMD KX-9AT 16pF, | KX-9AT | 48 MHz | ±50ppm | ±30ppm |
| 12.86512 | Geyer晶振 | Cystal 20.0Mhz 10pF SMD | KX-6 | 20 MHz | ±50ppm | ±30ppm |
| 12.89126 | Geyer晶振 | Crystal 13.560Mhz SMD KX-9AE 16p | KX-9A | 13.56 MHz | ±120ppm | ±30ppm |
| 12.8655 | Geyer晶振 | Crystal 16.0Mhz 10pF SMD | KX-6E | 16 MHz | ±150ppm | ±30ppm |
| 12.86526 | Geyer晶振 | Cystal 26.0Mhz 10pF SMD | KX-6T | 26 MHz | ±20ppm | ±10ppm |
| 12.6009 | Geyer晶振 | CRYSTAL 24.0MHZ 12PF SMD | KX-7T | 24 MHz | ±20ppm | ±20ppm |
| 12.88701 | Geyer晶振 | Crystal 40.0Mhz 12pF SMD | KX-7T | 40 MHz | ±100ppm | ±30ppm |
| 12.88493 | Geyer晶振 | Crystal 33.33Mhz SMD KX-7T 12pF, | KX-7T | 33.33333 MHz | ±100ppm | ±30ppm |
| 12.85521 | Geyer晶振 | CYSTAL 26.0MHZ 10PF SMD | KX-5T | 26 MHz | ±20ppm | ±10ppm |
| 12.89078 | Geyer晶振 | Crystal 27.0Mhz SMD KX-9AT 16pF, | KX-9AT | 27 MHz | ±150ppm | ±30ppm |
| 12.86517 | Geyer晶振 | Cystal 24.0Mhz 10pF SMD | KX-6 | 24 MHz | ±50ppm | ±30ppm |
| 12.84812 | Geyer晶振 | Crystal 25.0MHz 8pF SMD | KX-4 | 25 MHz | ±50ppm | ±30ppm |
| 12.88508 | Geyer晶振 | Crystal 24.0Mhz 12pF SMD | KX-7T | 24 MHz | ±50ppm | ±20ppm |
| 12.88711 | Geyer晶振 | Crystal 25.0Mhz SMD KX-7T 12pF, | KX-7T | 25 MHz | ±30ppm | ±30ppm |
| 12.85519 | Geyer晶振 | CYSTAL 20.0MHZ 8PF SMD | KX-5T | 20 MHz | ±50ppm | ±20ppm |
| 12.89027 | Geyer晶振 | Crystal 25.0Mhz SMD KX-9A 16pF, | KX-9A | 25 MHz | ±30ppm | ±30ppm |
| 12.85539 | Geyer晶振 | CYSTAL 40.0MHZ 8PF SMD | KX-5T | 48 MHz | ±20ppm | ±10ppm |
| 12.88721 | Geyer晶振 | Crystal 16.0Mhz 12pF SMD | KX-7T | 16 MHz | ±30ppm | ±30ppm |
| 12.88667 | Geyer晶振 | Crystal 25.0Mhz SMD KX-7 12pF, 4 | KX-7 | 25 MHz | ±50ppm | ±30ppm |
| 12.85517 | Geyer晶振 | CYSTAL 54.0MHZ 8PF SMD | KX-5T | 54 MHz | ±100ppm | ±30ppm |
| 12.89017 | Geyer晶振 | Crystal 13.560Mhz SMD KX-9A 16pF | KX-9A | 13.56 MHz | ±50ppm | ±30ppm |
| 12.89082 | Geyer晶振 | Crystal 26.0Mhz SMD KX-9AT 16pF, | KX-9AT | 26 MHz | ±50ppm | ±30ppm |
| 12.60075 | Geyer晶振 | Cystal 30.0Mhz 8pF SMD | KX-7 | 30 MHz | ±50ppm | ±30ppm |
| 12.89155 | Geyer晶振 | Crystal 32.0Mhz SMD KX-9AT 16pF, | KX-9AT | 32 MHz | ±30ppm | ±30ppm |
| 12.88522 | Geyer晶振 | Crystal 11.059200Mhz 12pF SMD | KX-7T | 11.0592 MHz | ±50ppm | ±30ppm |
| 12.88752 | Geyer晶振 | Crystal 10.0Mhz 12pF SMD晶振 | KX-7 | 10 MHz | ±50ppm | ±30ppm |
| 12.85569 | Geyer晶振 | CYSTAL 27.120MHZ 8PF SMD | KX-5T | 27.12 MHz | ±15ppm | ±10ppm |
| 12.88565 | Geyer晶振 | Crystal 8.0Mhz 12pF SMD | KX-7E | 8 MHz | ±50ppm | ±30ppm |
| 12.85538 | Geyer晶振 | CYSTAL 24.5760MHZ 8PF SMD | KX-5T | 24.576 MHz | ±100ppm | ±30ppm |
| 12.86533 | Geyer晶振 | Cystal 26.0Mhz 10pF SMD | KX-6T | 26 MHz | ±100ppm | ±30ppm |
| 12.89209 | Geyer晶振 | Crystal 16.0Mhz SMD KX-9AE 20pF, | KX-9AE | 16 MHz | ±50ppm | ±30ppm |
| 12.8652 | Geyer晶振 | Cystal 27.0Mhz 10pF SMD | KX-6 | 27 MHz | ±50ppm | ±30ppm |
| 12.86574 | Geyer晶振 | Crystal 27.0Mhz 8pF SMD | KX-6F | 27 MHz | ±150ppm | ±30ppm |
| 12.85541 | Geyer晶振 | CYSTAL 30.0MHZ 8PF SMD | KX-5 | 30 MHz | ±30ppm | ±30ppm |
| 12.84818 | Geyer晶振 | Crystal 24.0MHz 8pF SMD | KX-4 | 24 MHz | ±50ppm | ±30ppm |
| 12.86527 | Geyer晶振 | Cystal 20.0Mhz 10pF SMD | KX-6T | 20 MHz | ±15ppm | ±10ppm |
| 12.85534 | Geyer晶振 | CYSTAL 27.0MHZ 8PF SMD | KX-5T | 27 MHz | ±50ppm | ±30ppm |
| 12.86505 | Geyer晶振 | Cystal 26.0Mhz 10pF SMD | KX-6 | 26 MHz | ±50ppm | ±30ppm |
| 12.60024 | Geyer晶振 | Cystal 27.0Mhz 12pF SMD | KX-7E | 27 MHz | ±100ppm | ±30ppm |
| 12.84803 | Geyer晶振 | Crystal 26.0MHz 8pF SMD | KX-4 | 26 MHz | ±20ppm | ±10ppm |
| 12.85518 | Geyer晶振 | CYSTAL 20.0MHZ 8PF SMD | KX-5E | 20 MHz | ±50ppm | ±30ppm |
| 12.8873 | Geyer晶振 | Crystal 26.0Mhz 12pF SMD | KX-7T | 26 MHz | ±50ppm | ±30ppm |
| 12.86556 | Geyer晶振 | Crystal 40.0Mhz 8pF SMD | KX-6T | 40 MHz | ±20ppm | ±10ppm |
| 12.88643 | Geyer晶振 | Crystal 14.3181800Mhz 12pF SMD | KX-7T | 14.31818 MHz | ±50ppm | ±30ppm |
| 12.86511 | Geyer晶振 | Crystal 18.4320Mhz 10pF SMD | KX-6 | 18.432 MHz | ±50ppm | ±30ppm |
| 12.88523 | Geyer晶振 | Crystal 40.0Mhz 12pF SMD | KX-7F | 40 MHz | ±50ppm | ±30ppm |
| 12.89288 | Geyer晶振 | Crystal 24.5760Mhz SMD KX-9AT 20 | KX-9AT | 24.576 MHz | ±30ppm | ±20ppm |
| 12.86536 | Geyer晶振 | Crystal 14.318180Mhz 10pF SMD | KX-6 | 14.31818 MHz | ±50ppm | ±30ppm |
| 12.89029 | Geyer晶振 | Crystal 27.0Mhz SMD KX-9A 16pF, | KX-9A | 27 MHz | ±50ppm | ±30ppm |
| 12.88799 | Geyer晶振 | Crystal 12.0Mhz 10pF SMD | KX-7 | 12 MHz | ±30ppm | ±30ppm |
| 12.8481 | Geyer晶振 | Crystal 48.0MHz 8pF SMD | KX-4 | 48 MHz | ±50ppm | ±30ppm |
| 12.84814 | Geyer晶振 | Crystal 32.0MHz 8pF SMD | KX-4 | 32 MHz | ±15ppm | ±10ppm |
| 12.88756 | Geyer晶振 | Crystal 10.0Mhz 12pF SMD | KX-7E | 26 MHz | ±50ppm | ±10ppm |
| 12.8556 | Geyer晶振 | CYSTAL 16.0MHZ 8PF SMD | KX-5T | 16 MHz | ±30ppm | ±30ppm |
| 12.86561 | Geyer晶振 | Crystal 40.0Mhz 10pF SMD | KX-6T | 40 MHz | ±20ppm | ±10ppm |
| 12.8877 | Geyer晶振 | Crystal 30.0Mhz 12pF SMD | KX-7T | 30 MHz | ±10ppm | ±10ppm |
| 12.86564 | Geyer晶振 | Crystal 14.318180Mhz 10pF SMD | KX-6T | 14.31818 MHz | ±100ppm | ±30ppm |
| 12.86592 | Geyer晶振 | Crystal 25.0Mhz SMD KX-6T 12pF, | KX-6T | 25 MHz | ±20ppm | ±10ppm |
| 12.87159 | Geyer晶振 | CRYSTAL 32.7680kHz 12.5pF SMD | KX-327NHT | 32.768 kHz | -0.035ppm | ±20ppm |
| 12.87163 | Geyer晶振 | CRYSTAL 32.768KHZ 7PF SMD | KX-327RT | 32.768 kHz | -0.036ppm | ±20ppm |
| 12.87151 | Geyer晶振 | CRYSTAL 32.7680kHz 9pF SMD | KX-327NHT | 32.768 kHz | -0.035ppm | ±30ppm |
| 12.8717 | Geyer晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | KX-327FT | 32.768 kHz | - | ±20ppm |
