频率：12MHZ
尺寸：7.0×5.0mm
SMD100.3C(E/D)-12.000MHz,SMD100.3系列,7050mm,12MHZ,GED数字设备晶振,进口有源振荡器,欧美进口晶振,OSC晶振,SMD振荡器,时钟振荡器,12MHZ石英晶体振荡器,7050mm晶振,尺寸7.0×5.0mm,频率12MHZ,低电压晶振,低抖动晶振,低损耗晶振,高品质晶振,智能穿戴晶振,便携式设备晶振,数字设备晶振,小型设备晶振,仪器仪表晶振.
SMD100.3C(E/D)-12.000MHz,SMD100.3系列,7050mm,12MHZ,GED数字设备晶振特点:
表面安装HCMOS/TTL兼容振荡器
HCMOS/TTL输出
3.3V电源电压
7050晶振陶瓷SMD封装
可用于磁带和卷轴

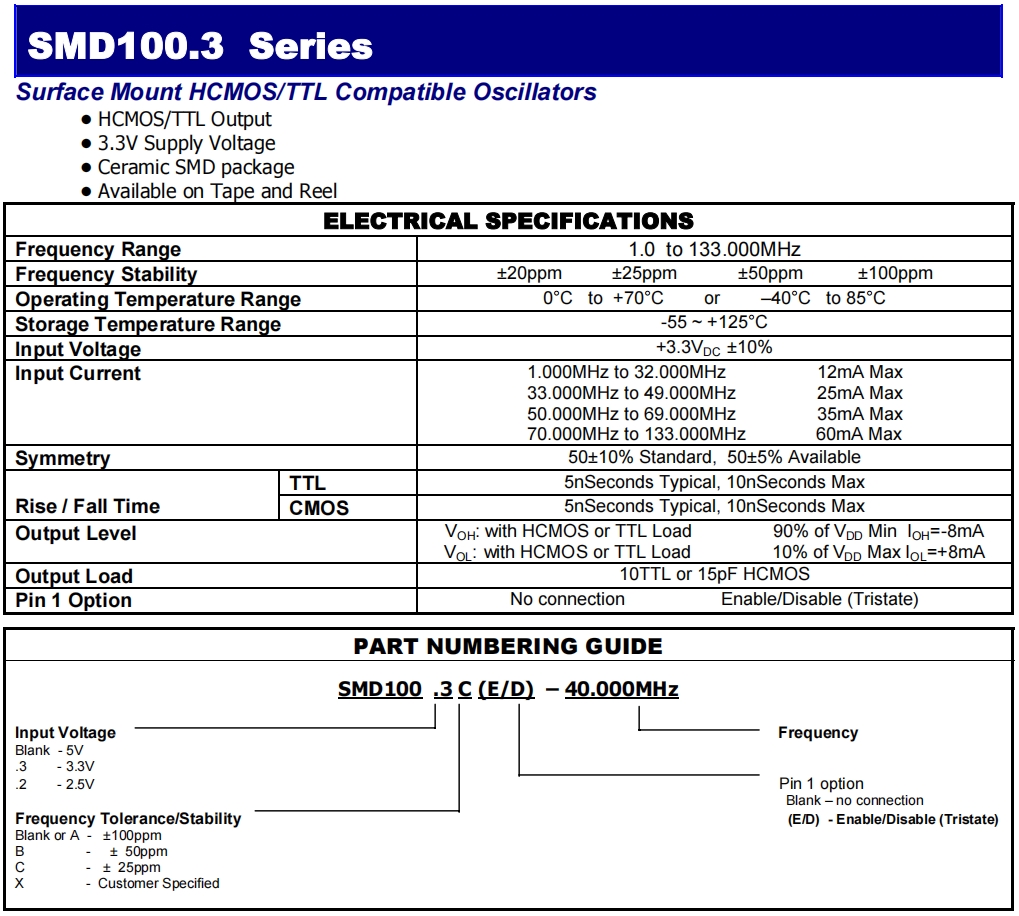

SMD100.3C(E/D)-12.000MHz,SMD100.3系列,7050mm,12MHZ,GED数字设备晶振 参数表
| ELECTRICAL SPECIFICATIONS | ||||||
| Frequency Range | 12.000MHz | |||||
| Frequency Stability | ±20ppm ±25ppm ±50ppm ±100ppm | |||||
| Operating Temperature Range | 0°C to +70°C or –40°C to 85°C | |||||
| Storage Temperature Range | -55 ~ +125°C | |||||
| Input Voltage | +3.3VDC ±10% | |||||
| Input Current |
1.000MHz to 32.000MHz 33.000MHz to 49.000MHz 50.000MHz to 69.000MHz 70.000MHz to 133.000MHz |
12mA Max 25mA Max 35mA Max 60mA Max |
||||
| Symmetry | 50±10% Standard, 50±5% Available | |||||
| Rise / Fall Time | TTL | 5nSeconds Typical, 10nSeconds Max | ||||
| CMOS | 5nSeconds Typical, 10nSeconds Max | |||||
| Output Level |
VOH : with HCMOS or TTL Load VOL : with HCMOS or TTL Load |
90% of VDD Min IOH=-8mA 10% of VDD Max IOL=+8mA |
||||
| Output Load | 10TTL or 15pF HCMOS | |||||
| Pin 1 Option | No connection Enable/Disable (Tristate) | |||||
SMD100.3C(E/D)-12.000MHz,SMD100.3系列,7050mm,12MHZ,GED数字设备晶振 尺寸图
