频率：10MHZ
尺寸：7.0×5.0mm
Fortiming富通晶振,XCB75-10M000-1A20D20,10MHZ,7050mm,美国进口晶振,美国富通晶体,石英贴片晶振,10MHZ石英晶体,四脚贴片晶振,7050mm微型晶振,水晶振动子,石英晶体谐振器,尺寸7.0×5.0mm,频率10MHZ,负载20pF,无铅晶振,低频晶振,低损耗晶振,高精度晶振,无线局域网晶振,寻呼机晶振,可视化电话晶振,移动通信晶振,蓝牙晶振.
Fortiming富通晶振,XCB75-10M000-1A20D20,10MHZ,7050mm特点:
符合RoHS（无铅），重要低频范围石英环保晶振
AT切割晶体，真空密封，具有优异的老化性能，扩展的温度范围
行业标准占地面积，紧凑尺寸（7x 5mm），最大高度1.3mm
卓越的可焊性

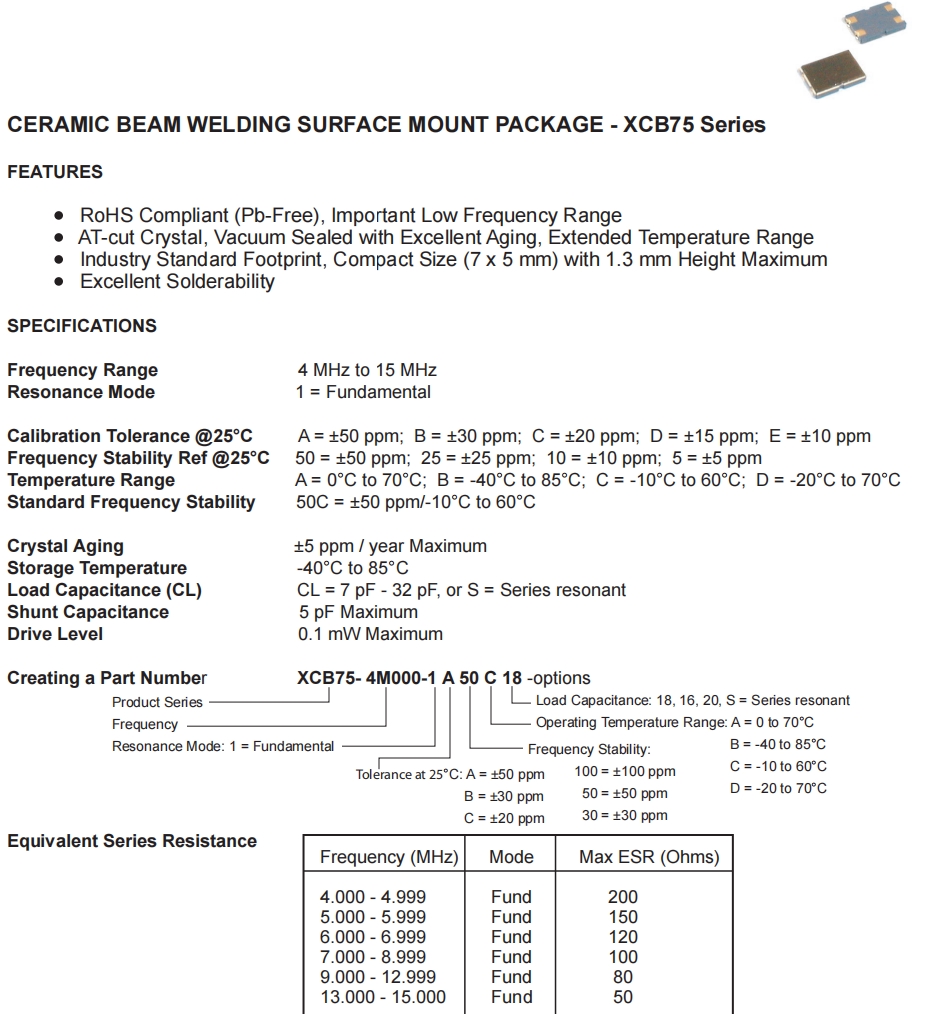

Fortiming富通晶振,XCB75-10M000-1A20D20,10MHZ,7050mm 参数表
| Frequency Range | 10 MHz | |||||||||||||||||||||||||
| Resonance Mode | 1 = Fundamental | |||||||||||||||||||||||||
| Calibration Tolerance @25°C | A = ±50 ppm; B = ±30 ppm; C = ±20 ppm; D = ±15 ppm; E = ±10 ppm | |||||||||||||||||||||||||
| Frequency Stability Ref @25°C | 50 = ±50 ppm; 25 = ±25 ppm; 10 = ±10 ppm; 5 = ±5 ppm | |||||||||||||||||||||||||
| Temperature Range | A = 0°C to 70°C; B = -40°C to 85°C; C = -10°C to 60°C; D = -20°C to 70°C | |||||||||||||||||||||||||
| Standard Frequency Stability | 50C = ±50 ppm/-10°C to 60°C | |||||||||||||||||||||||||
| Crystal Aging | ±5 ppm / year Maximum | |||||||||||||||||||||||||
| Storage Temperature | -40°C to 85°C | |||||||||||||||||||||||||
| Load Capacitance (CL) | CL = 7 pF - 32 pF, or S = Series resonant | |||||||||||||||||||||||||
| Shunt Capacitance | 5 pF Maximum | |||||||||||||||||||||||||
| Drive Level | 0.1 mW Maximum | |||||||||||||||||||||||||

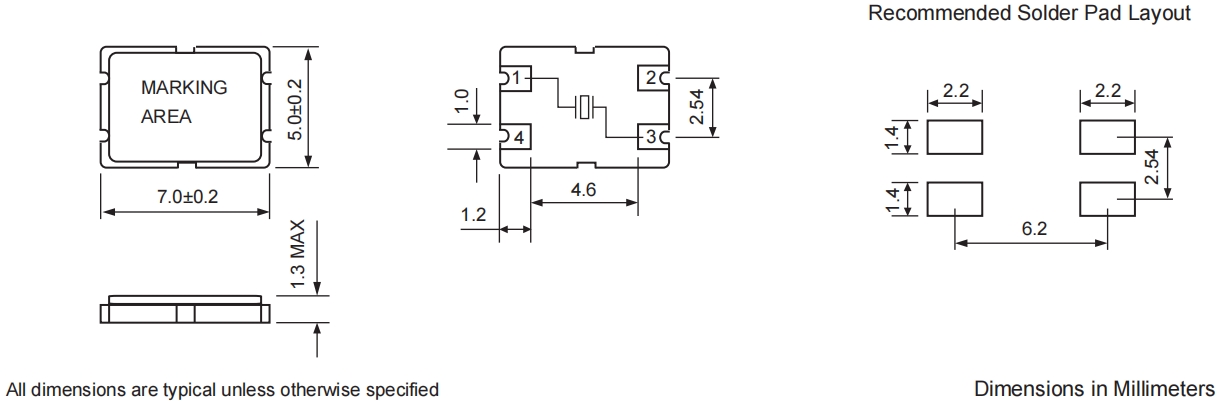

Fortiming富通晶振,XCB75-10M000-1A20D20,10MHZ,7050mm 尺寸图
