频率：12MHZ
尺寸：11.0*4.6mm
HC49U-12M000-1A50D16,12MHZ,HC49U系列插件晶体,Fortiming大尺寸晶振,富通石英晶体,欧美进口晶振,无源石英晶振,大尺寸晶振,12MHZ无源谐振器,石英晶振,石英插件晶振,水晶振动子,尺寸11.0*4.6mm,频率12MHZ,低成本晶振,无铅晶振,低损耗晶振,微处理器晶体,电话机晶振,数字视频晶振,移动设备晶振,电子设备晶振.
HC49U-12M000-1A50D16,12MHZ,HC49U系列插件晶体,Fortiming大尺寸晶振特点:
符合RoHS标准（无铅），可提供宽频率范围
AT切割插件晶振，出色的时效性，扩展的温度范围
工业标准封装，低成本，微处理器晶体
选项：顶部焊接第三根引线；乙烯基套筒；绝缘子接线片；SMT成型引线

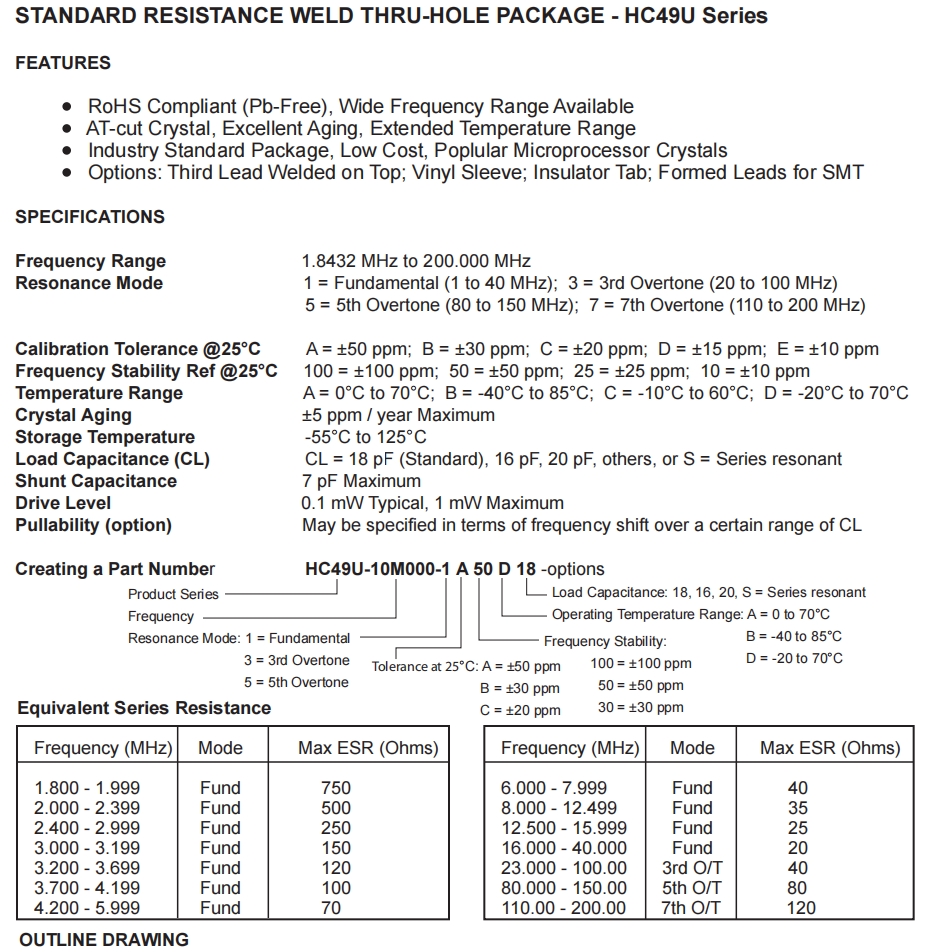

HC49U-12M000-1A50D16,12MHZ,HC49U系列插件晶体,Fortiming大尺寸晶振 参数表
| Frequency Range | 12.000 MHz | |||||||
| Resonance Mode |
1 = Fundamental (1 to 40 MHz); 3 = 3rd Overtone (20 to 100 MHz) 5 = 5th Overtone (80 to 150 MHz); 7 = 7th Overtone (110 to 200 MHz) |
|||||||
| Calibration Tolerance @25°C | A = ±50 ppm; B = ±30 ppm; C = ±20 ppm; D = ±15 ppm; E = ±10 ppm | |||||||
| Frequency Stability Ref @25°C | 100 = ±100 ppm; 50 = ±50 ppm; 25 = ±25 ppm; 10 = ±10 ppm | |||||||
| Temperature Range | A = 0°C to 70°C; B = -40°C to 85°C; C = -10°C to 60°C; D = -20°C to 70°C | |||||||
| Crystal Aging | ±5 ppm / year Maximum | |||||||
| Storage Temperature | -55°C to 125°C | |||||||
| Load Capacitance (CL) | CL = 18 pF (Standard), 16 pF, 20 pF, others, or S = Series resonant | |||||||
| Shunt Capacitance | 7 pF Maximum | |||||||
| Drive Level | 0.1 mW Typical, 1 mW Maximum | |||||||
| Pullability (option) | May be specified in terms of frequency shift over a certain range of CL | |||||||

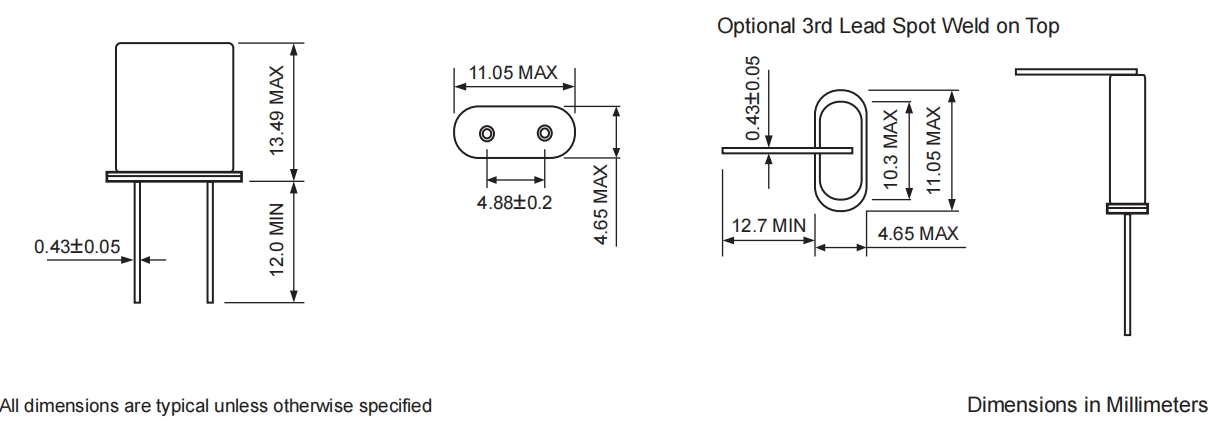

HC49U-12M000-1A50D16,12MHZ,HC49U系列插件晶体,Fortiming大尺寸晶振 尺寸图
