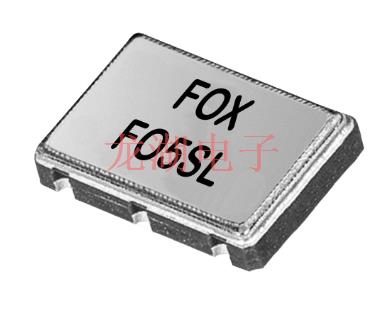

频率：106.25MHz

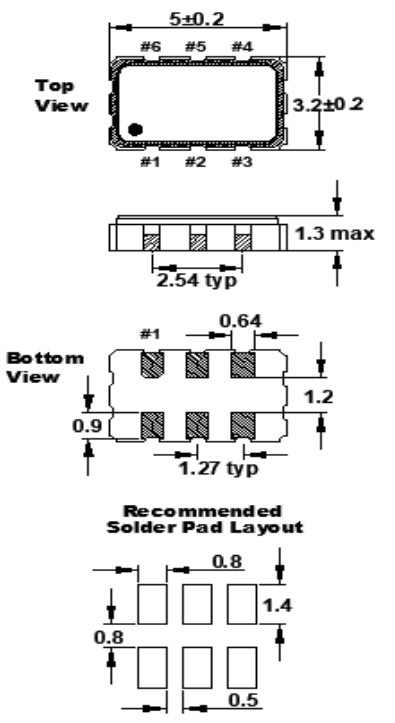

尺寸：5.0*3.2mm
FO5LSCDM106.25-T1,FOX石英晶振,有源晶振,高频晶振,进口晶振,欧美石英晶振,福克斯石英晶体振荡器,编码:FO5LSCDM106.25-T1,型号:FO5SL,高频率晶振,频率:106.25MHz,电压:3.3V,超耐热的特性,即使在-40°C至85°C的恶例环境也能持续且平稳的运行,被广泛的运用在收音机,空调,智能手机,机顶盒等产业,
FO5LSCDM106.25-T1,FOX石英晶振,有源晶振,高频晶振

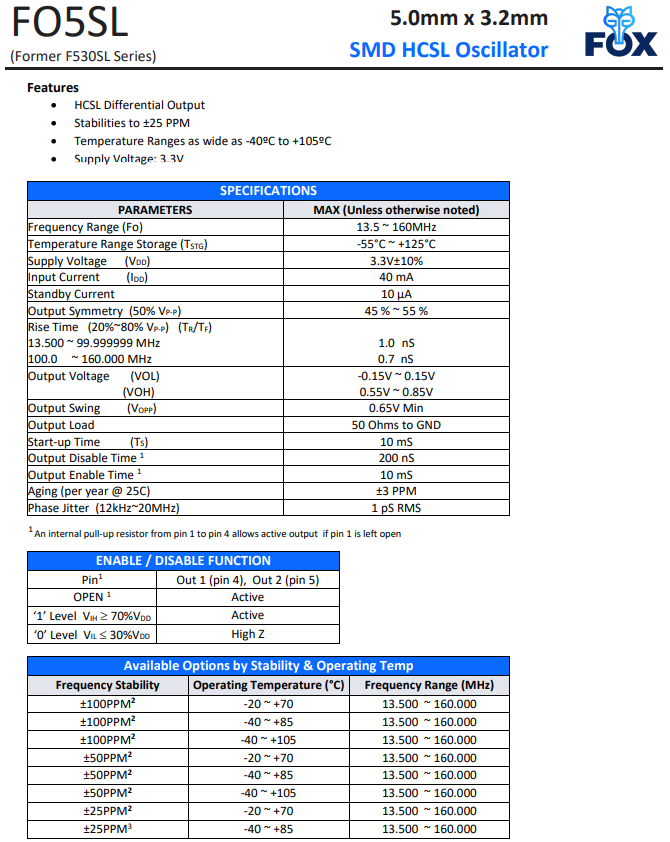

| 原厂编码 | FO5LSCDM106.25-T1 |
| 频率 | 106.25MHz |
| 厂家 | FOX晶振 |
| 型号 | FO5SL |
| 频率偏差 | ±25ppm |
| 电压 | 3.3V |
| 工作温度 | -40°C至85°C |
| 尺寸 | 5.0*3.2mm |
FO5LSCDM106.25-T1,FOX石英晶振,有源晶振,高频晶振
| 物料编码 | 品牌 | 型号 | 频率 | 电压 | 频率偏差 |
| FO3HACBP16.0-T1 | FOX crystal | FO3HA | 16 MHz | 3.3V | ±50ppm |
| FO3HKCDM0.032768-T3 | FOX crystal | FO3HK | 32.768 kHz | 3.3V | ±25ppm |
| FO3HLBAM26.0-T2 | FOX crystal | FO3HL | 26 MHz | 3.3V | ±100ppm |
| FO3HLBAM33.333-T2 | FOX crystal | FO3HL | 33.333 MHz | 3.3V | ±100ppm |
| FO3HLBBM48.0-T1 | FOX crystal | FO3HL | 48 MHz | 3.3V | ±50ppm |
| FO3HLBDM25.0-T1 | FOX crystal | FO3HL | 25 MHz | 3.3V | ±25ppm |
| FO3HSCBE12.0-T1 | FOX crystal | FO3HS | 12 MHz | 3.3V | ±50ppm |
| FO3HSCBE24.0-T1 | FOX crystal | FO3HS | 24 MHz | 3.3V | ±50ppm |
| FO3HSCBM20.0-T2 | FOX crystal | FO3HS | 20 MHz | 3.3V | ±50ppm |
| FO3HSCBM28.63636-T1 | FOX crystal | FO3HS | 28.63636 MHz | 3.3V | ±50ppm |
| FO3HSCBM32.0-T1 | FOX crystal | FO3HS | 32 MHz | 3.3V | ±50ppm |
| FO3HSCBM48.0-T2 | FOX crystal | FO3HS | 48 MHz | 3.3V | ±50ppm |
| FO3HSCDE12.0-T2 | FOX crystal | FO3HS | 12 MHz | 3.3V | ±25ppm |
| FO3HSKBM27.0-T1 | FOX crystal | FO3HS | 27 MHz | 1.8V | ±50ppm |
| FO3HSKDM24.0-T1 | FOX crystal | FO3HS | 24 MHz | 1.8V | ±25ppm |
| FO3HSKDM24.0-T2 | FOX crystal | FO3HS | 24 MHz | 1.8V | ±25ppm |
| FO3HSKDM33.333-T2 | FOX crystal | FO3HS | 33.333 MHz | 1.8V | ±25ppm |
| FO3HWBFP26.0 | FOX crystal | FO3HW | 26 MHz | 3.3V | ±15ppm |
| FO3LSCBM125.0-T3 | FOX crystal | FO3LS | 125 MHz | 3.3V | ±50ppm |
| FO3PSCBF50.0-T3 | FOX crystal | FO3PS | 50 MHz | 3.3V | ±50ppm |
| FO3SLBDM125.0 | FOX crystal | FO3SL | 125 MHz | 3.3V | ±25ppm |
| FO5HACAI16.0-T1 | FOX crystal | FO5HA | 16 MHz | 3.3V | ±100ppm |
| FO5HACAI20.0-T1 | FOX crystal | FO5HA | 20 MHz | 3.3V | ±100ppm |
| FO5HLBAM32.0-T1 | FOX crystal | FO5HL | 32 MHz | 3.3V | ±100ppm |
