频率：32.768KHz
尺寸：2.5*2.0mm
FO2HKCED0.032768-T1,福克斯晶振,有源晶振,石英晶振,32.768k,低频晶振,耐热晶振,抗振晶振,高精度晶振,低损耗晶振,低功耗晶振,低频率晶振,高稳定晶振,高性能晶振,石英晶体振荡器,这款福克斯晶振尺寸仅有2520mm,所使用的材料都符合欧盟环保要求.石英不仅有着比陶瓷更好的抗冲击性,石英使用寿命也是非常长的,

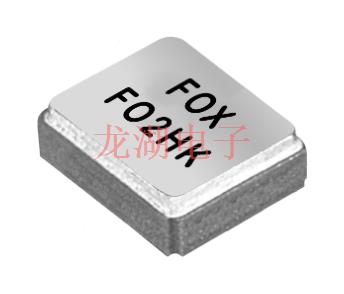

FO2HKCED0.032768-T1,福克斯晶振,有源晶振,石英晶振
| 原厂编码 | FO2HKCED0.032768-T1 |
| 频率 | 32.768KHz |
| 厂家 | FOX晶振 |
| 型号 | FO2HK |
| 频率偏差 | ±20ppm |
| 电压 | 3.3V |
| 工作温度 | -10°C至60°C |

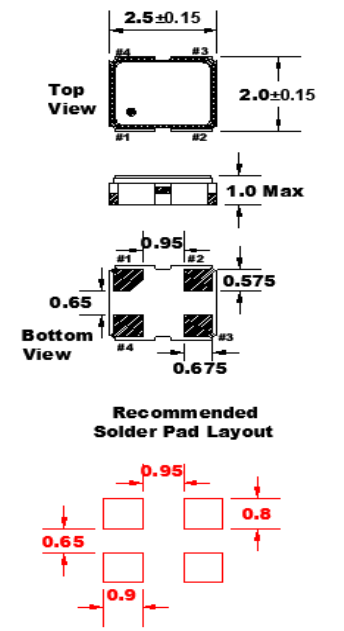

| 尺寸 | 2.5*2.0mm |
FO2HKCED0.032768-T1,福克斯晶振,有源晶振,石英晶振
| 物料编码 | 品牌 | 型号 | 频率 | 电压 | 频率偏差 |
| FO7HSCAE16.0-T2 | FOX crystal | FO7HS | 16 MHz | 3.3V | ±100ppm |
| FO7HSCAE20.0-T1 | FOX crystal | FO7HS | 20 MHz | 3.3V | ±100ppm |
| FO7HSCAE20.0-T2 | FOX crystal | FO7HS | 20 MHz | 3.3V | ±100ppm |
| FO7HSCAE25.0-T2 | FOX crystal | FO7HS | 25 MHz | 3.3V | ±100ppm |
| FO7HSCAE3.6864-T1 | FOX crystal | FO7HS | 3.6864 MHz | 3.3V | ±100ppm |
| FO7HSCAE3.6864-T2 | FOX crystal | FO7HS | 3.6864 MHz | 3.3V | ±100ppm |
| FO7HSCAE30.0-T2 | FOX crystal | FO7HS | 30 MHz | 3.3V | ±100ppm |
| FO7HSCAE32.0-T2 | FOX crystal | FO7HS | 32 MHz | 3.3V | ±100ppm |
| FO7HSCAE33.333-T1 | FOX crystal | FO7HS | 33.333 MHz | 3.3V | ±100ppm |
| FO7HSCAE33.333-T2 | FOX crystal | FO7HS | 33.333 MHz | 3.3V | ±100ppm |
| FO7HSCAE4.0-T2 | FOX crystal | FO7HS | 4 MHz | 3.3V | ±100ppm |
| FO7HSCAE4.096-T1 | FOX crystal | FO7HS | 4.096 MHz | 3.3V | ±100ppm |
| FO7HSCAE40.0-T1 | FOX crystal | FO7HS | 40 MHz | 3.3V | ±100ppm |
| FO7HSCAE40.0-T2 | FOX crystal | FO7HS | 40 MHz | 3.3V | ±100ppm |
| FO7HSCAE48.0-T1 | FOX crystal | FO7HS | 48 MHz | 3.3V | ±100ppm |
| FO7HSCAE48.0-T2 | FOX crystal | FO7HS | 48 MHz | 3.3V | ±100ppm |
| FO7HSCAE50.0-T1 | FOX crystal | FO7HS | 50 MHz | 3.3V | ±100ppm |
| FO7HSCAE50.0-T2 | FOX crystal | FO7HS | 50 MHz | 3.3V | ±100ppm |
| FO7HSCAE55.0-T1 | FOX crystal | FO7HS | 55 MHz | 3.3V | ±100ppm |
| FO7HSCAE66.6667-T1 | FOX crystal | FO7HS | 66.6667 MHz | 3.3V | ±100ppm |
| FO7HSCAE66.6667-T2 | FOX crystal | FO7HS | 66.6667 MHz | 3.3V | ±100ppm |
| FO7HSCAE7.372-T1 | FOX crystal | FO7HS | 7.372 MHz | 3.3V | ±100ppm |
| FO7HSCAE7.372-T2 | FOX crystal | FO7HS | 7.372 MHz | 3.3V | ±100ppm |
| FO7HSCAE8.0-T1 | FOX crystal | FO7HS | 8 MHz | 3.3V | ±100ppm |
| FO7HSCAF30.0-T1 | FOX crystal | FO7HS | 30 MHz | 3.3V | ±100ppm |
| FO7HSCAF4.096-T1 | FOX crystal | FO7HS | 4.096 MHz | 3.3V | ±100ppm |
| FO7HSCAF60.0-T1 | FOX crystal | FO7HS | 60 MHz | 3.3V | ±100ppm |
