频率：16MHz
尺寸：3.2*2.5mm
FC3BACBDI16.0-T3,石英贴片,fox小型晶振,环保晶振,福克斯电子石英晶振谐振器,超薄晶振,小尺寸晶振,无源贴片晶振,进口晶振,导热型晶振,FC3BA晶振,16MHz晶振,车载晶振,在-40到12度也能平稳的且持续的运行,优秀的适应性子在各种环境已有能够很快的适应,医疗器械晶振,智能机器人晶振面,有着陶瓷晶振更好的抗冲击
FC3BACBDI16.0-T3,石英贴片,fox小型晶振,环保晶振
原厂编码
FC3BACBDI16.0-T3
频率
16MHz
厂家
FOX晶振
型号
FC3BA
频率偏差
±50ppm
负载电容
8pF
工作温度
-40°C至12°C

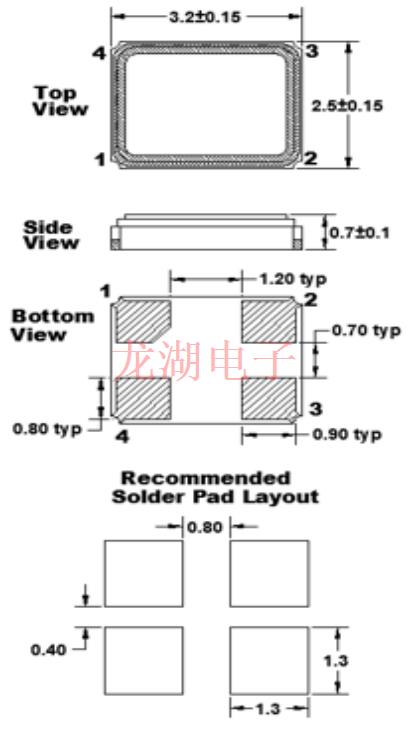

尺寸
3.2*2.5mm
FC3BACBDI16.0-T3,石英贴片,fox小型晶振,环保晶振
| 编码 | 品牌 | 型号 | 频率 | 频率偏差 | 频率容差 | 负载电容 |
| FC2BSBBMM16.0-T1 | Fox crystal | FC2BS | 16 MHz | ±50ppm | ±50ppm | 20 pF |
| FC2BSBBMM16.0-T3 | Fox crystal | FC2BS | 16 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BABBKM20.0-T3 | Fox crystal | FC3BA | 20 MHz | ±50ppm | ±50ppm | 16 pF |
| FC3BACAGI16.0-T3 | Fox crystal | FC3BA | 16 MHz | ±100ppm | ±30ppm | 12 pF |
| FC3BACALI16.0-T3 | Fox crystal | FC3BA | 16 MHz | ±100ppm | ±30ppm | 18 pF |
| FC3BACBDI16.0-T3 | Fox crystal | FC3BA | 16 MHz | ±50ppm | ±30ppm | 8 pF |
| FC3BACCGM20.0-T3 | Fox crystal | FC3BA | 20 MHz | ±30ppm | ±30ppm | 12 pF |
| FC3BACCLP12.0-T3 | Fox crystal | FC3BA | 12 MHz | ±30ppm | ±30ppm | 18 pF |
| FC3BAEBDI12.0-T1 | Fox crystal | FC3BA | 12 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI16.0-T1 | Fox crystal | FC3BA | 16 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI20.0-T1 | Fox crystal | FC3BA | 20 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI24.0-T1 | Fox crystal | FC3BA | 24 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI25.0-T1 | Fox crystal | FC3BA | 25 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI40.0-T1 | Fox crystal | FC3BA | 40 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI8.0-T1 | Fox crystal | FC3BA | 8 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBGI12.0-T1 | Fox crystal | FC3BA | 12 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BAEBGI24.0-T1 | Fox crystal | FC3BA | 24 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BAEBGI25.0-T1 | Fox crystal | FC3BA | 25 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BAEBGI40.0-T1 | Fox crystal | FC3BA | 40 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BQBBDM20.0-T3 | Fox crystal | FC3BQ | 20 MHz | ±50ppm | ±50ppm | 8 pF |
| FC3BQBBME12.0-T3 | Fox crystal | FC3BQ | 12 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME16.0-T1 | Fox crystal | FC3BQ | 16 MHz | ±50ppm | ±50ppm | 20 pF |
