频率：24.0MHz

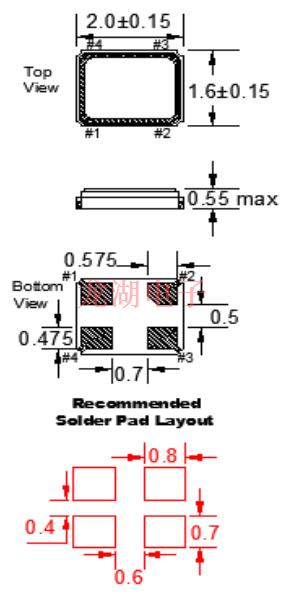

尺寸：2.0*1.6mm
FC1BAEBDI24.0-T1,抗冲击晶振,福克斯高温晶振,环保晶振,超薄晶振,2016mm贴片晶振,石英晶振,石英晶体谐振器,石英贴片晶振,抗冲击晶振,无铅环保晶振,高可靠性晶振,抗振晶振,低抖动晶振,超小型晶振,心电图晶振,数字热水表晶振,计算机晶振,电脑主机晶振,笔记本电脑晶振,数控车床控制板晶振,移动电话晶振,数码相机晶振,蓝牙晶振,
FC1BAEBDI24.0-T1,抗冲击晶振,福克斯高温晶振,环保晶振

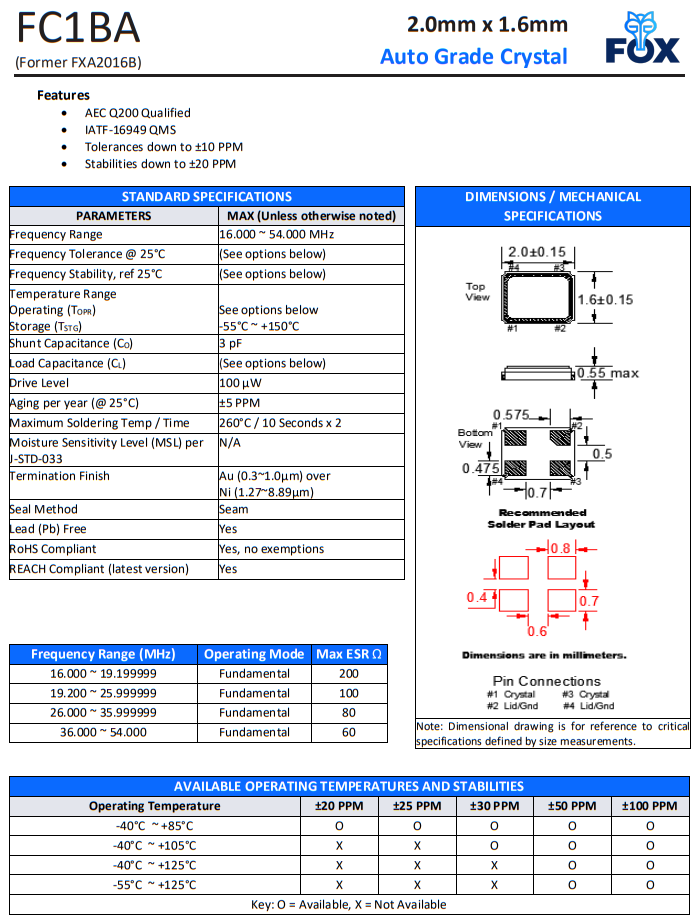

| 原厂编码 | FC1BAEBDI24.0-T1 |
| 频率 | 24MHz |
| 厂家 | FOX晶振 |
| 型号 | FC1BA |
| 频率偏差 | ±50ppm |
| 负载电容 | 8pF |
| 工作温度 | -40°C至125°C |
| 尺寸 | 2.0*1.6mm |
FC1BAEBDI24.0-T1,抗冲击晶振,福克斯高温晶振,环保晶振
| 编码 | 品牌 | 型号 | 频率 | 频率偏差 | 频率容差 | 负载电容 |
| FC3BSHHEF26.0-T3 | Fox crystal | FC3BS | 26 MHz | ±10ppm | ±10ppm | 10 pF |
| FC3BSHHEF32.0-T3 | Fox crystal | FC3BS | 32 MHz | ±10ppm | ±10ppm | 10 pF |
| FC3BSHLGA27.0-1-T3 | Fox crystal | FC3BS | 27 MHz | ±5ppm | ±10ppm | 12 pF |
| FC3VAEEGM50.0-T3 | Fox crystal | FC3VA | 50 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEDM38.4-T1 | Fox crystal | FC3VR | 38.4 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEDM38.88-T1 | Fox crystal | FC3VR | 38.88 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEDM40.0-T1 | Fox crystal | FC3VR | 40 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEDM48.0-T1 | Fox crystal | FC3VR | 48 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEEM38.4-T1 | Fox crystal | FC3VR | 38.4 MHz | ±20ppm | ±20ppm | 10 pF |
| FC3VREEGM36.0-T1 | Fox crystal | FC3VR | 36 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM38.4-T1 | Fox crystal | FC3VR | 38.4 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM38.88-T1 | Fox crystal | FC3VR | 38.88 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM40.0-T1 | Fox crystal | FC3VR | 40 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM50.0-T1 | Fox crystal | FC3VR | 50 MHz | ±20ppm | ±20ppm | 12 pF |
| FC4SDBBMF3.2-T1 | Fox crystal | FC4SD | 3.2 MHz | ±50ppm | ±50ppm | 20 pF |
| FC4SDCBGF24.0-T1 | Fox crystal | FC4SD | 24 MHz | ±50ppm | ±30ppm | 12 pF |
| FC4SDCBGF4.194304-T1 | Fox crystal | FC4SD | 4.194304 MHz | ±50ppm | ±30ppm | 12 pF |
| FC4SDCBGM8.0-T1 | Fox crystal | FC4SD | 8 MHz | ±50ppm | ±30ppm | 12 pF |
| FC4SDCBKF24.0-T1 | Fox crystal | FC4SD | 24 MHz | ±50ppm | ±30ppm | 16 pF |
| FC4SDCBLF3.579545-T1 | Fox crystal | FC4SD | 3.579545 MHz | ±50ppm | ±30ppm | 18 pF |
| FC4SDCBMF10.0-T1 | Fox crystal | FC4SD | 10 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMF11.0-T1 | Fox crystal | FC4SD | 11 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMF11.0592-T1 | Fox crystal | FC4SD | 11.0592 MHz | ±50ppm | ±30ppm | 20 pF |
