频率：36.86MHZ
尺寸：1.6x1.2mm
美国福克斯晶振,FC0BSFEEN36A860-T2,6G通讯模块晶体，尺寸1.6x1.2mm，频率36.86MHZ，FOX石英晶体，欧美进口晶振，1612mm无源晶体，SMD晶振，无线晶振，石英晶体，石英晶体谐振器，水晶振动子，SMD无源晶体，轻薄型晶振，无铅环保晶振，低损耗晶振，高质量石英晶振，高性能晶振，6G通信模块专用晶振，无线设备晶振，娱乐设备晶振，智能家居晶振，小型设备晶振，物联网专用晶振，便携式设备晶振，具有轻薄小高质量高可靠性能的特点，
在极端严酷的环境条件下,石英晶振也能正常工作,具有稳定的起振特性,高耐热性,耐热循环性和耐振性等。比较适合用于6G通信模块，无线设备，娱乐设备，智能家居，小型设备，物联网，便携式设备等.美国福克斯晶振,FC0BSFEEN36A860-T2,6G通讯模块晶体.
美国福克斯晶振,FC0BSFEEN36A860-T2,6G通讯模块晶体，尺寸1.6x1.2mm，频率36.86MHZ，FOX石英晶体，欧美进口晶振，1612mm无源晶体，SMD晶振，无线晶振，石英晶体，石英晶体谐振器，水晶振动子，SMD无源晶体，轻薄型晶振，无铅环保晶振，低损耗晶振，高质量石英晶振，高性能晶振，6G通信模块专用晶振，无线设备晶振，娱乐设备晶振，智能家居晶振，小型设备晶振，物联网专用晶振，便携式设备晶振，具有轻薄小高质量高可靠性能的特点，
在极端严酷的环境条件下,石英晶振也能正常工作,具有稳定的起振特性,高耐热性,耐热循环性和耐振性等。比较适合用于6G通信模块，无线设备，娱乐设备，智能家居，小型设备，物联网，便携式设备等.美国福克斯晶振,FC0BSFEEN36A860-T2,6G通讯模块晶体.

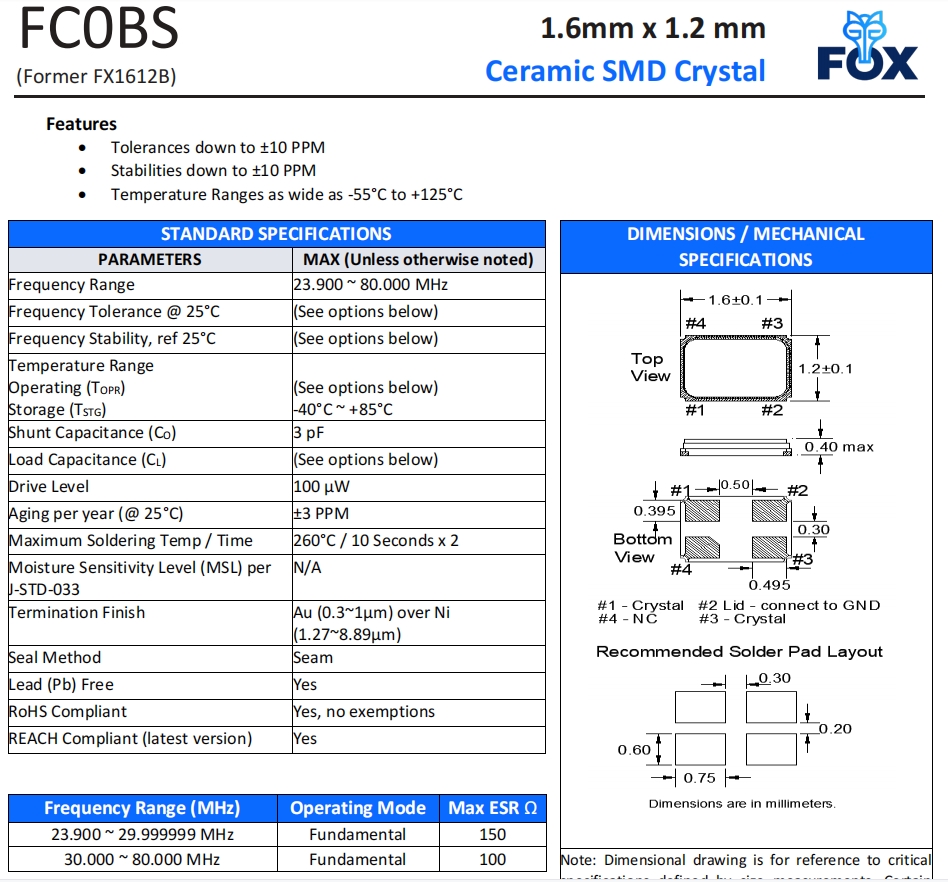

美国福克斯晶振,FC0BSFEEN36A860-T2,6G通讯模块晶体 参数表
| STANDARD SPECIFICATIONS | ||||||||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | |||||||||||||||
| Frequency Range | 36.860 MHz | |||||||||||||||

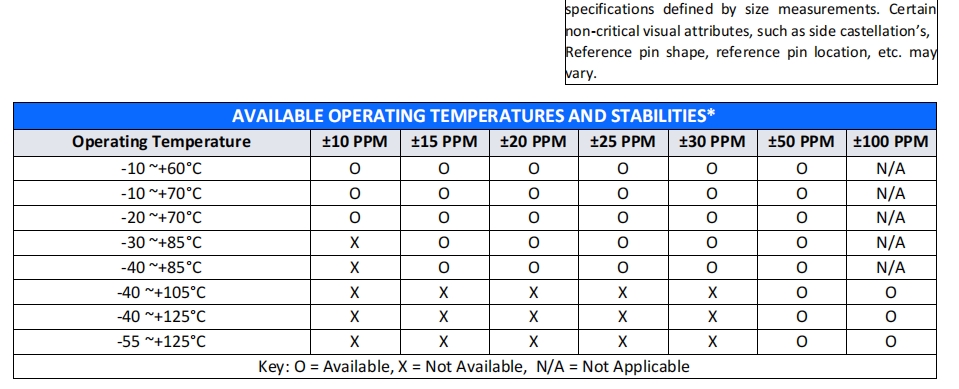

| Frequency Tolerance @ 25°C | (See options below) | |||||||||||||||
| Frequency Stability, ref 25°C | (See options below) | |||||||||||||||
|
Temperature Range Operating (TOPR) Storage (TSTG) |
(See options below) -40°C ~ +85°C |
|||||||||||||||
| Shunt Capacitance (CO) | 3 pF | |||||||||||||||
| Load Capacitance (CL) | (See options below) | |||||||||||||||
| Drive Level | 100 µW | |||||||||||||||
| Aging per year (@ 25°C) | ±3 PPM | |||||||||||||||
| Maximum Soldering Temp / Time | 260°C / 10 Seconds x 2 | |||||||||||||||
|
Moisture Sensitivity Level (MSL) per J-STD-033 |
N/A | |||||||||||||||
| Termination Finish |
Au (0.3~1µm) over Ni (1.27~8.89µm) |
|||||||||||||||
| Seal Method | Seam | |||||||||||||||
| Lead (Pb) Free | Yes | |||||||||||||||
| RoHS Compliant | Yes, no exemptions | |||||||||||||||
| REACH Compliant (latest version) | Yes | |||||||||||||||

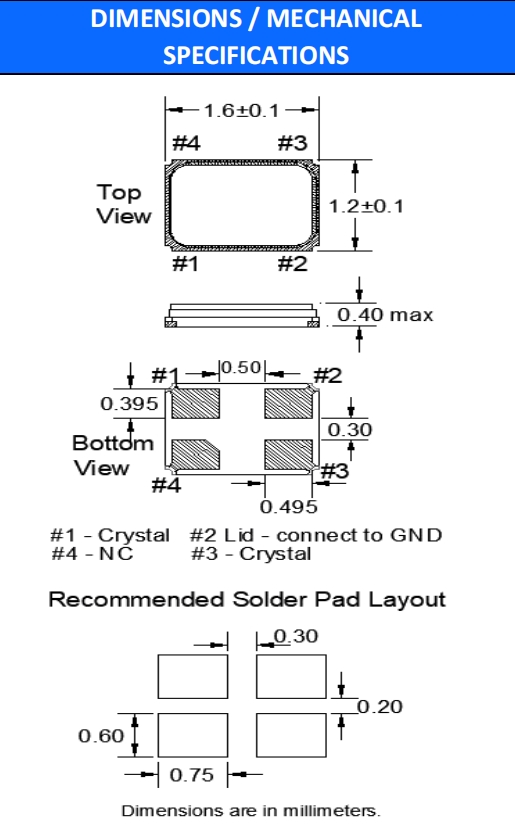

美国福克斯晶振,FC0BSFEEN36A860-T2,6G通讯模块晶体 尺寸图
SMD晶体产品特性：
公差低至±10PPM
稳定性低至±10PPM
温度范围宽至-55°C至+125°C
