EUROQUARTZ晶振,16.000MHz-EQXO-1050UIT3S,6G无线晶振,长方型钟振

频率：16MHZ

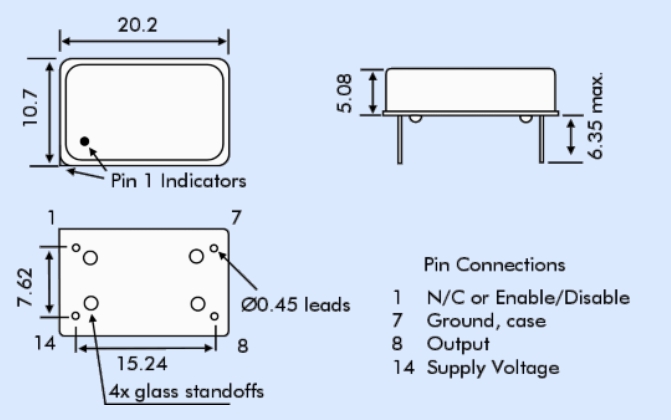

尺寸：20.2*10.7mm

EUROQUARTZ晶振,16.000MHz-EQXO-1050UIT3S,6G无线晶振,长方型钟振，尺寸为20.2*10.7mm,频率为16MHZ,时钟晶体振荡器，石英晶体振荡器，进口有源晶振，高性能晶振，低损耗晶振，低电压晶振，欧洲石英EQXO-1000系列14针双线振荡器包括一个通用，TTL/CMOS混合基板和石英晶体在一个密封封装。该有源振荡器以较低的单位成本提供了一个可靠的时钟信号源。EUROQUARTZ晶振,16.000MHz-EQXO-1050UIT3S,6G无线晶振,长方型钟振.

订购热线：0755-29952551

LH-1

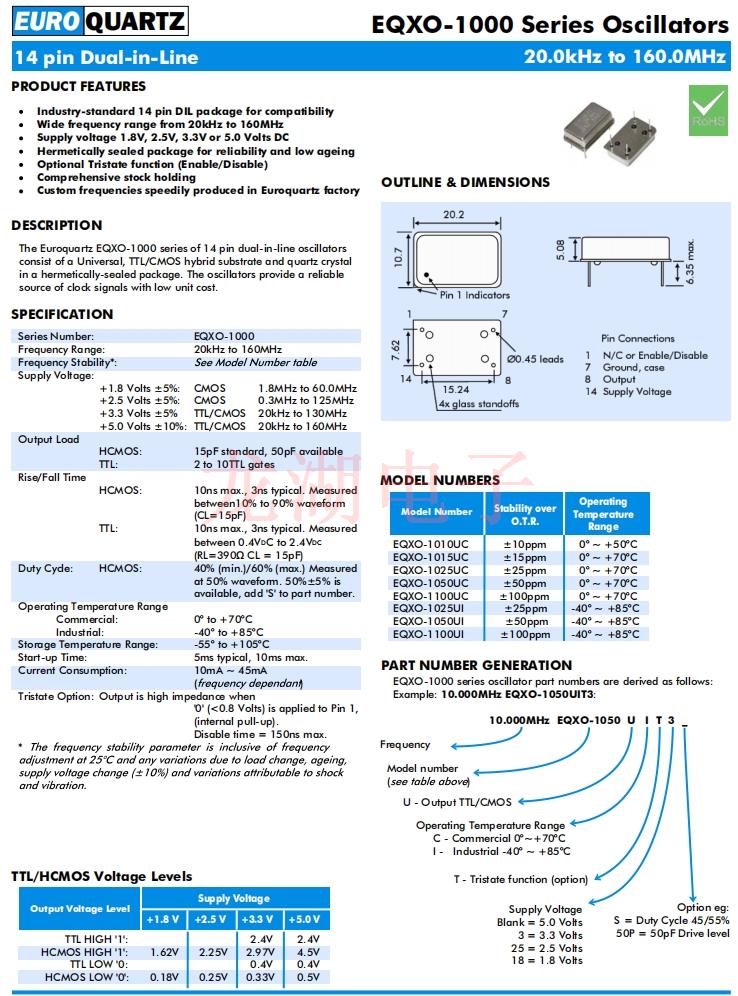

EUROQUARTZ晶振,16.000MHz-EQXO-1050UIT3S,6G无线晶振,长方型钟振 参数表

Supply Voltage: +1.8 Volts ±5%: CMOS 1.8MHz to 60.0MHz +2.5 Volts ±5%: CMOS 0.3MHz to 125MHz +3.3 Volts ±5% TTL/CMOS 20kHz to 130MHz +5.0 Volts ±10%: TTL/CMOS 20kHz to 160MHz
Output Load HCMOS: TTL:			15pF standard, 50pF available 2 to 10TTL gates
Rise/Fall Time HCMOS: TTL:			10ns max., 3ns typical. Measured between10% to 90% waveform (CL=15pF) 10ns max., 3ns typical. Measured between 0.4VDC to 2.4VDC (RL=390Q CL = 15pF)



Duty Cycle: HCMOS:			40% (min.)/60% (max.) Measured at 50% waveform. 50%±5% is available, add 'S' to part number.


Operating Temperature Range Commercial: Industrial:			0° to +70°C -40° to +85°C

Storage Temperature Range:
Start-up Time:			5ms typical, 10ms max.
Current Consumption:			10mA ~ 45mA
