频率：12 MHz

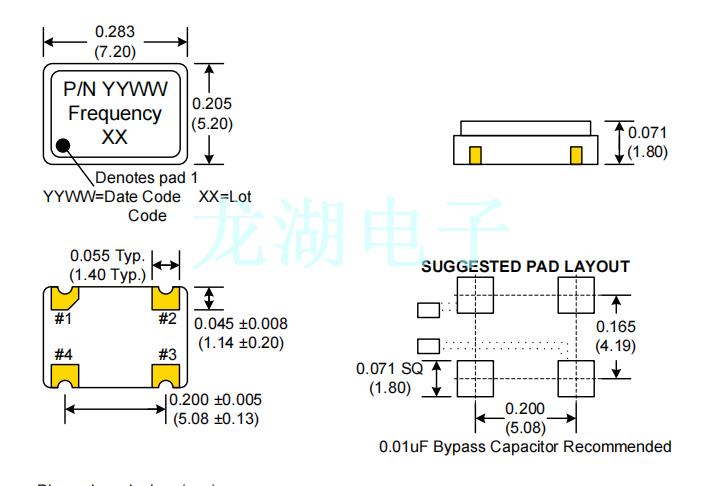

尺寸：7.0mm*5.0mm
C3291-12.000,4脚SMD晶振,瑞斯克石英晶振,石英振荡器,进口石英振荡器,欧美石英晶振,瑞斯克电子晶振厂家,抗抖动晶振,7.2*5.2贴片晶振,SPXO晶振,石英晶体振荡器,车载晶振,计时晶振,医疗晶振,无人机晶振,智能家居晶振,工厂设备晶振,数码产品晶振,万历表晶振,打印机晶振,复印机晶振,
C3291-12.000,4脚SMD晶振,瑞斯克石英晶振,石英振荡器,进口石英振荡器,欧美石英晶振,瑞斯克电子晶振厂家,抗抖动晶振,7.2*5.2贴片晶振,SPXO晶振,石英晶体振荡器,车载晶振,计时晶振,医疗晶振,无人机晶振,智能家居晶振,工厂设备晶振,数码产品晶振,万历表晶振,打印机晶振,复印机晶振,
C3291-12.000,4脚SMD晶振,瑞斯克石英晶振,石英振荡器
| 原厂编码 | C3291-12.000 |
| 频率 | 12MHz |
| 厂家 | 瑞斯克晶振 |
| 型号 | C3291 |
| 频率偏差 | ±25ppm |
| 电压 | 5v |
| 工作温度 | 0°C至70°C |
| 尺寸 | 7.2*5.2mm |
| Mfr Part # | Mfr | Series | Frequency | Voltage - Supply | Frequency Stability |
| C3291-2.048 | 斯瑞克 | C3291 | 2.048 MHz | 5V | ±25ppm |
| C3291-1.544 | 瑞斯克晶振 | C3291 | 1.544 MHz | 5V | ±25ppm |
| C3291-1.843200 | 瑞斯克晶振 | C3291 | 1.8432 MHz | 5V | ±25ppm |
| C3291-10.000 | 瑞斯克晶振 | C3291 | 10 MHz | 5V | ±25ppm |
| C3291-12.000 | 瑞斯克晶振 | C3291 | 12 MHz | 5V | ±25ppm |
| C3291-12.288 | 瑞斯克晶振 | C3291 | 12.288 MHz | 5V | ±25ppm |
| C3291-12.352 | 瑞斯克晶振 | C3291 | 12.352 MHz | 5V | ±25ppm |
| C3291-14.318180 | 瑞斯克晶振 | C3291 | 14.31818 MHz | 5V | ±25ppm |
| C3291-15.360 | 瑞斯克晶振 | C3291 | 15.36 MHz | 5V | ±25ppm |
| C3291-16.000 | 瑞斯克晶振 | C3291 | 16 MHz | 5V | ±25ppm |
| C3291-16.384 | 瑞斯克晶振 | C3291 | 16.384 MHz | 5V | ±25ppm |
| C3291-18.432 | 瑞斯克晶振 | C3291 | 18.432 MHz | 5V | ±25ppm |
| C3291-19.440 | 瑞斯克晶振 | C3291 | 19.44 MHz | 5V | ±25ppm |
| C3291-20.000 | 瑞斯克晶振 | C3291 | 20 MHz | 5V | ±25ppm |
| C3291-20.480 | 瑞斯克晶振 | C3291 | 20.48 MHz | 5V | ±25ppm |
| C3291-24.000 | 瑞斯克晶振 | C3291 | 24 MHz | 5V | ±25ppm |
| C3291-24.704 | 瑞斯克晶振 | C3291 | 24.704 MHz | 5V | ±25ppm |
| C3291-25.000 | 瑞斯克晶振 | C3291 | 25 MHz | 5V | ±25ppm |
| C3291-3.686400 | 瑞斯克晶振 | C3291 | 3.6864 MHz | 5V | ±25ppm |
| C3291-30.000 | 瑞斯克晶振 | C3291 | 30 MHz | 5V | ±25ppm |
| C3291-32.000 | 瑞斯克晶振 | C3291 | 32 MHz | 5V | ±25ppm |
| C3291-32.768 | 瑞斯克晶振 | C3291 | 32.768 MHz | 5V | ±25ppm |
| C3291-33.000 | 瑞斯克晶振 | C3291 | 33 MHz | 5V | ±25ppm |
| C3291-33.333 | 瑞斯克晶振 | C3291 | 33.333 MHz | 5V | ±25ppm |
| C3291-35.000 | 瑞斯克晶振 | C3291 | 35 MHz | 5V | ±25ppm |
| C3291-4.000 | 瑞斯克晶振 | C3291 | 4 MHz | 5V | ±25ppm |
| C3291-40.000 | 瑞斯克晶振 | C3291 | 40 MHz | 5V | ±25ppm |
| C3291-44.736 | 瑞斯克晶振 | C3291 | 44.736 MHz | 5V | ±25ppm |
| C3291-45.000 | 瑞斯克晶振 | C3291 | 45 MHz | 5V | ±25ppm |
| C3291-49.152 | 瑞斯克晶振 | C3291 | 49.152 MHz | 5V | ±25ppm |
| C3291-50.000 | 瑞斯克晶振 | C3291 | 50 MHz | 5V | ±25ppm |
| C3291-51.840 | 瑞斯克晶振 | C3291 | 51.84 MHz | 5V | ±25ppm |
| C3291-6.176 | 瑞斯克晶振 | C3291 | 6.176 MHz | 5V | ±25ppm |
| C3291-7.372800 | 瑞斯克晶振 | C3291 | 7.3728 MHz | 5V | ±25ppm |
| C3291-8.000 | 瑞斯克晶振 | C3291 | 8 MHz | 5V | ±25ppm |
| CE3291-1.544 | 瑞斯克晶振 | C3291 | 1.544 MHz | 5V | ±25ppm |
| CE3291-1.843200 | 瑞斯克晶振 | C3291 | 1.8432 MHz | 5V | ±25ppm |
| CE3291-10.000 | 瑞斯克晶振 | C3291 | 10 MHz | 5V | ±25ppm |
| CE3291-12.000 | 瑞斯克晶振 | C3291 | 12 MHz | 5V | ±25ppm |
