频率：25MHz
尺寸：12.5x4.5mm
CSM1Z-A5B2C3-40-25.0D18-F,25MHz,Cardinal蓝牙模块晶振，美国进口晶振，Cardinal晶振，卡迪纳尔晶振，型号：CSM1系列，编码为：CSM1Z-A5B2C3-40-25.0D18-F，频率：25MHz，频率稳定性：±50ppm，工作温度范围：-20℃至+70℃，负载电容：18pF，频率容差：±30ppm，是一款小体积晶振尺寸：12.5x4.5mm金属包装，两脚贴片晶振，石英晶振，石英晶体谐振器，无源晶振，无铅环保晶振，SMD晶体，谐振器，是一款椭圆形金属壳封装晶振，低轮廓表面安装晶体。被广泛用于：通讯设备晶振，无线网络晶振，蓝牙模块晶振，无线局域网晶振，MPU，微控制器，机顶盒等应用.
CSM1Z-A5B2C3-40-25.0D18-F,25MHz,Cardinal蓝牙模块晶振，产品特点：
•薄型表面贴装水晶
•封装是自动表面安装组件和回流焊实践的理想选择
•CSM1-4.6毫米；CSM4-3.5毫米；CSM5-3.0mm高
•AT切割水晶SMD晶振
•频率范围：3.579545MHz至80MHz

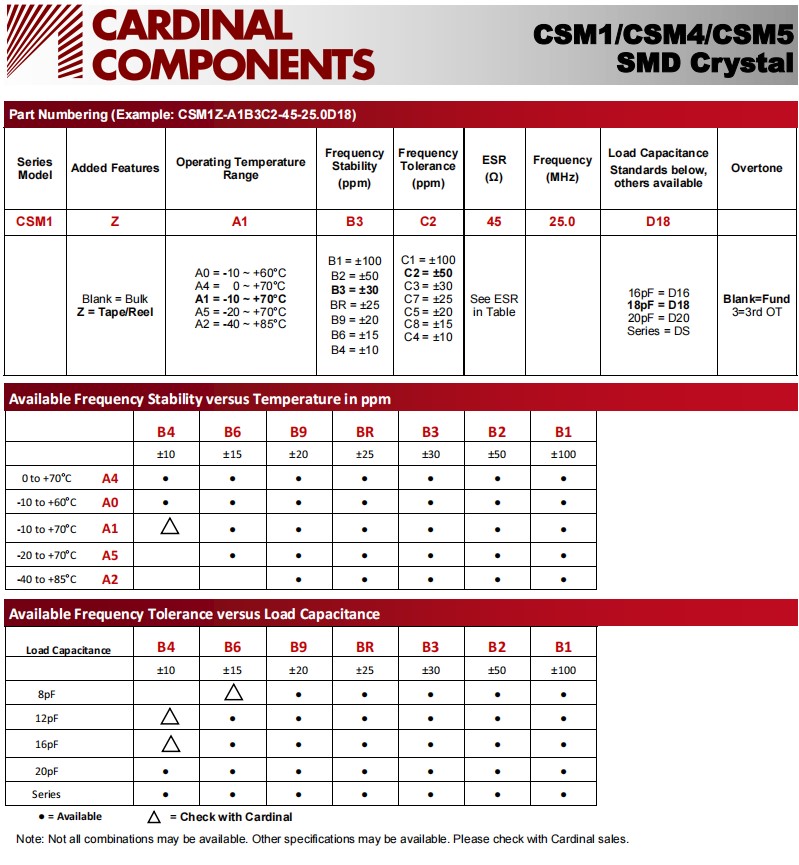

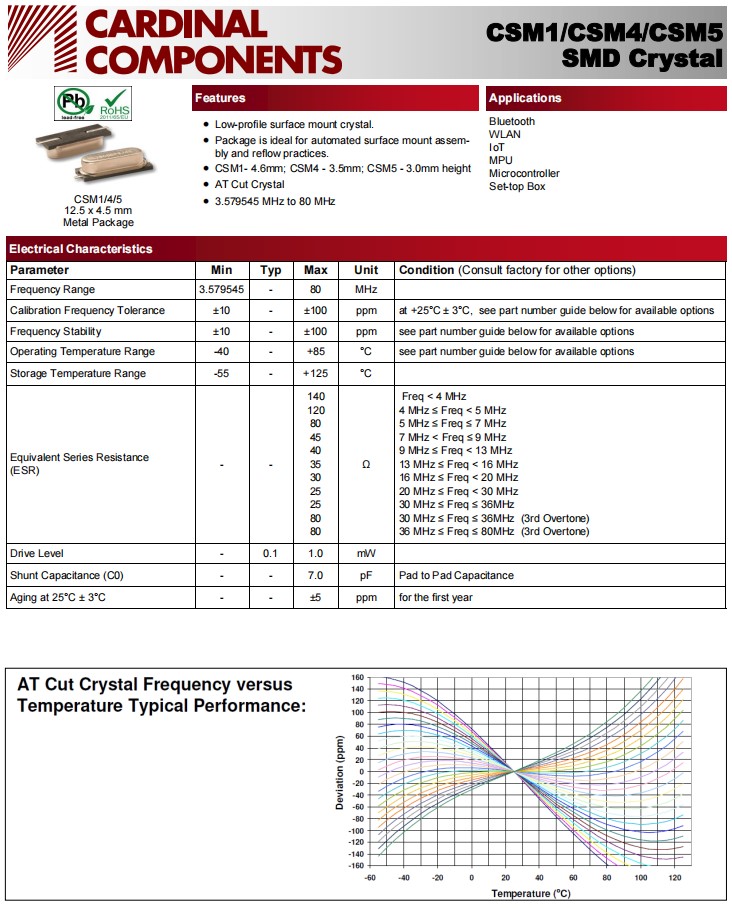

CSM1Z-A5B2C3-40-25.0D18-F,25MHz,Cardinal蓝牙模块晶振,参数表
| Parameter | Min | Typ | Max | Unit | Condition (Consult factory for other options) | |||||||||||||||||||||||
| Frequency Range |
|
25 |
|
MHz | ||||||||||||||||||||||||
| Calibration Frequency Tolerance | ±10 | - | ±100 | ppm | at +25°C ± 3°C, see part number guide below for available options | |||||||||||||||||||||||
| Frequency Stability | ±10 | - | ±100 | ppm | see part number guide below for available options | |||||||||||||||||||||||
| Operating Temperature Range | -40 | - | +85 | °C | see part number guide below for available options | |||||||||||||||||||||||
| Storage Temperature Range | -55 | - | +125 | °C | ||||||||||||||||||||||||
|
Equivalent Series Resistance (ESR) |
- | - |
140 120 80 45 40 35 30 25 25 80 80 |
Ω |
Freq < 4 MHz 4 MHz ≤ Freq < 5 MHz 5 MHz ≤ Freq ≤ 7 MHz 7 MHz < Freq ≤ 9 MHz 9 MHz ≤ Freq < 13 MHz 13 MHz ≤ Freq < 16 MHz 16 MHz ≤ Freq < 20 MHz 20 MHz ≤ Freq < 30 MHz 30 MHz ≤ Freq ≤ 36MHz 30 MHz ≤ Freq ≤ 36MHz (3rd Overtone) 36 MHz ≤ Freq ≤ 80MHz (3rd Overtone) |
|||||||||||||||||||||||
| Drive Level | - | 0.1 | 1.0 | mW | ||||||||||||||||||||||||
| Shunt Capacitance (C0) | - | - | 7.0 | pF | Pad to Pad Capacitance | |||||||||||||||||||||||
| Aging at 25°C ± 3°C | - | - | ±5 | ppm | for the first year | |||||||||||||||||||||||

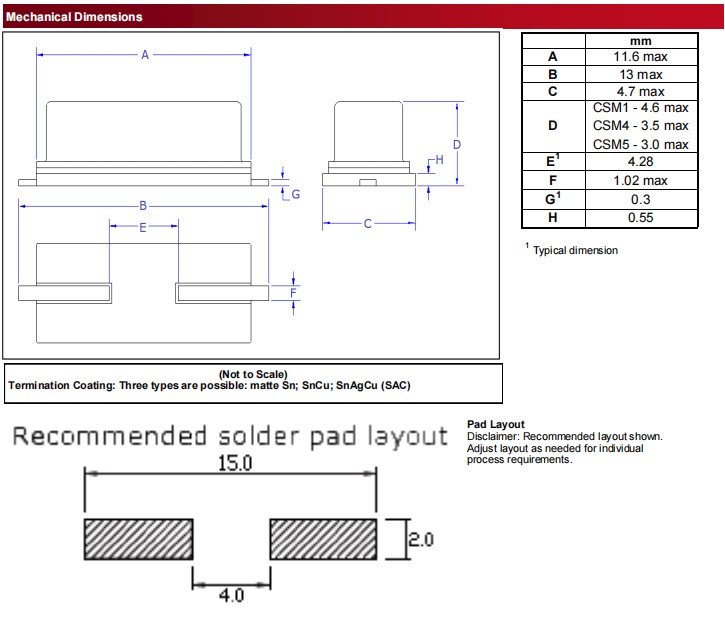

CSM1Z-A5B2C3-40-25.0D18-F,25MHz,Cardinal蓝牙模块晶振,尺寸图
| 石英晶体 | 厂家 | 型号 | 系列 | 频率 |
| CSM1Z-A5B2C3-40-14.31818D18 | Cardinal晶振 | CSM1 | MHz Crystal | 14.31818MHz |
| CSM1Z-A5B2C5-60-24.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 24MHz |
| CSM1Z-A2B2C3-40-30.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 30MHz |
| CSM1Z-A0B2C3-50-22.1184D18 | Cardinal晶振 | CSM1 | MHz Crystal | 22.1184MHz |
| CSM1Z-A0B2C3-100-5.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 5MHz |
| CSM1Z-A5B2C5-40-14.7456D18 | Cardinal晶振 | CSM1 | MHz Crystal | 14.7456MHz |
| CSM1Z-A5B2C3-40-25.0D18-F | Cardinal晶振 | CSM1 | MHz Crystal | 25MHz |
| CSM1Z-A0B2C3-50-16.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 16MHz |
| CSM1Z-A5B2C5-50-20.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 20MHz |
| CSM1Z-A1B2C3-90-8.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 8MHz |
| CSM1Z-A5B2C5-40-11.0592D18 | Cardinal晶振 | CSM1 | MHz Crystal | 11.0592MHz |
| CSM1Z-A0B2C3-50-15.360D18 | Cardinal晶振 | CSM1 | MHz Crystal | 15.36MHz |
| CSM1Z-A0B2C3-50-19.6608D18 | Cardinal晶振 | CSM1 | MHz Crystal | 19.6608MHz |
| CSM1Z-A5B2C3-40-14.7456D20 | Cardinal晶振 | CSM1 | MHz Crystal | 14.7456MHz |
| CSM1Z-A0B2C3-80-13.5D18 | Cardinal晶振 | CSM1 | MHz Crystal | 13.5MHz |
| CSM1Z-A0B2C3-50-16.257D18 | Cardinal晶振 | CSM1 | MHz Crystal | 16.257MHz |
| CSM1Z-A5B2C3-40-24.576D18 | Cardinal晶振 | CSM1 | MHz Crystal | 24.576MHz |
| CSM1Z-A0B2C3-50-16.000312D18 | Cardinal晶振 | CSM1 | MHz Crystal | 16.000312MHz |
| CSM1Z-A0B2C3-50-18.0D18 | 进口晶振 | CSM1 | MHz Crystal | 18MHz |
| CSM1Z-A0B2C3-200-3.6864D18 | Cardinal晶振 | CSM1 | MHz Crystal | 3.6864MHz |
| CSM1Z-A5B2C3-200-3.6864D18 | Cardinal晶振 | CSM1 | MHz Crystal | 3.6864MHz |
| CSM1Z-A0B2C3-150-4.9152D18 | Cardinal晶振 | CSM1 | MHz Crystal | 4.915MHz |
| CSM1Z-A0B2C3-40-25.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 25MHz |
| CSM1Z-A5B2C5-70-10.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 10MHz |
| CSM1Z-A0B2C3-50-25.175D18 | Cardinal晶振 | CSM1 | MHz Crystal | 25.175MHz |
| CSM1Z-A5B2C3-120-6.144D18 | Cardinal晶振 | CSM1 | MHz Crystal | 6.144MHz |
| CSM1-A1B2C3-50-20.0D16 | Cardinal晶振 | CSM1 | MHz Crystal | 20MHz |
| CSM1Z-A5B2C5-150-3.6864D18 | Cardinal晶振 | CSM1 | MHz Crystal | 3.6864MHz |
| CSM1Z-A5B2C5-40-10.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 10MHz |
| CSM1Z-A0B2C3-50-27.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 27MHz |
| CSM1Z-A0B2C3-100-7.3728D18 | Cardinal晶振 | CSM1 | MHz Crystal | 7.3728MHz |
| CSM1Z-A0B2C3-100-6.144D18 | Cardinal晶振 | CSM1 | MHz Crystal | 6.144MHz |
| CSM1Z-A5B2C3-40-27.0D18-F | Cardinal晶振 | CSM1 | MHz Crystal | 27MHz |
| CSM1Z-A5B2C3-120-7.3728D18 | Cardinal晶振 | CSM1 | MHz Crystal | 7.3728MHz |
| CSM1Z-A0B2C3-50-28.63636D18 | Cardinal晶振 | CSM1 | MHz Crystal | 28.63636MHz |
| CSM1Z-A5B2C3-60-9.216D18 | Cardinal晶振 | CSM1 | MHz Crystal | 9.216MHz |
| CSM1Z-A5B2C3-120-6.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 6MHz |
| CSM1Z-A5B2C5-120-7.3728D18 | Cardinal晶振 | CSM1 | MHz Crystal | 7.3728MHz |
| CSM1Z-A5B2C3-40-18.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 18MHz |
