具有差异化的FA-20H石英无源晶振编码Q24FA20H0004700

具有差异化的FA-20H石英无源晶振编码Q24FA20H0004700，当我们徜徉在电子产品带来的便利与舒适感时，值得我们细细探究，并探索家电产品的构成部分，也许你会觉得很有意义，或许你会觉得不毫无新意，但是生活在这个处处便利的世界里，石英晶振产品迎来巨大的变革，从最初的大体积到如今的小型化，经过多年科研成果，取得如今的成就，实属惊奇。在实现家电产品的小型化设计付出多少心血，这是我们无法想象的过程。

产品编码	尺寸	Model	Frequency	CL Value	Freq.tol. @+25°C	Freq.tol./Temp.range	Temperature range
Q24FA20H0000100	2.5 x 2 x 0.55mm	FA-20H	18.000000 MHz	10 pF	+/-10 ppm	+/-20 ppm	-30 to +85 °C
Q24FA20H0000300	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm	+/-18 ppm	-20 to +70 °C
Q24FA20H0000500	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	9 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0000600	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +70 °C
Q24FA20H0000800	2.5 x 2 x 0.55mm	FA-20H	48.000000 MHz	7 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q24FA20H0002900	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	8 pF	+/-10 ppm	+/-15 ppm	-20 to +75 °C
Q24FA20H0003100	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm	+/-15 ppm	-20 to +75 °C
Q24FA20H0003600	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	11.5 pF	+/-10 ppm	+/-15 ppm	-20 to +75 °C
Q24FA20H0003800	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +70 °C
Q24FA20H0003900	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	9 pF	-9/+11 ppm	-10/+8 ppm	-20 to +75 °C
Q24FA20H0004400	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-10 ppm	+/-12 ppm	-20 to +75 °C

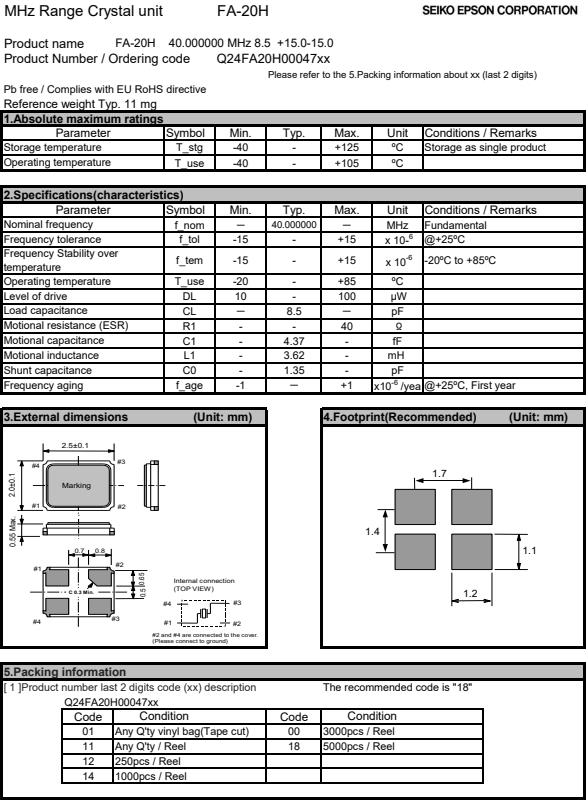

Q24FA20H0004700	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	8.5 pF	+/-15 ppm	+/-15 ppm	-20 to +85 °C
Q24FA20H0005000	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	16 pF	+/-10 ppm	+/-25 ppm	-40 to +85 °C
Q24FA20H0005100	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-15 to +75 °C
Q24FA20H0005200	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0005300	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-20 ppm	+/-20 ppm	-20 to +70 °C
Q24FA20H0005400	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	12 pF	+/-30 ppm	+/-30 ppm	-20 to +75 °C
Q24FA20H0005900	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	6 pF	+/-10 ppm	+/-12 ppm	-20 to +75 °C
Q24FA20H0006600	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-30 ppm	+/-30 ppm	-20 to +75 °C
Q24FA20H0006900	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	10 pF	+/-10 ppm	+/-15 ppm	-30 to +85 °C

如今的2520mm、2016mm、1612mm等小体积SMD晶振成为了他们的福音.虽然近年来中国大陆技台湾地区的石英晶体振荡器厂商的崛起,但是技术长没有起步较早的日本深厚.目前晶振产品在技术开发上的主要趋势体现在更高的基频、更好的相位噪声和相位抖动参数等指标,日本爱普生晶振利用自身的优势推出了新一代的石英晶体谐振器产品FA-20H系列,从而实现对市场供应的快速响应.龙湖做为EPSON代理商,积极配合新品的推出免费为客户提供样品和选型技术指导.

具有差异化的FA-20H石英无源晶振编码Q24FA20H0004700，爱普生公司从默默无闻的小公司到如今的大规模上市知名企业,一路成长用尽所有心力,才有如今这么伟大的成就,一路成长中所遇到的困难与挫折无数,依然以顽强的成长力努力向上生长,同时在研发产品上,优先考虑到石英晶体谐振器产品性能的差异化,差异化的FA-20H晶振，并以小巧的外形,强大的性能,秒杀市场企业的产品,其最大的核心竞争力在于产品的独特创新能力,高度的创新,使得其在这个变动极少的晶体行业中,成为最为稀缺的能力之一。

爱普生晶振产品编码	尺寸	Model	Frequency	CL Value	Freq.tol. @+25°C	Freq.tol./Temp.range	Temperature range
Q24FA20H0007000	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	8 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0007300	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0007400	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10.5 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0007700	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0007900	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	16 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0008500	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0008600	2.5 x 2 x 0.55mm	FA-20H	24.576000 MHz	8 pF	+/-15 ppm	+/-15 ppm	-20 to +75 °C
Q24FA20H0008700	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +70 °C
Q24FA20H0009200	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
Q24FA20H0009300	2.5 x 2 x 0.55mm	FA-20H	12.000000 MHz	10 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C
Q24FA20H0009500	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	7 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0009700	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0010000	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	20 pF	+/-20 ppm	+/-20 ppm	-20 to +75 °C
Q24FA20H0010600	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0011400	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	10 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
Q24FA20H0011500	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	8 pF	+/-30 ppm	+/-30 ppm	-20 to +75 °C
Q24FA20H0011600	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	18 pF	+/-30 ppm	+/-30 ppm	-30 to +85 °C
Q24FA20H0011800	2.5 x 2 x 0.55mm	FA-20H	27.120000 MHz	18 pF	+/-10 ppm	+/-20 ppm	-20 to +70 °C
Q24FA20H0012200	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-10 ppm	+/-22 ppm	-40 to +85 °C
Q24FA20H0012600	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	15 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C

爱普生公司推出的FA-20H晶振，编码Q24FA20H0004700，这是一款高可靠性能的SMD晶振，无源晶振，频率范围:12mhz ~ 54mhz，外形尺寸:2.5× 2.0×0.55 mm，泛音顺序:基本音，应用领域:手机，蓝牙，无线局域网，ISM波段收音机，MPU时钟.
