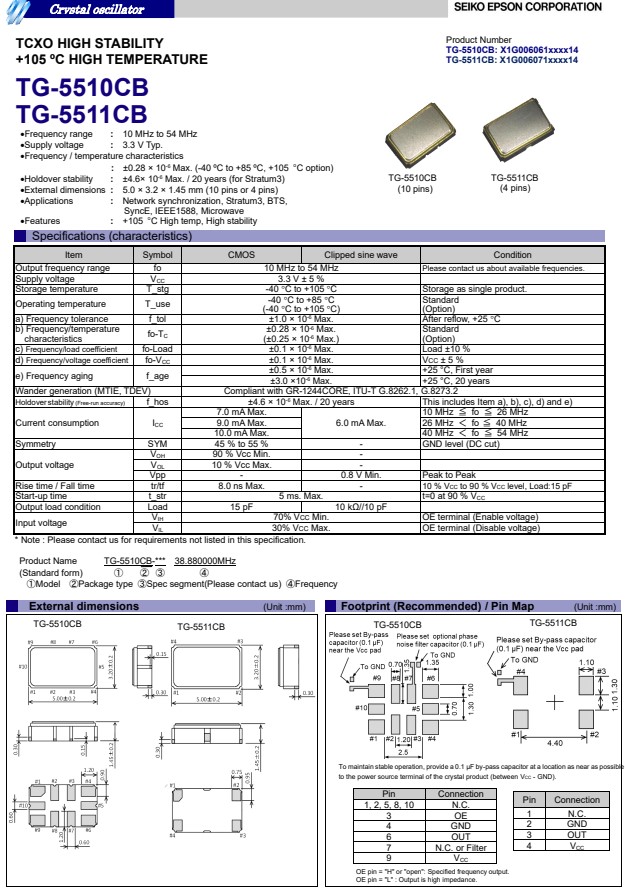

TG-5510CB有源晶振X1G006061009514投影仪专用TCXO温补晶振，日本知名频率元器件制造商爱普生公司，成立至今已有几十年的发展，通过持续放大自身的影响力，并且能够快速针对市场的需求，开发众多优质的晶振产品线，所生产出来的产品符合用户的需求，又经过严格化高标准高要求的生产体系制造而成，同时又保障每一款产品的质量以及性能,主要生产产品有石英晶振，有源晶振，石英晶体振荡器等元器件。
  Product Number00
|
  爱普生温补晶振
|
  Frequency
|
  LxWxH
|
  Supply Voltage
|
  F.Tol@25°C
|
  Ope Temperature
|
  Freq/Temp
|
| X1G006061007614 | TG-5510CB | 30.720000 MHz | 5.00 x 3.20 x 1.50 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C | +/-0.28 ppm |
| X1G006061008214 | TG-5510CB | 38.400000 MHz | 5.00 x 3.20 x 1.50 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C | +/-0.28 ppm |
| X1G006061009014 | TG-5510CB | 25.000000 MHz | 5.00 x 3.20 x 1.50 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C | +/-0.28 ppm |
| X1G006061009214 | TG-5510CB | 25.600000 MHz | 5.00 x 3.20 x 1.50 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C | +/-0.28 ppm |
| X1G006061009414 | TG-5510CB | 12.800000 MHz | 5.00 x 3.20 x 1.50 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C | +/-0.28 ppm |
| X1G006061009514 | TG-5510CB | 20.000000 MHz | 5.00 x 3.20 x 1.50 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C | +/-0.28 ppm |
| X1G006061009714 | TG-5510CB | 50.000000 MHz | 5.00 x 3.20 x 1.50 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C | +/-0.28 ppm |
| X1G006061009814 | TG-5510CB | 10.000000 MHz | 5.00 x 3.20 x 1.50 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C | +/-0.28 ppm |
 X1G005241000200
|
 TG5032SGN
|
 19.200000 MHz
|
 5.00 x 3.20 x 1.45 mm
|
 3.135 to 3.465 V
|
 +/-1.0 ppm
|
 -40 to ++85 °C
|
 +/-0.10 ppm
|
| X1G005241000300 | TG5032SGN | 25.000000 MHz | 5.00 x 3.20 x 1.45 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C | +/-0.10 ppm |
| X1G005241000400 | TG5032SGN | 40.000000 MHz | 5.00 x 3.20 x 1.45 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C | +/-0.10 ppm |
| X1G005241000700 | TG5032SGN | 10.000000 MHz | 5.00 x 3.20 x 1.45 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C | +/-0.10 ppm |
TG-5510CB有源晶振X1G006061009514投影仪专用TCXO温补晶振，爱普生贴片式石英晶体振荡器,低电压启动功率,并且有多种电压供选择,比如有1.8V,2.5V,3.3V,3.8V,5V等,产品被广泛应用于,平板笔记本,GPS系统,光纤通道,千兆以太网,串行ATA,串行连接SCSI,PCI-Express的SDH / SONET发射基站等领域.符合RoHS/无铅.
