低相位的电子门控制器专用有源晶振X1G005601002600，伟大的爱普生公司从名不经传的小型公司到如今的闻名企业，这一路上与困难作斗争的过程是我们无法想象的，只有当经过无数的困难仍然能够坚持初心，那份美好的初心才是我们追崇的力量源泉，爱普生推出的石英晶振广受市场的欢迎，同时也赢得广大用户的称赞。

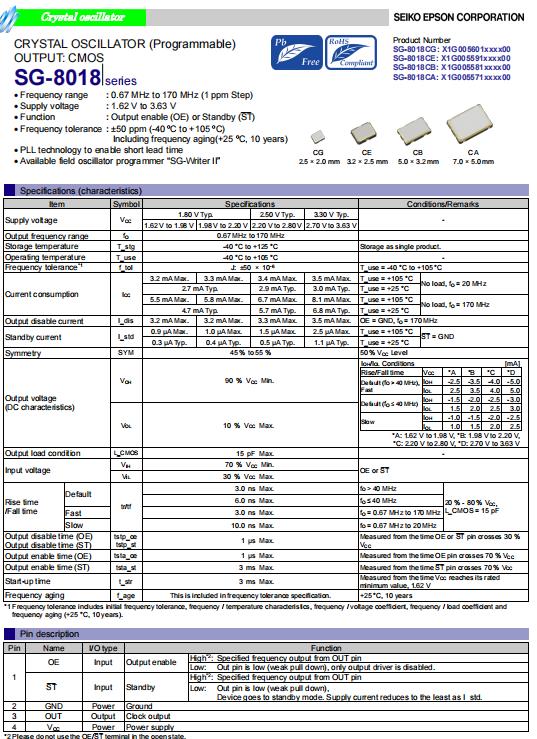

日本爱普生晶振公司推出了SG-8018CG晶振，编码X1G005601002600，频率12.000000兆赫，输出WaveCMOS，电源电压1.62 ~ 3.63 V，尺寸(LxWxH)2.50 x 2.00 x 0.80 mm，工作温度-40至+105°C，频率公差±50ppm，额外的OptionsN /OSC类型可编程时钟OSC，这是 一款CMOS输出有源晶振，石英晶体振荡器，具有良好的稳定性能，十分适合用于电子门控制器，北斗导航，智能家居，电子数码等行业。
 Product Number
|
 Model
|
 Frequency
|
 OSC晶振 |
 Output Wave
|
 Supply Voltage
|
 Ope Temperature
|
 Freq. Tol.
|
| X1G005601002500 | SG-8018CG | 12.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601002600 | SG-8018CG | 12.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601002700 | SG-8018CG | 10.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601002800 | SG-8018CG | 10.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601002900 | SG-8018CG | 27.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003000 | SG-8018CG | 27.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003100 | SG-8018CG | 32.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003200 | SG-8018CG | 32.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003300 | SG-8018CG | 8.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003400 | SG-8018CG | 8.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003500 | SG-8018CG | 14.745600 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003600 | SG-8018CG | 14.745600 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003700 | SG-8018CG | 12.288000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003800 | SG-8018CG | 12.288000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003900 | SG-8018CG | 33.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601004000 | SG-8018CG | 33.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601004100 | SG-8018CG | 30.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601004200 | SG-8018CG | 30.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601004300 | SG-8018CG | 26.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601004400 | SG-8018CG | 26.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601004500 | SG-8018CG | 24.576000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601004600 | SG-8018CG | 24.576000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
