爱普生专注于高品质的SMD石英晶体振荡器X1G005581002600,爱普生集团为日系五大知名品牌晶振公司，这是一家有着悠久发展历程的制造商，一直坚持把最好的品质留给用户，通过富有创新和创造力的文化,提升企业价值,致力于为客户提供数码影像创新技术和解决方案.爱普生拓优科梦是一家专业从事晶体元件的厂商,爱普生拓优科梦（Epson — yocom）运用长年积累的培育人工石英晶振以及以加工为代表的、实现精微化、高精度、高品质的综合技术,提出“3D战略”究极应用石英特性而制造的三大元器件:定时元器件、传感元器件、光学元器件,并创出将其复合而成的模块,为成为不可缺少的企业而迈进至今.
             Product Number
|
 进口晶振型号 |
 Frequency
|
 LxWxH
|
 Output Wave
|
 Supply Voltage
|
 Ope Temperature
|
 Freq. Tol.
|
| X1G005581001200 | SG-8018CB | 25.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581001300 | SG-8018CB | 20.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581001400 | SG-8018CB | 20.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581001500 | SG-8018CB | 50.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581001600 | SG-8018CB | 50.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581001700 | SG-8018CB | 48.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581001800 | SG-8018CB | 48.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581001900 | SG-8018CB | 24.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581002000 | SG-8018CB | 24.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581002100 | SG-8018CB | 40.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581002200 | SG-8018CB | 40.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581002300 | SG-8018CB | 16.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581002400 | SG-8018CB | 16.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581002500 | SG-8018CB | 12.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581002600 | SG-8018CB | 12.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581002700 | SG-8018CB | 10.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581002800 | SG-8018CB | 10.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581002900 | SG-8018CB | 27.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581003000 | SG-8018CB | 27.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581003100 | SG-8018CB | 32.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581003200 | SG-8018CB | 32.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581003300 | SG-8018CB | 8.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005581003400 | SG-8018CB | 8.000000 MHz | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
爱普生专注于高品质的SMD石英晶体振荡器X1G005581002600,,伴随信息化社会的进程,现在石英元器件已被广泛应用于各种电子设备以及家电产品之中,日趋重要. 爱普生晶振将进一步究极用精微加工发挥“石英”材料的优越性能的“QMEMS”技术,创造出更小、更高性能或全新功能的元器件;同时,融合爱普生集团的半导体与软件技术增添便于使用、能让顾客更体验到利用价值的“解决方案”.通过上述工作,我们将为社会的发展以及实现更舒畅的未来而竭诚奉献.

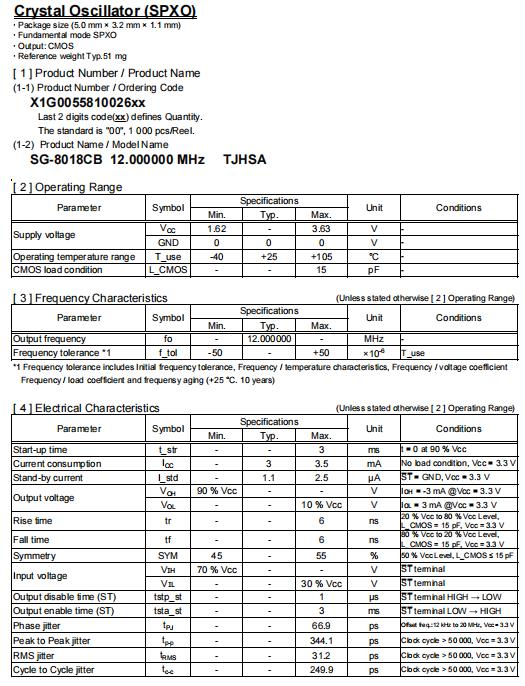

爱普生公司发布的SG-8018CB晶振，石英晶体振荡器 编码X1G005581002600，频率12.000000兆赫，输出WaveCMOS，供电电压1.62至3.63 V，尺寸(长×宽×高)5.00 × 3.20 × 1.30毫米，工作温度-40到+105°C，频率公差±50ppm，额外的OptionsN /OSC TypeProgrammable Clock时钟OSC，这是一款微型高质量，低损耗的石英晶体振荡器,广泛使用于通信设备，电子数码产品。
