用于空调温度控制器晶振应用32.768K晶振X1G005571006100，爱普生公司作为日系晶振品牌公司，拥有专业化的专业知识，以及一流的服务，致力于帮助用户解决在晶体行业所遇到的问题，并提供高质量，低损耗的有源晶振产品。在帮助他人的同时优化自我，完善自我，使得爱普生公司能够在这个激烈的市场中找到自身的价值和定位。
                                                                         Product Number
|
  Model
|
Frequency |
 LxWxH
|
 Output Wave
|
 Supply Voltage
|
 Ope Temperature
|
| X1G005571005200 | SG-8018CA | 66.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571005300 | SG-8018CA | 19.660800 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571005400 | SG-8018CA | 19.660800 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571005500 | SG-8018CA | 125.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571005600 | SG-8018CA | 125.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571005700 | SG-8018CA | 33.333300 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571005800 | SG-8018CA | 33.333300 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571005900 | SG-8018CA | 70.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006000 | SG-8018CA | 2.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006100 | SG-8018CA | 32.768K晶振 | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006200 | SG-8018CA | 41.439990 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006300 | SG-8018CA | 47.185920 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006400 | SG-8018CA | 66.666600 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006500 | SG-8018CA | 133.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006600 | SG-8018CA | 33.177600 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006700 | SG-8018CA | 32.768000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006800 | SG-8018CA | 2.457600 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006900 | SG-8018CA | 1.843200 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007000 | SG-8018CA | 3.686400 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |

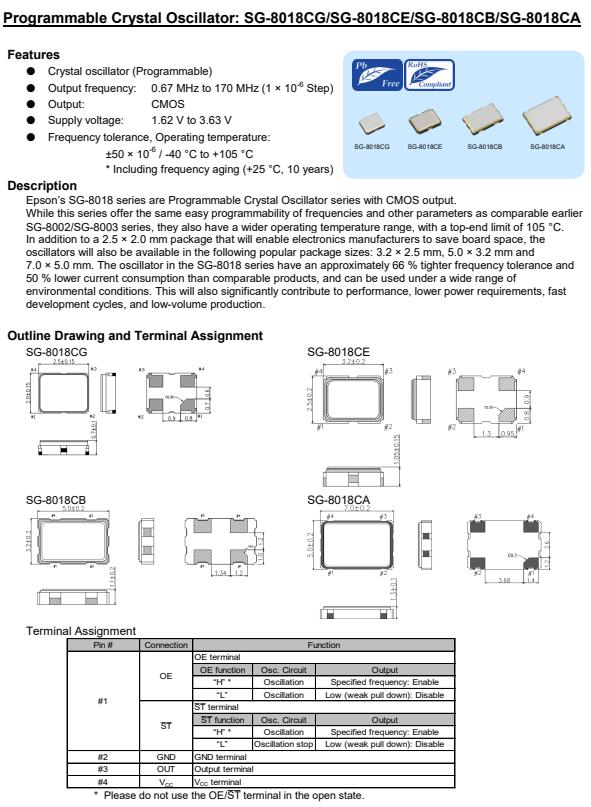

爱普生的SG-8018系列是可编程晶体振荡器系列CMOS输出。OSC晶振编码X1G005571006100，这个系列提供了频率和其他参数的可编程性SG-8002/SG-8003系列，它们也具有更广泛的工作温度范围，最高极限为105°C。尺寸7.0 × 5.0 mm。具备低损耗，低抖动，高品质之特点，非常适合用于空调温度控制器晶振应用。SG-8018系列振荡器的频率容忍度约为66%比同类产品低50%的电流消耗，适用范围广环境条件。这也将大大有助于性能，更低的功率要求，快速开发周期和低量生产。
用于空调温度控制器晶振应用32.768K晶振X1G005571006100，晶体振荡器的主要特性之一是工作温度内的稳定性，它是决定振荡器价格的重要因素。稳定性愈高或温度范围愈宽，器件的价格亦愈高。工业级标准规定的-40～+75℃这个范围往往只是出于设计者们的习惯，倘若-30～+70℃已经够用，那么就不必去追求更宽的温度范围。设计工程师要慎密决定特定应用的实际需要，然后规定振荡器的稳定度。指标过高意味着花钱愈多。晶体老化是造成频率变化的又一重要因素。
|
Product Number
|
Model
|
Frequency |
LxWxH
|
Output Wave
|
Supply Voltage
|
Ope Temperature
|
| X1G005571007100 | SG-8018CA | 78.643200 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007200 | SG-8018CA | 22.222200 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007300 | SG-8018CA | 57.143000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007400 | SG-8018CA | 12.272700 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007500 | SG-8018CA | 27.833300 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007600 | SG-8018CA | 6.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007700 | SG-8018CA | 25.000750 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007800 | SG-8018CA | 16.500000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007900 | SG-8018CA | 80.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008000 | SG-8018CA | 16.128000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008100 | SG-8018CA | 58.982400 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008200 | SG-8018CA | 58.982400 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008300 | SG-8018CA | 29.491200 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008400 | SG-8018CA | 20.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008500 | SG-8018CA | 10.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008600 | SG-8018CA | 15.200000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008700 | SG-8018CA | 16.384000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008800 | SG-8018CA | 61.440000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008900 | SG-8018CA | 4.915200 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571009000 | SG-8018CA | 19.660800 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
