26M温补晶振X1G005241000800十分适合蓝牙灯控模块，爱普生公司成立至今，一直以来秉持着诚信经验为核心价值观开展业务，并以承诺,和创新为主旨。作为一个致力于帮助广大用户解决在晶体行业所遇到的问题，同时有着多元化的进口晶振产品线，并提供各式各样的服务，所生产出来的产品性能优越，价格低廉的产品，通过持续成长，不断优化自身的产品，以高于用户的需求为目标。
                                                                                     Product Number
|
 EPSON晶振 |
 Frequency
|
 LxWxH
|
 Output Wave
|
 Supply Voltage
|
 F.Tol@25°C
|
 Ope Temperature
|
| X1G006021000314 | TG5032CKN | 50.000000 MHz | 5.00 x 3.20 x 1.50 mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C |
    X1G006061004514
|
 TG-5510CB
|
 25.000000 MHz
|
 5.00 x 3.20 x 1.50 mm
|
 CMOS
|
 3.135 to 3.465 V
|
 +/-1.0 ppm
|
 -40 to +105 °C
|
| X1G006061004814 | TG-5510CB | 50.000000 MHz | 5.00 x 3.20 x 1.50 mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +105 °C |
| X1G006061007614 | TG-5510CB | 30.720000 MHz | 5.00 x 3.20 x 1.50 mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C |
| X1G006061008214 | TG-5510CB | 38.400000 MHz | 5.00 x 3.20 x 1.50 mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C |
| X1G006061009014 | TG-5510CB | 25.000000 MHz | 5.00 x 3.20 x 1.50 mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C |
| X1G006061009214 | TG-5510CB | 25.600000 MHz | 5.00 x 3.20 x 1.50 mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C |
| X1G006061009414 | TG-5510CB | 12.800000 MHz | 5.00 x 3.20 x 1.50 mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C |
| X1G006061009514 | TG-5510CB | 20.000000 MHz | 5.00 x 3.20 x 1.50 mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C |
| X1G006061009714 | TG-5510CB | 50.000000 MHz | 5.00 x 3.20 x 1.50 mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C |
| X1G006061009814 | TG-5510CB | 10.000000 MHz | 5.00 x 3.20 x 1.50 mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C |
 X1G005241000200
|
 TG5032SGN
|
 19.200000 MHz
|
 5.00 x 3.20 x 1.45 mm
|
 Clipped sine wave
|
 3.135 to 3.465 V
|
 +/-1.0 ppm
|
 -40 to ++85 °C
|
| X1G005241000300 | TG5032SGN | 25.000000 MHz | 5.00 x 3.20 x 1.45 mm | Clipped sine wave | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G005241000400 | TG5032SGN | 40.000000 MHz | 5.00 x 3.20 x 1.45 mm | Clipped sine wave | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G005241000700 | TG5032SGN | 10.000000 MHz | 5.00 x 3.20 x 1.45 mm | Clipped sine wave | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G005241000800 | TG5032SGN | 26.000000 MHz | 5.00 x 3.20 x 1.45 mm | Clipped sine wave | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G005241000900 | TG5032SGN | 19.200000 MHz | 5.00 x 3.20 x 1.45 mm | Clipped sine wave | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G005241001000 | TG5032SGN | 19.200000 MHz | 5.00 x 3.20 x 1.45 mm | Clipped sine wave | 2.700 to 3.000 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G005241001200 | TG5032SGN | 19.200000 MHz | 5.00 x 3.20 x 1.45 mm | Clipped sine wave | 2.700 to 3.000 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G005241001300 | TG5032SGN | 40.000000 MHz | 5.00 x 3.20 x 1.45 mm | Clipped sine wave | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |

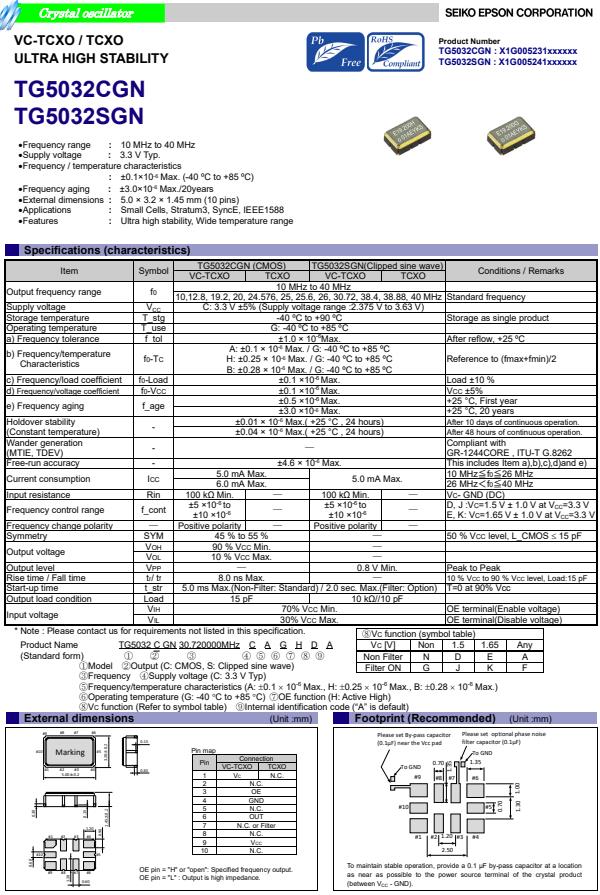

爱普生晶振推出这款TG5032SGN，TCXO晶振编码X1G005241000800，频率26.000000兆赫，输出剪波正弦波，电源电压3.13 ~ 3.46 V，电源电压(一般)3.300 V，尺寸(LxWxH)5.0 x 3.2 x 1.4 mm，操作温度-40至++85°C，频率公差+/- 1.0 ppm，具有良好的耐压性能，非常适合于蓝牙灯控模块，医疗设备，无线模块，仪器设备等领域。
