X1G004801007700是一款低电压的智能家居SPXO振荡器，爱普生公司是一家具备多元化的制造商，公司自成立以来一直秉持着专业，诚信的经营理念，致力于帮助全球用户解决在晶体行业所遇到的问题，以此实现自我的价值，并打造专业化的技术团队以及一流的服务团队，开发出优质的日系晶振.

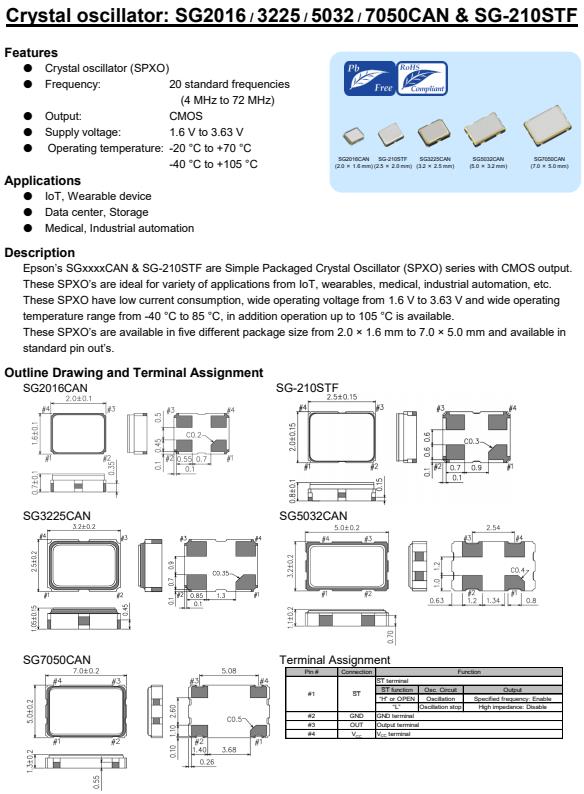

爱普生很高兴宣布推出了SG2016CAN晶振，编码X1G004801007700，频率26.000000兆赫，输出WaveCMOS，电源电压1.60 ~ 3.63 V，尺寸(LxWxH)2.00 x 1.60 x 0.70 mm，操作温度-20至+70°C，频率公差±25ppm，额外OptionsN /OSC TypeClock OSC，这是一款高精度，低抖动的SPXO振荡器，很适合用于智能交通灯控制器，电子数码，智能家居等领域，这些SPXO具有低电流消耗，宽工作电压从1.6 V到3.63 V和宽工作范围，温度范围从-40°C到85°C，此外可操作高达105°C。这些SPXO有五种不同的包装尺寸，从2.0 × 1.6毫米到7.0 × 5.0毫米，可在标准针的。
 Product Number
|
 Model
|
 爱普生晶振 |
 LxWxH
|
 Output Wave
|
 Supply Voltage
|
 Ope Temperature
|
 Freq. Tol.
|
| X1G004801006800 | SG2016CAN | 48.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -20 to 70 °C | +/-25 ppm |
| X1G004801006900 | SG2016CAN | 48.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G004801007000 | SG2016CAN | 50.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -20 to 70 °C | +/-25 ppm |
| X1G004801007100 | SG2016CAN | 72.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.710 to 3.630 V | -20 to 70 °C | +/-25 ppm |
| X1G004801007200 | SG2016CAN | 72.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.710 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004801007300 | SG2016CAN | 72.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 2.250 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G004801007600 | SG2016CAN | 32.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -20 to 70 °C | +/-25 ppm |
| X1G004801007700 | SG2016CAN | 26.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -20 to 70 °C | +/-25 ppm |
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                   Product Number
|
 Model
|
 Frequency
|
 LxWxH
|
 Output Wave
|
 Supply Voltage
|
 Ope Temperature
|
 Freq. Tol.
|
| X1G005221000100 | SG3225EEN | 100.000000 MHz | 3.20 x 2.50 x 1.20 mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C | +/-25 ppm |
| X1G005221000200 | SG3225EEN | 125.000000 MHz | 3.20 x 2.50 x 1.20 mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C | +/-25 ppm |
| X1G005221000300 | SG3225EEN | 125.003125 MHz | 3.20 x 2.50 x 1.20 mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C | +/-25 ppm |
| X1G005221000400 | SG3225EEN | 155.520000 MHz | 3.20 x 2.50 x 1.20 mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C | +/-25 ppm |
| X1G005221000500 | SG3225EEN | 156.250000 MHz | 3.20 x 2.50 x 1.20 mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C | +/-25 ppm |
| X1G005221000700 | SG3225EEN | 156.253906 MHz | 3.20 x 2.50 x 1.20 mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C | +/-25 ppm |
| X1G005221000800 | SG3225EEN | 156.250000 MHz | 3.20 x 2.50 x 1.20 mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C | +/-50 ppm |
| X1G005221001300 | SG3225EEN | 100.000000 MHz | 3.20 x 2.50 x 1.20 mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C | +/-100 ppm |
| X1G005221001400 | SG3225EEN | 200.000000 MHz | 3.20 x 2.50 x 1.20 mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C | +/-100 ppm |
| X1G005221001800 | SG3225EEN | 100.000000 MHz | 3.20 x 2.50 x 1.20 mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C | +/-50 ppm |
| X1G005221001900 | SG3225EEN | 50.000000 MHz | 3.20 x 2.50 x 1.20 mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C | +/-25 ppm |
| X1G005221002100 | SG3225EEN | 125.000000 MHz | 3.20 x 2.50 x 1.20 mm | LV-PECL | 3.135 to 3.465 V | -40 to 105 °C | +/-50 ppm |
