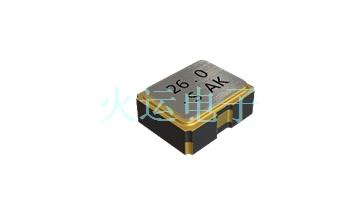

| Model | OSC02 | ||||
| Nominal frequency | 5~60.0MHz | ||||
| Storage temperature range | -55 ∼ +125 ℃ | ||||
| Operating temperature range | -40 ∼ +125 ℃ | ||||
| Frequency stability | ±25ppm / ±50ppm | ||||
| Frequency Temp. Characteristics | ±50 ppm @-40~+105 ℃,+25 ℃ as the reference | ||||
| Power supply voltage | 1.8V DC±10% | 2.5V DC±10% | 3.3V DC±10% | ||
| Current consumption | 2.5mA max@ ~20M | 5mA max@~20M | 6mA max@ ~20M | ||
| 5mA max@ ~54M | 8mA max@ ~54M | 9mA max@ ~54M | |||
| Output level | C-MOS | ||||
| Load | 15 pF. | ||||
| Output voltage level | VOL: 10%Vcc max. / VOH: 90%Vcc min. | ||||
| Rise & Fall time | 7ns max.@10%Vcc ~ 90%Vcc | ||||
| Duty cycle | 45%∼55％ at 50%Vcc | ||||
| Start-up time | 5ms max. | ||||
| Phase Jitter | 1.0ps max.@12KHz to 20MHz | ||||
