智能家居的首选既然是3225mm无源晶体?Q22FA23V0035816，经过几十年的沉淀，爱普生公司凭着生产大量优质的晶振产品，成功吸引广大用户的关注，并以高于用户的需求为目标，持续不断向市场供应优良的产品，同时致力于打造自身最硬核的竞争力，开发高性价比无源晶振非常适合当下市场的需求，能够满足各个行业的应用程序，并提供专业化的技术和一流的服务。

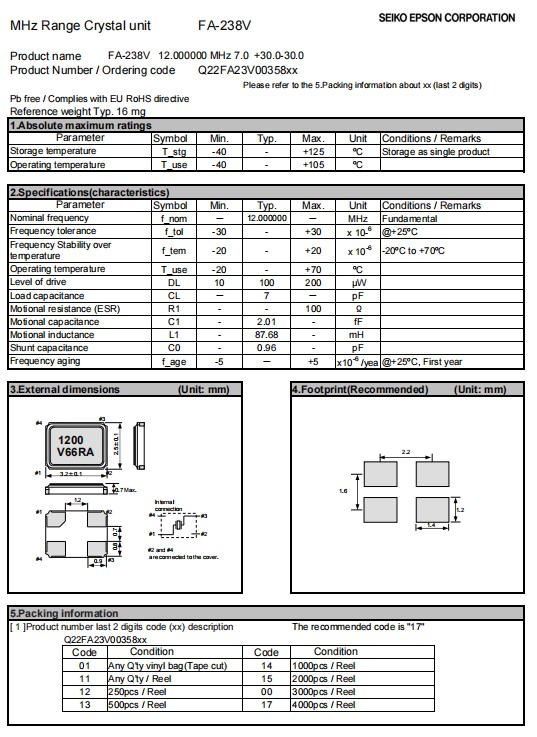

智能家居的首选既然是3225mm无源晶体?Q22FA23V0035816，日本进口爱普生晶振，FA-238V是一款超小型无源晶振，石英晶体谐振器，编码Q22FA23V0035816，频率12.000000兆赫，尺寸(LxWxH)3.2 x 2.5 x 0.7 mm，客户负载电容7pf，频率公差+ / -30 ppm，Fo / temp。特征公差+ / -20 ppm，温度范围-20至+70°C，具有低损耗，低耗能，耐热，耐压等特点，特别适用于仪器仪表，智能家居，数码电子等产品，产品性能卓越，品质有保障。
                                                                                                                                                               产品编码
|
 日本进口晶振 |
 型号
|
 频率
|
 负载
|
 Freq.tol. @+25°C
|
 Freq.tol./Temp.range
|
 Temperature range
|
 ESR [Max]
|
| Q22FA23V0030716 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 8 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C | ≤ 80 Ω |
| Q22FA23V0031016 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 20 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C | ≤ 80 Ω |
| Q22FA23V0031416 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 10 pF | +/-50 ppm | +/-50 ppm | -40 to +85 °C | ≤ 80 Ω |
| Q22FA23V0032616 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 12 pF | +/-10 ppm | +/-23 ppm | -40 to +85 °C | ≤ 80 Ω |
| Q22FA23V0032716 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 12 pF | +/-20 ppm | +/-23 ppm | -40 to +85 °C | ≤ 100 Ω |
| Q22FA23V0033216 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 18 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C | ≤ 80 Ω |
| Q22FA23V0035816 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 7 pF | +/-30 ppm | +/-20 ppm | -20 to +70 °C | ≤ 100 Ω |
| Q22FA23V0036716 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 9 pF | +/-50 ppm | +/-30 ppm | -20 to +75 °C | ≤ 80 Ω |
| Q22FA23V0037216 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 18 pF | +/-20 ppm | +/-30 ppm | -40 to +85 °C | ≤ 100 Ω |
| Q22FA23V0037316 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 16 pF | +/-50 ppm | +/-30 ppm | -40 to +85 °C | ≤ 80 Ω |
| Q22FA23V0037416 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.560000 MHz | 9 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C | ≤ 80 Ω |
| Q22FA23V0037516 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.800000 MHz | 15 pF | +/-10 ppm | +/-10 ppm | -20 to +70 °C | ≤ 100 Ω |
| Q22FA23V0037916 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.300000 MHz | 10 pF | +/-50 ppm | +/-50 ppm | -20 to +70 °C | ≤ 80 Ω |
| Q22FA23V0038016 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.993000 MHz | 10 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C | ≤ 100 Ω |
| Q22FA23V0038516 |
3225石英晶振 |
FA-238V | 12.800000 MHz | 15 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C | ≤ 100 Ω |
| Q22FA23V0039616 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 7 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C | ≤ 80 Ω |
| Q22FA23V0039716 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 12 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C | ≤ 80 Ω |
| Q22FA23V0040016 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 12 pF | +/-15 ppm | +/-15 ppm | -20 to +70 °C | ≤ 100 Ω |
| Q22FA23V0040116 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.500000 MHz | 10 pF | +/-15 ppm | +/-15 ppm | -20 to +70 °C | ≤ 80 Ω |
| Q22FA23V0041916 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 15 pF | +/-15 ppm | +/-30 ppm | -20 to +70 °C | ≤ 80 Ω |
