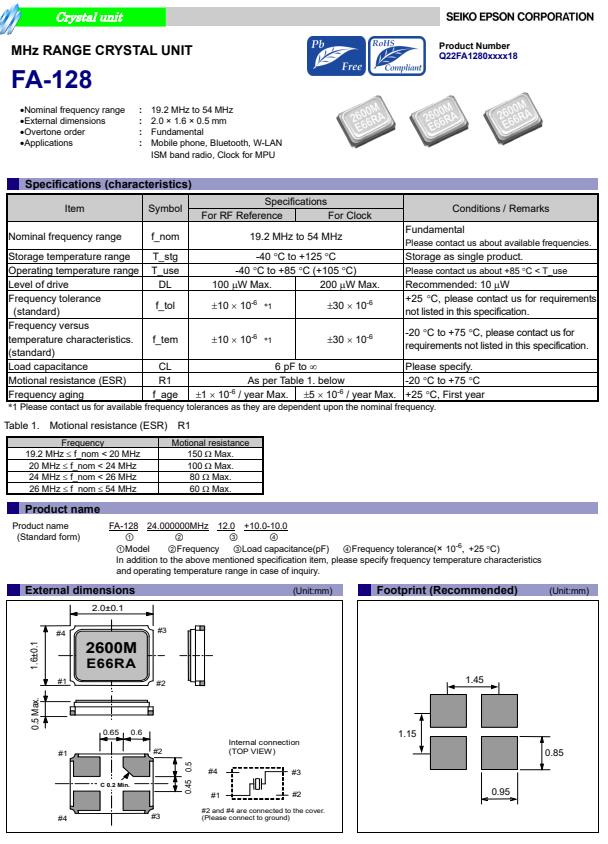

具有低损耗的爱普生无源晶振非常适合于MCU时钟Q22FA1280054100，爱普生公司成立至今已有几十年的发展历程，通过不断打磨晶振产品，以及快速的传播力量，使得其名气大涨，开发出了高性能的晶振产品线，经过高标准严格化的生产体系，研发这款FA-128晶振，编码Q22FA1280054100，频率20.000000兆赫，尺寸(LxWxH)2 × 1.6 × 0.5 mm，客户负载电容15pf，频率公差+ / -10 ppmFo / temp。特征公差+ / -10 ppm，温度范围-20至+75°C，无源贴片晶振，石英晶体谐振器具有高性能，低抖动的特点。
             Product Number
|
 EPSON晶振 |
 Model
|
 Frequency
|
 CL Value
|
 Freq.tol. @+25°C
|
| Q22FA1280050600 | 2 x 1.6 x 0.5mm | FA-128 | 38.400000 MHz | 12 pF | +/-10 ppm |
| Q22FA1280050700 | 2 x 1.6 x 0.5mm | FA-128 | 16.000000 MHz | 9 pF | +/-10 ppm |
| Q22FA1280051300 | 2 x 1.6 x 0.5mm | FA-128 | 16.000000 MHz | 10 pF | +/-30 ppm |
| Q22FA1280051400 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 12 pF | +/-10 ppm |
| Q22FA1280051700 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 6 pF | +/-10 ppm |
| Q22FA1280051900 | 2 x 1.6 x 0.5mm | FA-128 | 52.000000 MHz | 8 pF | +/-10 ppm |
| Q22FA1280052600 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 8.5 pF | +/-9 ppm |
| Q22FA1280052900 | 2 x 1.6 x 0.5mm | FA-128 | 16.000000 MHz | 6 pF | +/-10 ppm |
| Q22FA1280053000 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 10 pF | +/-10 ppm |
| Q22FA1280053100 | 2 x 1.6 x 0.5mm | FA-128 | 50.000000 MHz | 10 pF | +/-15 ppm |
| Q22FA1280053300 | 2 x 1.6 x 0.5mm | FA-128 | 24.576000 MHz | 20 pF | +/-15 ppm |
| Q22FA1280054100 | 2 x 1.6 x 0.5mm | FA-128 | 20.000000 MHz | 15 pF | +/-10 ppm |
| Q22FA1280054800 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 12 pF | +/-15 ppm |
| Q22FA1280055100 | 2 x 1.6 x 0.5mm | FA-128 | 27.120000 MHz | 6 pF | +/-30 ppm |
| Q22FA1280055200 | 2 x 1.6 x 0.5mm | FA-128 | 19.200000 MHz | 12 pF | +/-30 ppm |
| Q22FA1280055900 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 10 pF | +/-30 ppm |
| Q22FA1280056000 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 18 pF | +/-30 ppm |
| Q22FA1280056100 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 12 pF | +/-20 ppm |
| Q22FA1280056700 | 2 x 1.6 x 0.5mm | FA-128 | 27.120000 MHz | 8 pF | +/-15 ppm |
| Q22FA1280056900 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 8 pF | +/-10 ppm |
| Q22FA1280057000 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 10 pF | +/-10 ppm |
FA-128贴片晶振已被商业化，作为通信模块的参考时钟要求精度高，并作为时钟用于无线通信和微机的应用,需要小型化的设备(TWS(真无线立体声)、智能手表等)。使用多年培育的元素加工技术创造的产品做出了贡献改善客户系统的性能。应用程序用于消费和工业应用的小型通信模块,可穿戴设备,MCU时钟.
具有低损耗的爱普生无源晶振非常适合于MCU时钟Q22FA1280054100，爱普生晶振是全球技术领导者，致力于通过利用其高效、紧凑和精确的技术和数字技术来连接人、物和信息，共同创造可持续发展和丰富社区。该公司专注于通过家庭和办公室印刷、商业和工业印刷、制造、视觉和生活方式的创新来解决社会问题。
