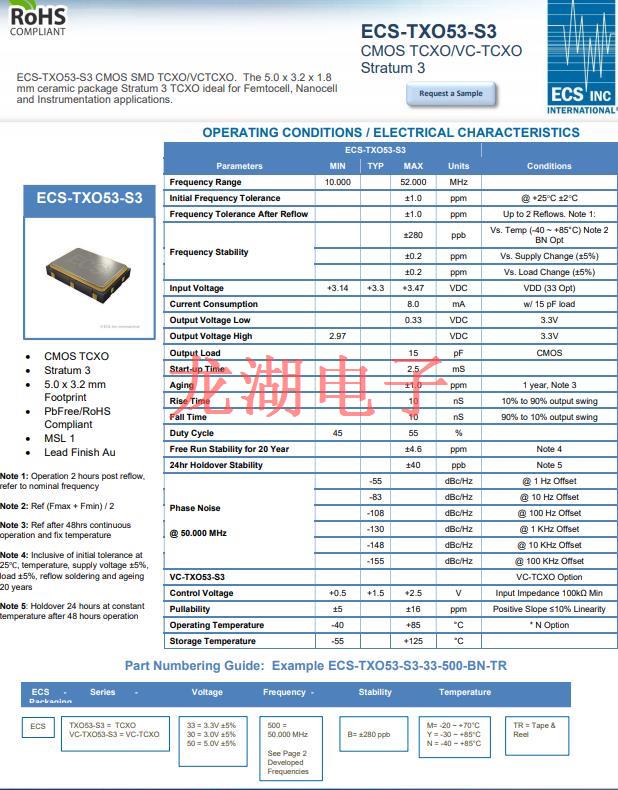

ECS Inc. International’s ECS-TXO53-S3 is a new series of surface mount stratum 3 temperature compensated crystal oscillators. This family of TCXOs comes in a 5.0 mm 3.2 mm x 1.80 mm multi-pad ceramic package that offers a frequency stability of ±280ppb over the standard industrial operating temperature range of -40ºC to +85ºC. With the HCMOS output, multi-pad configurations and standard frequencies between 10 MHz and 52 MHz, the ECS-TXO53-S3 provides excellent phase noise performance. Ideal for femtocell, nanocell and instrumentation applications.
完美适合纳米细胞的温补晶体振荡器ECS-TXO53-S3-33-500-BN-TR，ECS晶振国际公司的ECS-TXO53-S3是一种新型表面贴装三层温补晶体振荡器系列。该系列tcxo采用5.0 mm 3.2 mm x 1.80 mm多衬垫陶瓷封装，在-40ºC至+85ºC的标准工业工作温度范围内提供±280ppb的频率稳定性。凭借HCMOS输出，多衬垫配置和10 MHz至52 MHz之间的标准频率，ECS-TXO53-S3提供了出色的相位噪声性能。理想的家庭电池，纳米电池和仪器应用。
| Manufacturer Part Number原厂代码 | Manufacturer品牌 | Series型号 | Frequency 频率 | Operating Temperature 工作温度 |
| ECS-2333-080-BN-TR | ECS晶振 | ECS-2333 | 8MHz | -40°C ~ 85°C |
| ECS-2333-040-BN-TR | ECS晶振 | ECS-2333 | 4MHz | -40°C ~ 85°C |
| ECS-2333-040-BN-TR | ECS晶振 | ECS-2333 | 4MHz | -40°C ~ 85°C |
| ECS-2333-040-BN-TR | ECS晶振 | ECS-2333 | 4MHz | -40°C ~ 85°C |
| ECS-2333-120-BN-TR | ECS晶振 | ECS-2333 | 12MHz | -40°C ~ 85°C |
| ECS-2333-120-BN-TR | ECS晶振 | ECS-2333 | 12MHz | -40°C ~ 85°C |
| ECS-2333-120-BN-TR | ECS晶振 | ECS-2333 | 12MHz | -40°C ~ 85°C |
| ECS-3953M-200-B-TR | ECS晶振 | ECS-3953M | 20MHz | -10°C ~ 70°C |
| ECS-3953M-200-B-TR | ECS晶振 | ECS-3953M | 20MHz | -10°C ~ 70°C |
| ECS-3953M-200-B-TR | ECS晶振 | ECS-3953M | 20MHz | -10°C ~ 70°C |
| ECS-3953M-160-B-TR | ECS晶振 | ECS-3953M | 16MHz | -10°C ~ 70°C |
| ECS-3953M-160-B-TR | ECS晶振 | ECS-3953M | 16MHz | -10°C ~ 70°C |
| ECS-3953M-160-B-TR | ECS晶振 | ECS-3953M | 16MHz | -10°C ~ 70°C |
| ECS-3953M-018-B-TR | ECS晶振 | ECS-3953M | 1.8432MHz | -10°C ~ 70°C |
| ECS-3953M-018-B-TR | ECS晶振 | ECS-3953M | 1.8432MHz | -10°C ~ 70°C |
| ECS-3953M-018-B-TR | ECS温度补偿晶振 | ECS-3953M | 1.8432MHz | -10°C ~ 70°C |
| ECS-3953M-040-B-TR | ECS晶振 | ECS-3953M | 4MHz | -10°C ~ 70°C |
| ECS-3953M-040-B-TR | ECS晶振 | ECS-3953M | 4MHz | -10°C ~ 70°C |
| ECS-3953M-040-B-TR | ECS晶振 | ECS-3953M | 4MHz | -10°C ~ 70°C |
| ECS-3953M-036-B-TR | ECS晶振 | ECS-3953M | 3.6864MHz | -10°C ~ 70°C |
| ECS-3953M-036-B-TR | ECS晶振 | ECS-3953M | 3.6864MHz | -10°C ~ 70°C |
| ECS-3953M-036-B-TR | ECS晶振 | ECS-3953M | 3.6864MHz | -10°C ~ 70°C |
| ECS-3953M-120-B-TR | ECS晶振 | ECS-3953M | 12MHz | -10°C ~ 70°C |
| ECS-3953M-120-B-TR | ECS晶振 | ECS-3953M | 12MHz | -10°C ~ 70°C |
| Image | Part Number | Frequency | Frequency Stability | Operating Temperature | Datasheet | Inventory |
|
ECS-TXO53-S3-33-100-BN-TR | 10 MHz | ±280ppb | -40ºC ~ 85ºC |
|
|
|
|
ECS-TXO53-S3-33-200-BN-TR | 20 MHz | ±280ppb | -40ºC ~ 85ºC |
|
|
|
|
ECS-TXO53-S3-33-250-BN-TR | 25 MHz | ±280ppb | -40ºC ~ 85ºC |
|
|
|
|
ECS-TXO53-S3-33-400-BN-TR | 40 MHz | ±280ppb | -40ºC ~ 85ºC |
|
|
|
|
ECS-TXO53-S3-33-500-BN-TR | 50 MHz | ±280ppb | -40ºC ~ 85ºC |
|
|
特点：占地面积5.0mm x 3.2 mm x1.80mm，频率范围:10mhz~52mhz，±280ppb超温频率稳定性，标准工作温度范围-40ºC~ +85ºC，+3.3V电源电压，HCMOS输出层3，符合RoHS和REACH 3标准.5032mm的贴片型有源晶振Stratum 3 TCXO是Femtocell, nanocer的理想选择仪表应用。
完美适合纳米细胞的温补晶体振荡器ECS-TXO53-S3-33-500-BN-TR，ECS有源振荡器应用范围：毫微微蜂窝，纳米细胞，仪表，测试和测量，基站，SyncE，IP网络，全球定位系统(GPS)，点对点无线电，背负式无线电.
